Parameter Data Transfer Examples

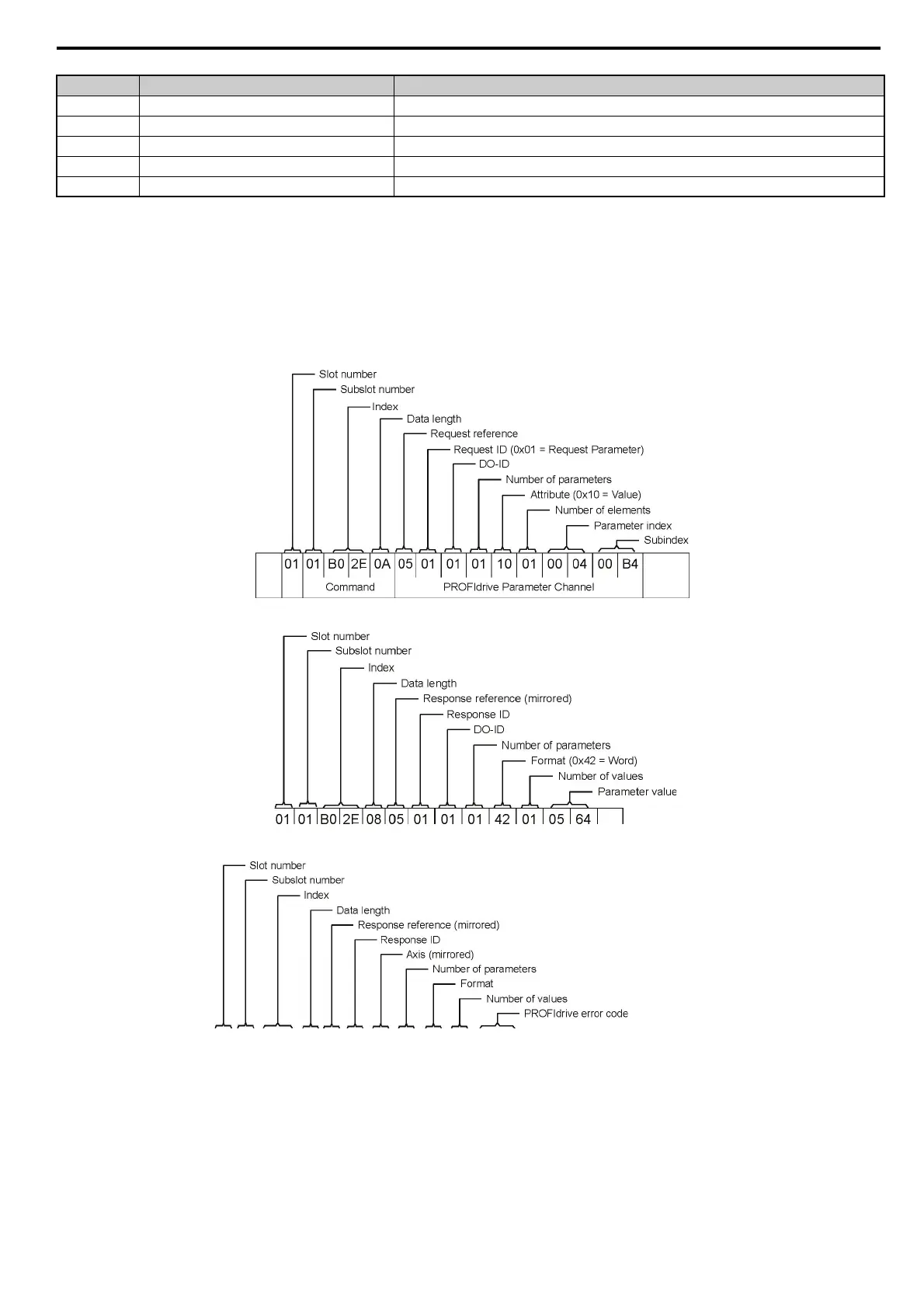

The following example shows how parameter data is transferred using the acyclic parameter access mechanism's READ
and WRITE.
Example 1: Reading a drive parameter
To read a Yaskawa Drive parameter, use the PNU of 1 and the actual address of the parameter in the SubIndex.
Write Request (Read Parameter Value)
Positive Read Response to Read Request
Negative Response to PROFIdrive Read Request
0x78 PZD map failure Parameter cannot be mapped to PZD (size mismatch or non-existent).
0x79 PZD memory failure Parameter cannot be mapped to PZD (out of memory).
0x7A Multiple PZD map Parameter cannot be mapped to PZD (multiple PZD write).
0x8C Set torque mode error Cannot change mode to TORQUE (frequency is used).
0x90 Illegal Request ID The request ID of the response is illegal.
Error # Meaning Used at
01 01 B0 2E 08 05 81 01 01 44 01 00 14
(44H = Error)
