EMC Installation Conditions
41

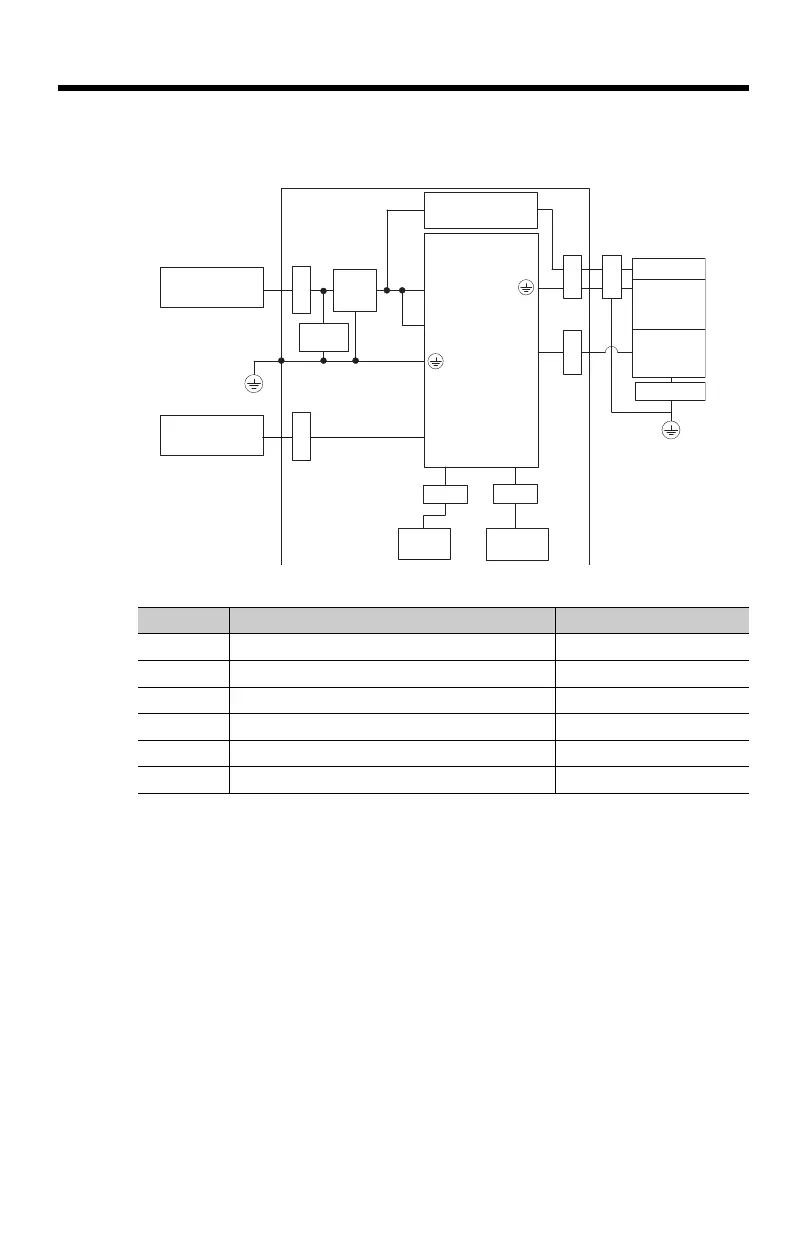

• Single-Phase, 100 VAC
CN1
CN2
L1C and L2C
CN6A and CN6B
L1 and L2
U, V, and W
Noise
filter
Surge
absorber
Clamp
Brake
Servomotor
Encoder
Brake power supply
SERVOPACK
Safety
function device
I/O
controller
PE
PE
Shield box
Power supply:
Single-phase, 100 VAC
ClampClamp
Clamp
Clamp Clamp
Clamp





Host controller
Clamp
CN8
Symbol Cable Name Specification
 I/O Signal Cable Shielded cable
 Safety Function Device Cable Shielded cable
 Servomotor Main Circuit Cable Shielded cable
 Encoder Cable Shielded cable
 Main Circuit Power Cable Shielded cable
 Ethernet Communications Cable Shielded cable
