YASKAWA SMG Series User Manual

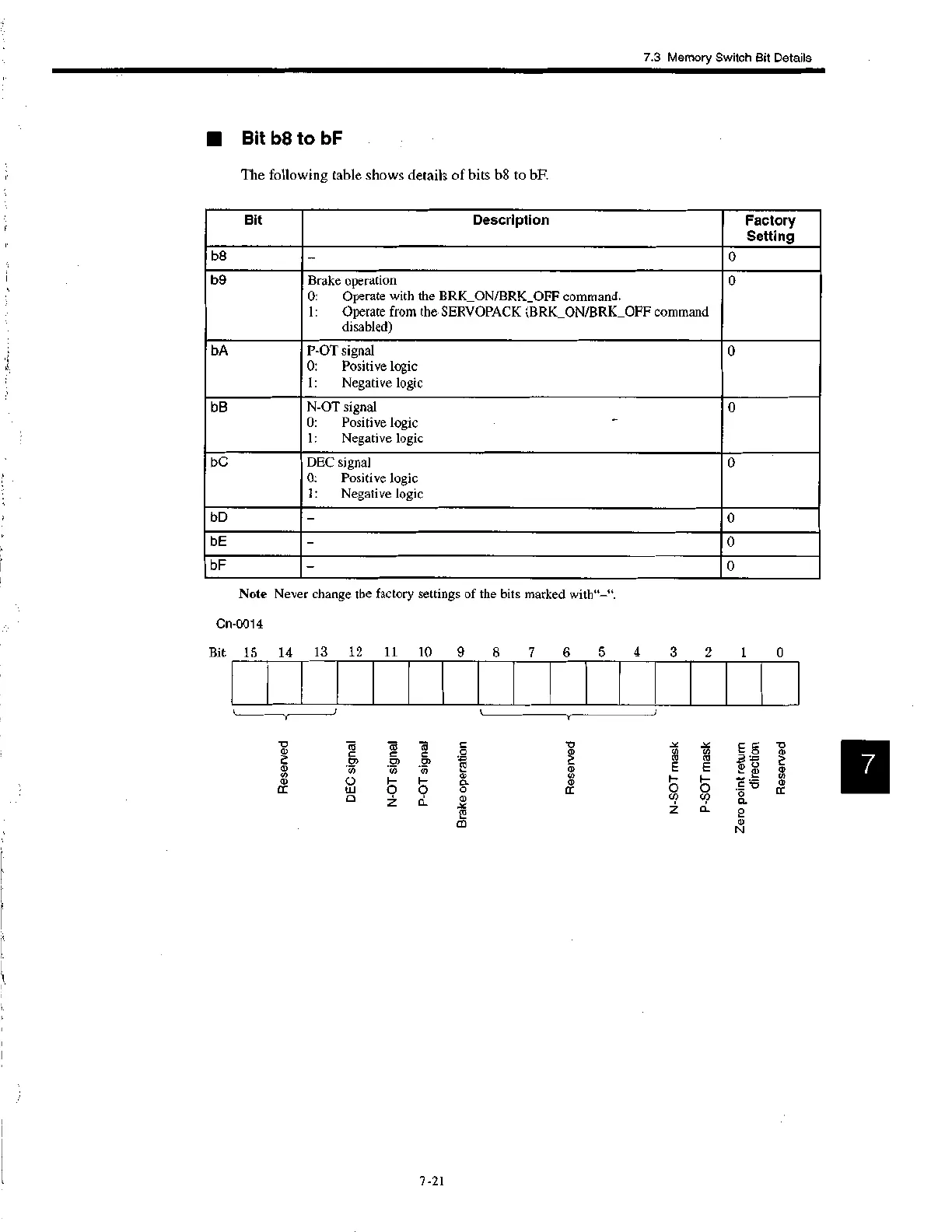

7.3 Memory Switch Bit Details
Bit Description Factory
Setting
b8 —
0
b9 Brake operation
0: Operate with the BRK_ON/BRK_OFF command.
1: Operate from the SERVOPACK (BRK_ON/BRK_OFF command
disabled)
0
bA P-OT signal
0: Positive logic
1: Negative logic
0
bB N-OT signal
0: Positive logic —
1: Negative logic
0
bC DEC signal
0: Positive logic
1: Negative logic
0
bD —
0
bE
0
bF —
0
• Bit b8 to bF
The following table shows details of bits b8 to bF.
Note Ncvcr change the factory settings of the bits marked with"—".
Cn-0014
Bit 15 14 13 12 11
10 9 8 7
6 5
4 3 2
1
0
D
c)
a)
co
a>
a a 76
c c c
ch 0) co
co 7 15 a
O I— I—
LL 0 0
O Z CL
Brake operation
-tp
Z
a)
cC
N-SOT mask
P -SOT mask
Co
T '8:13
0
C 0
a)
N
-a
a)
CL
7
