YASKAWA SMG Series User Manual

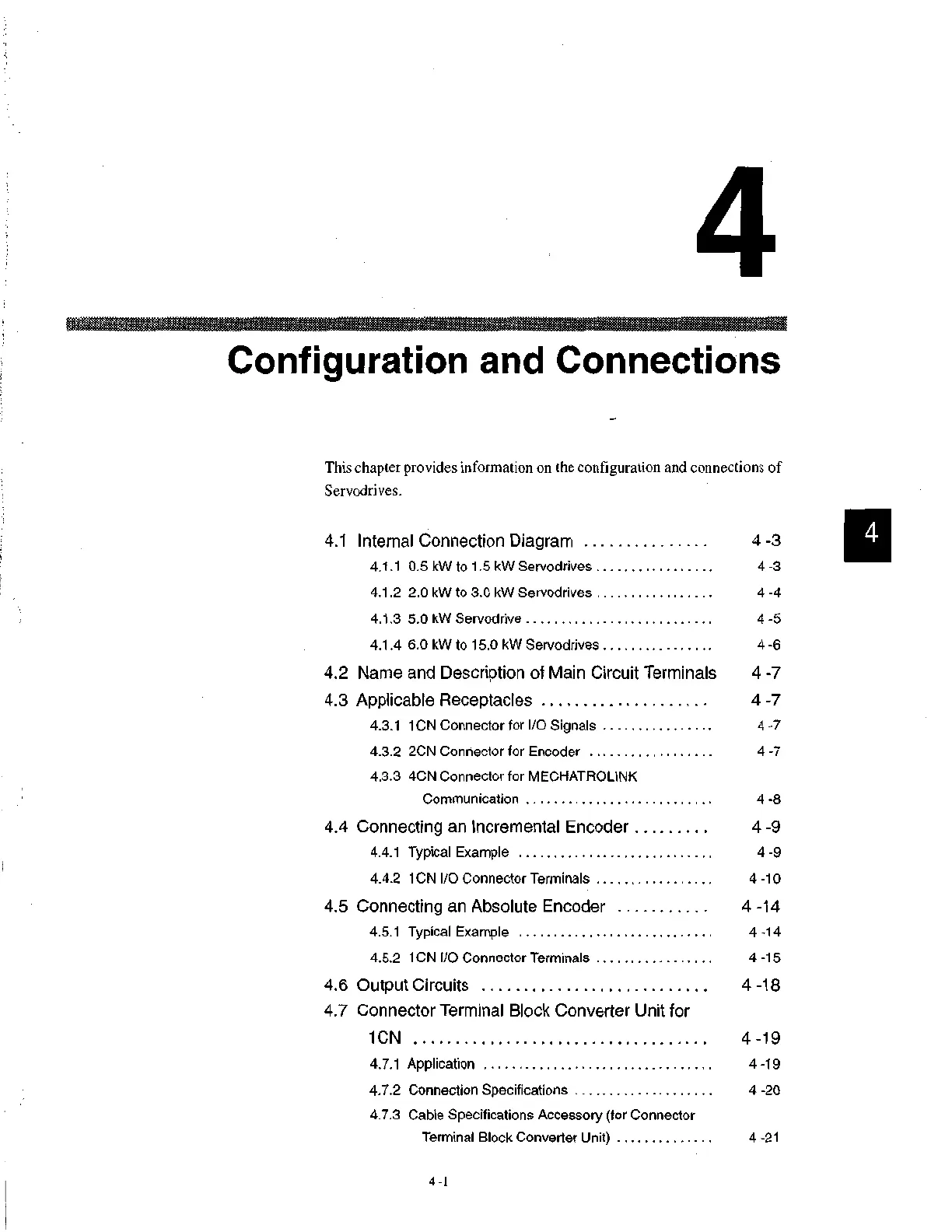

Configuration and Connections
4.1 Internal Connection Diagram
4
-3
4.1.1 0.5 kW to 1.5 kW Servodrives 4 -3
4.1.2 2.0 kW to 3.0 kW Servodrives 4 -4
4.1.3 5.0 kW Servodrive 4
-5
4.1.4 6.0 kW to 15.0 kW Servodrives
4 -6
4.2 Name and Description of Main Circuit Terminals
4 -7
4.3 Applicable Receptacles 4 -7
4.3.1 1CN Connector for I/O Signals 4 -7
4.3.2 2CN Connector for Encoder
4 -7
4.3.3 4CN Connector for MECHATROLINK
Communication 4 -8
4.4 Connecting an Incremental Encoder 4 -9
4.4.1 Typical Example
4 -9
4.4.2 1CN I/O Connector Terminals
4 -10
4.5 Connecting an Absolute Encoder
4 -14
4.5.1 Typical Example 4 -14
4.5.2 1CN I/O Connector Terminals
4 -15
4.6 Output Circuits
4 -18
4.7 Connector Terminal Block Converter Unit for
1CN
4 -19
4.7.1 Application
4 -19
4.7.2 Connection Specifications
4.7.3 Cable Specifications Accessory (for Connector
Te rm in al Block Converter Unit)
4
4
-20
-21
This chapter provides information on the configuration and connections of
Servodrives.
4 -1
