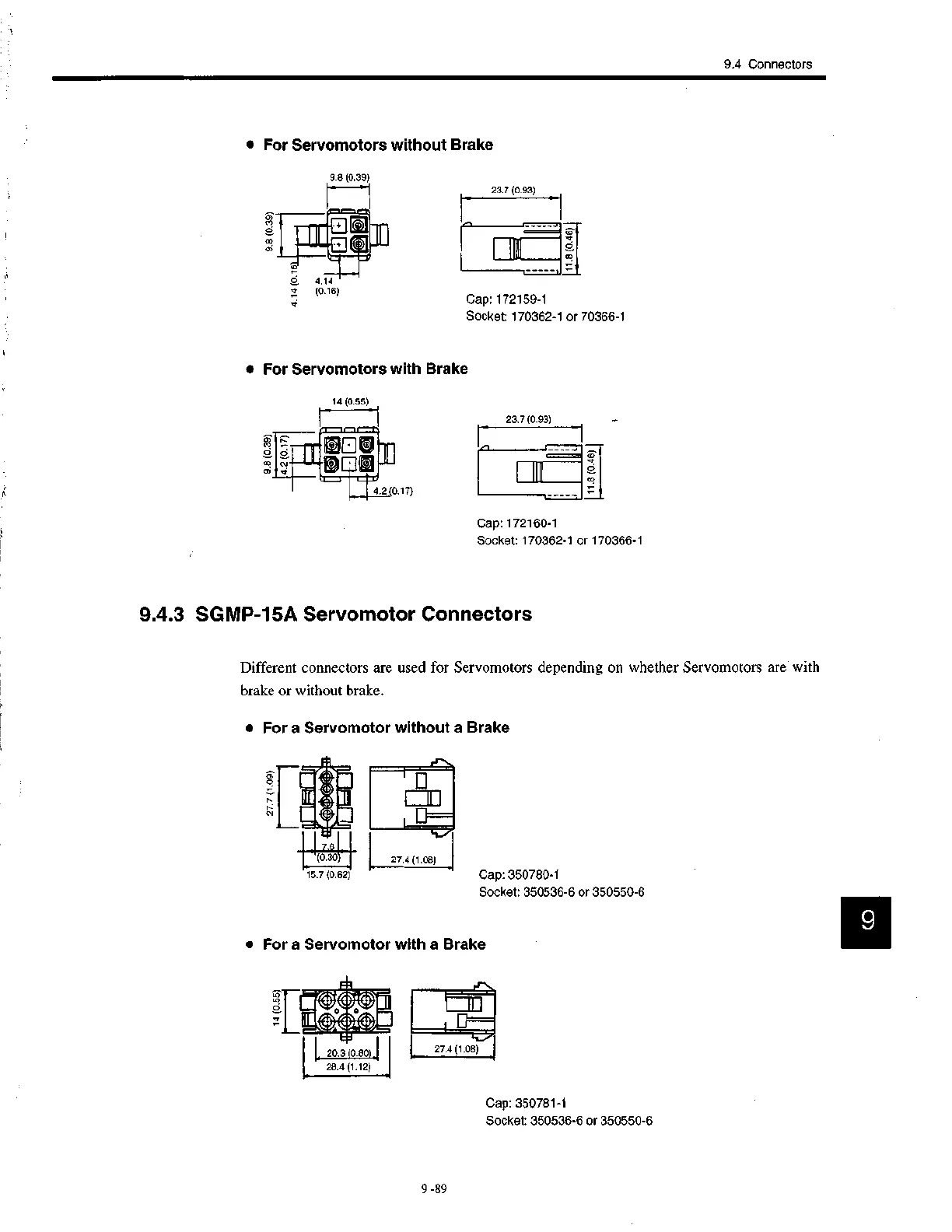

9.4 Connectors
• For Servomotors without Brake
9.8 (0.39)
23.7 (0.93)
Cap: 172159-1
Socket: 170362-1 or 70366-1
• For Servomotors with Brake
0
a)
14 (0.55)
rare
El
El
4.2 (0.17)
23.7 (0.93)
0
co
Cap: 172160-1
Socket: 170362-1 or 170366-1
9.4.3 SGMP-15A Servomotor Connectors
Different connectors are used for Servomotors depending on whether Servomotors are with
brake or without brake.
• For a Servomotor without a Brake
0
N.
Cap: 350780-1
Socket: 350536-6 or 350550-6
• For a Servomotor with a Brake
4.1./ 39
o o
%1.4 *AO
A
[ 20.3 (0.80)j
28.4 (1.12)
Cap: 350781-1
Socket: 350536-6 or 350550-6
