Servodrives Dimensional Drawings
I
o
Mi. -
1:....1t—i .1W.....T.ililifliill
‘ .
Connector Model A
B
C
10120-3000VE 11.43 (0.45) 17.6 (0.69) 22.0 (0.87)

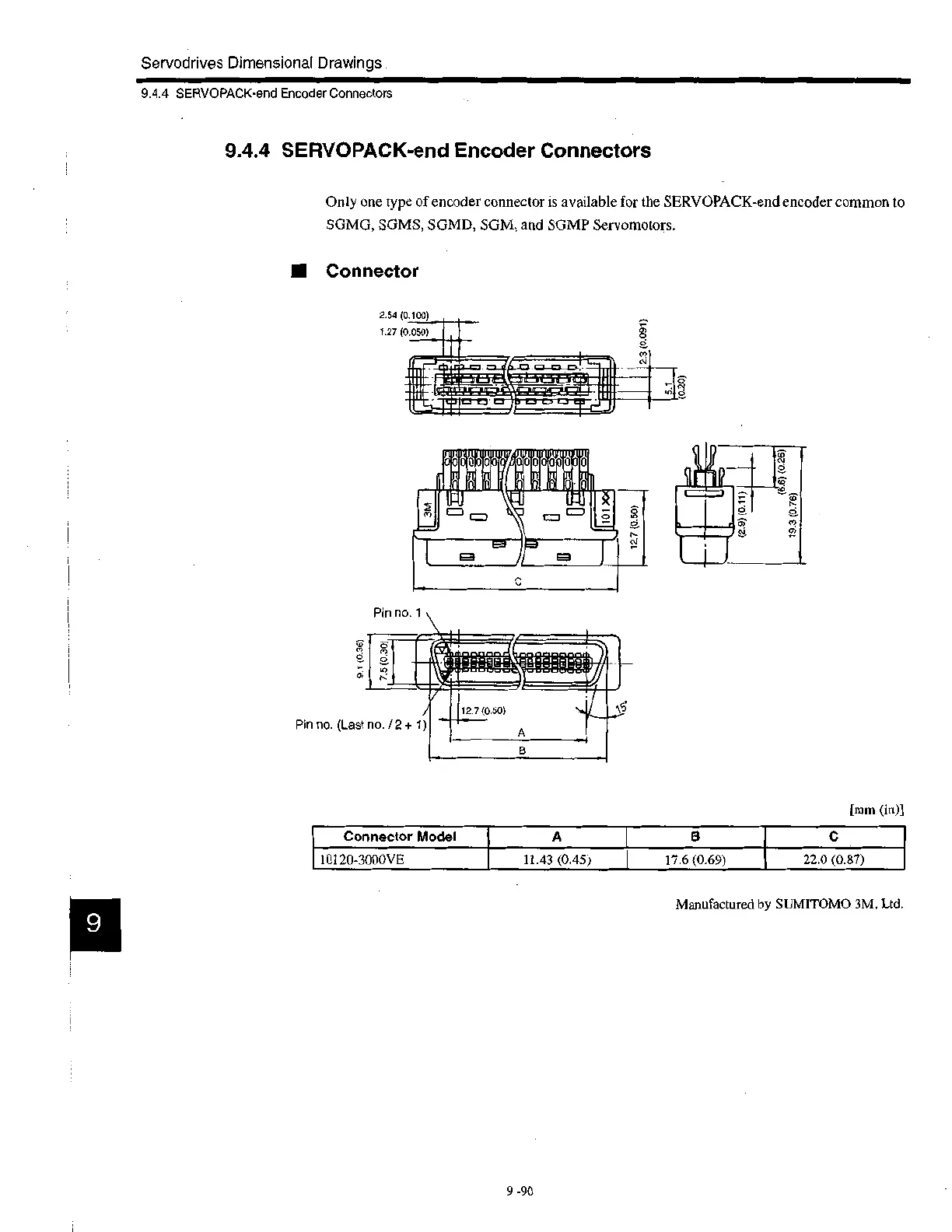

9.4.4 SERVOPACK-end Encoder Connectors
9.4.4 SERVOPACK-end Encoder Connectors
Only one type of encoder connector is available for the SERVOPACK-end encoder common to
SGMG, SGMS, SGMD, SGM, and SGMP Servomotors.
■ Connector
1111(Ell'41
vittil lir A
• g .110
J•
=
Pin no. 1
Pin no. (Last no. / 2 + 1
0
0
[mm (in)]
Manufactured by SUMITOMO 3M, Ltd.
9 -90
