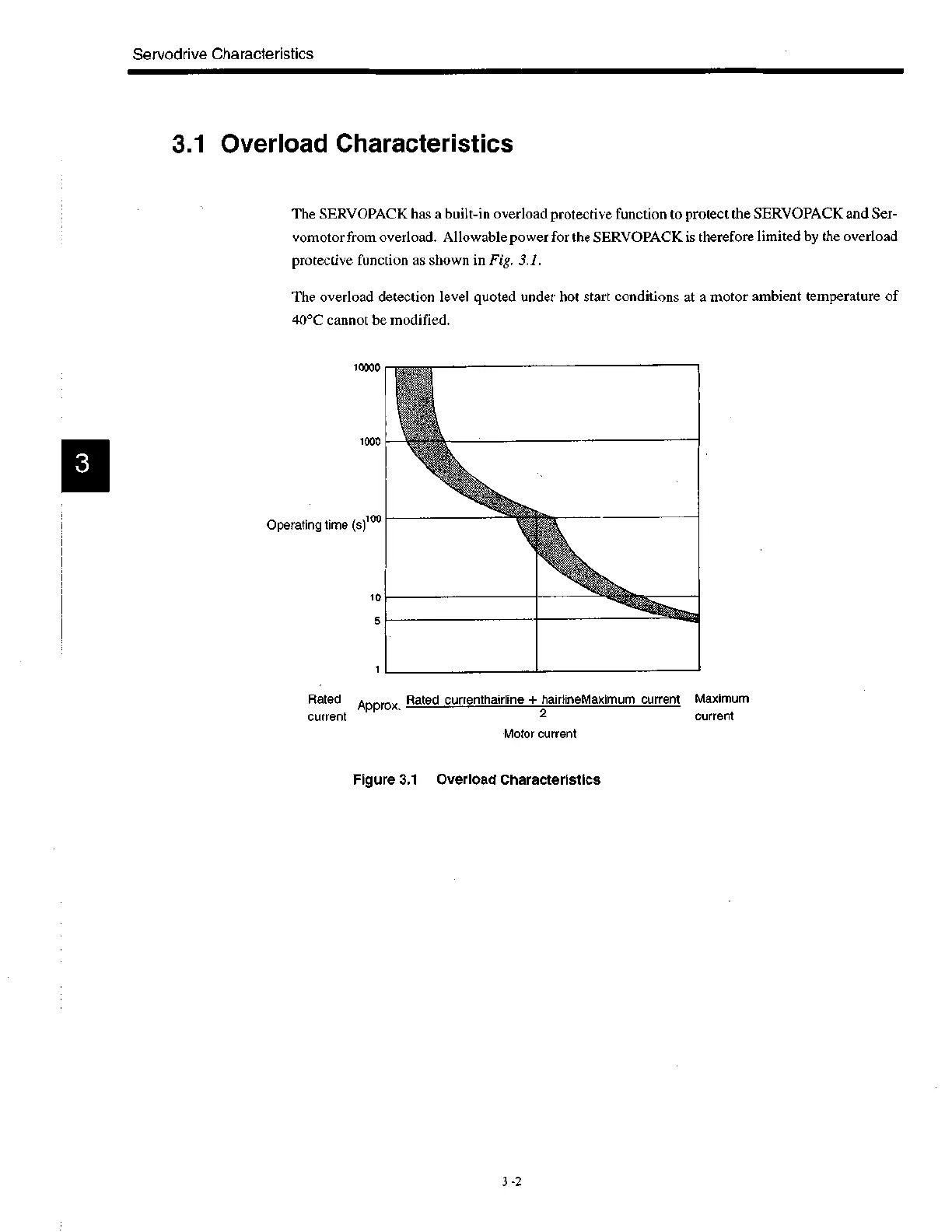

Servodrive Characteristics
3.1 Overload Characteristics
The SERVOPACK has a built-in overload protective function to protect the SERVOPACK and Ser-
vomotor from overload. Allowable power for the SERVOPACK is therefore limited by the overload
protective function as shown in Fig. 3.1.
The overload detection level quoted under hot start conditions at a motor ambient temperature of
40°C cannot be modified.
10000
1000
Operating time (S)100
10
Rated Approx. Rated currenthairline + hairlineMaximum current Maximum
current 2 current
Motor current
Figure 3.1 Overload Characteristics
3 -2
