9.6 Peripheral Devices
Model W
H
D M1 M2 Approx.
Mass
JUSP-RA04 220 (8.66) 350 (13.78) 92 (3.62)
180 (7.09) 335 (13.19) 4 kg (8.819 lb)
JUSP-RA05 300 (11.81) 350
(13.78) 95 (3.74) 250 (9.84) 335 (13.19) 7 kg (15.432 lb)
Model
L mm (in)
DE9404559
1000
+02°
(39.37 + 0° 79)

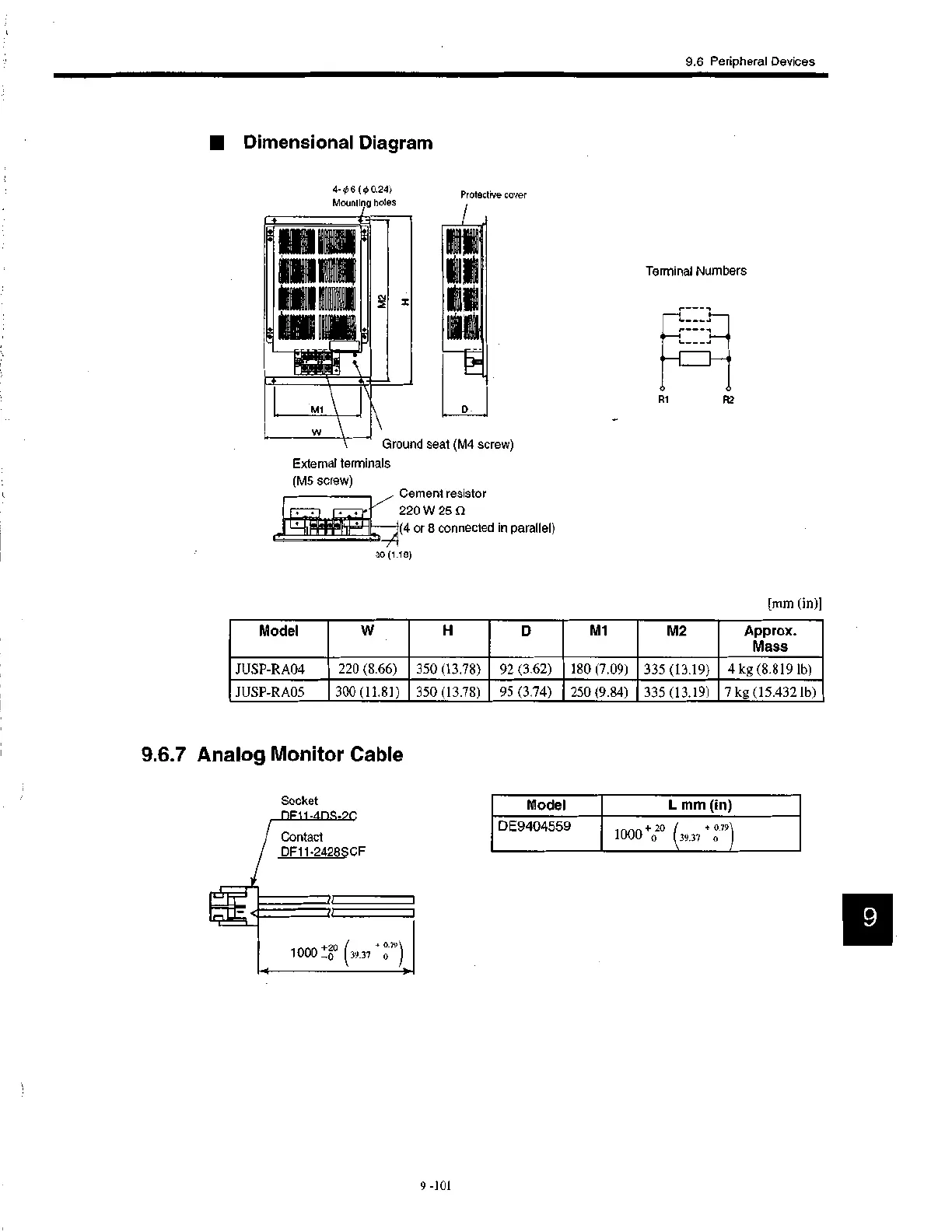

• Dimensional Diagram
4.06(¢0.24)
Mounting holes
11 Ilk
11 I
11
'1'111'1
Il 11
1 101
111
Protective cover
Te rm in al Numbers
x
w
nl
Mt,
R1
D
Ground seat (M4 screw)
External terminals
(M5 screw)
Cement resistor
220 W 25 52
(4 or 8 connected in parallel)
30 (1 18)
R2
[mm (in)]
9.6.7 Analog Monitor Cable
Socket
Contact
DF11-2428SCF
1000 +go
+ 0.79
39.37 (1
