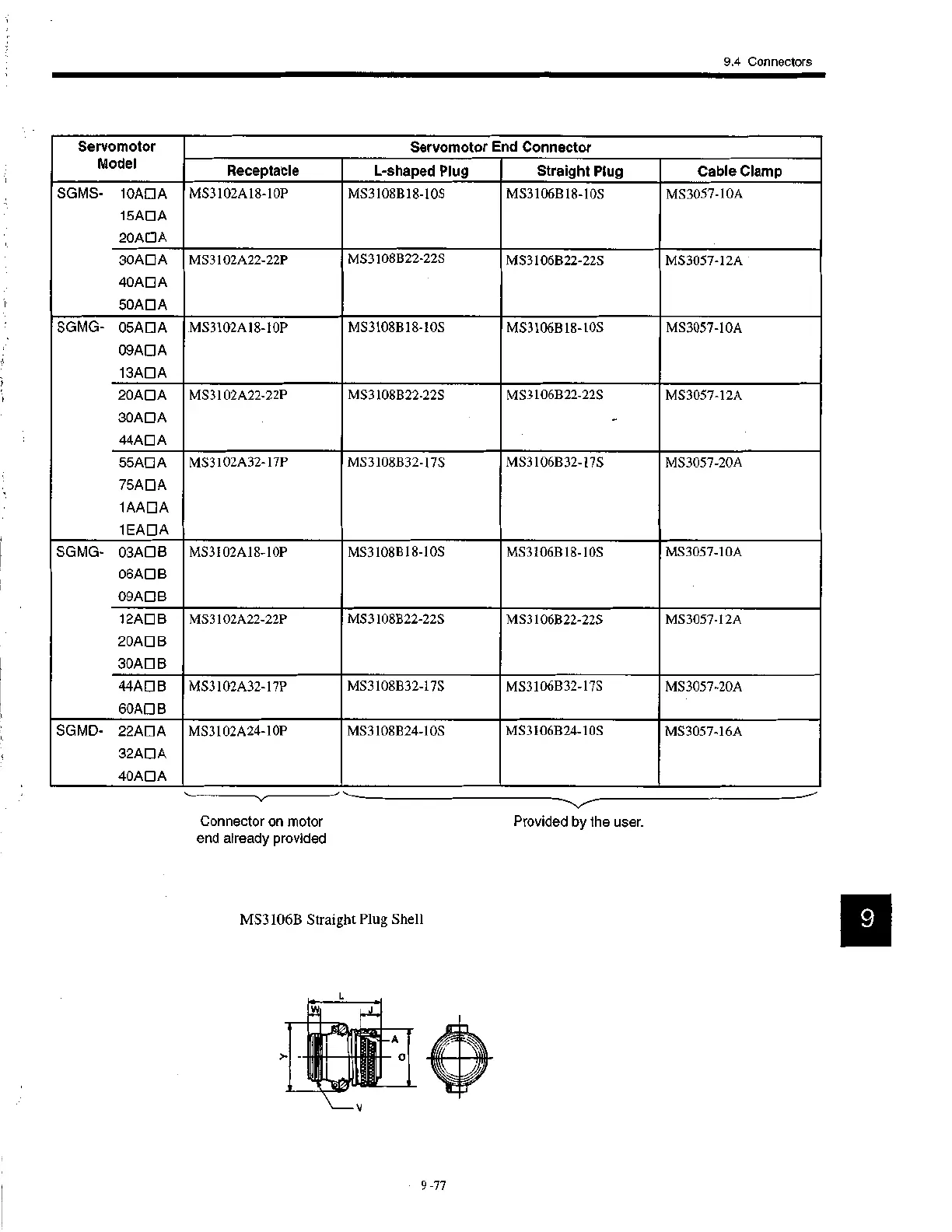

9.4 Connectors
Servomotor
Model
Servomotor End Connector
Receptacle
L-shaped Plug Straight Plug
Cable Clamp
SGMS- 10ADA
1 5ADA
20ADA
MS3102A18-10P
MS3108B18-10S
MS3106B18-10S MS3057-10A
30ADA
40ADA
50AIDA
MS3102A22-22P
MS3108B22-22S
MS3106B22-22S
MS3057-12A
SGMG- O5ADA
09ADA
13A0A
MS3102A18-10P
MS3108B18-10S
MS3106B18-10S MS3057-10A
20ADA
30ACIA
44AD A
MS3102A22-22P MS3108B22-22S MS3106B22-22S
-
MS3057-12A
55A0A
75ADA
1AADA
lEADA
MS3102A32-17P MS3108B32-17S
MS3106B32-17S MS3057-20A
SGMG- 03AD B
06ADB
09AD B
MS3102A18-10P
MS3108B18-10S
MS3106B18-10S MS3057-10A
12AD B
20AD B
30ADB
MS3102A22-22P
MS3108B22-22S
MS3106B22-22S MS3057-12A
44A013
60AD B
MS3102A32-17P MS3108B32-17S MS3106B32-17S
MS3057-20A
SGMD- 22ACIA
32ADA
40A❑A
MS3102A24-10P MS3108B24-10S MS3106B24-10S MS3057-16A
Connector on motor
end already provided
MS3106B Straight Plug Shell
Provided by the user.
9 -77
