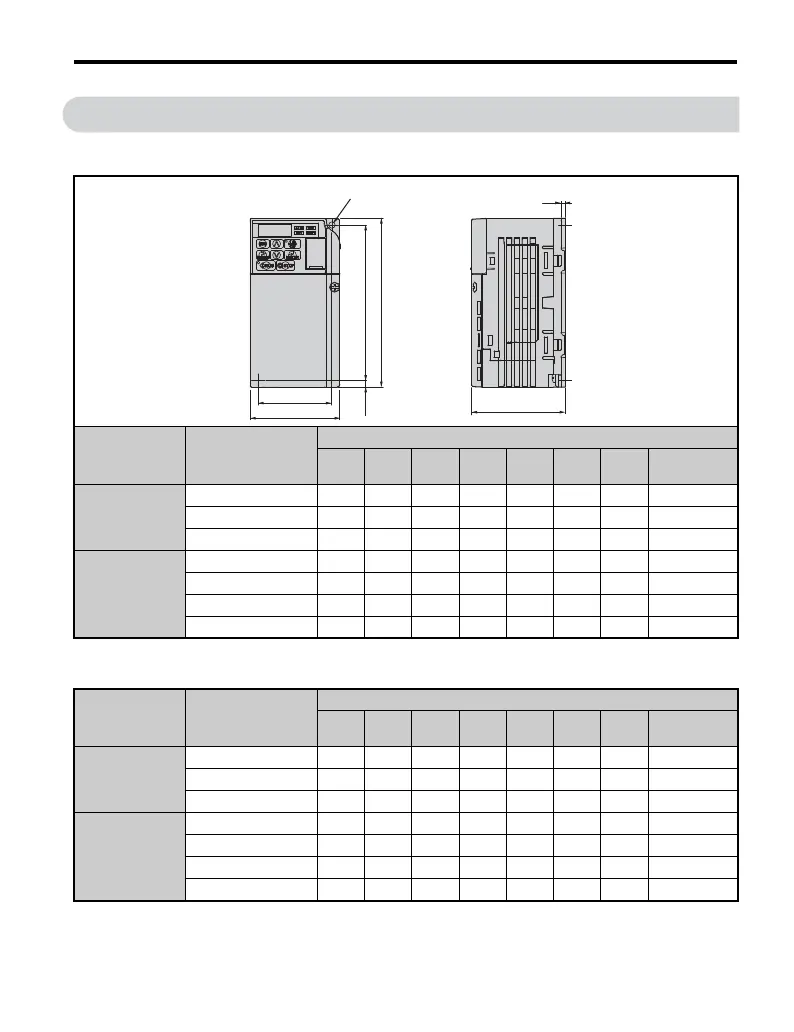

5 Dimensions
5 Dimensions
Table 8 V1000 Finless Dimensions for Models BA0001~2A0006 (metric)
Table 9 V1000 Finless Dimensions for Models BA0001~2A0006 (U.S. units)
Voltage Class
Drive Model
CIMR-V
Dimensions (mm)
W H D W1 H1 H2 t1
Weight
(kg)
Single-Phase
200 V class
BA0001 68 128 71 56 118 5 3 0.6
BA0002 68 128 71 56 118 5 3 0.6
BA0003 68 128 81 56 118 5 3 0.8
Three-Phase
200 V class
2A0001 68 128 71 56 118 5 3 0.6
2A0002 68 128 71 56 118 5 3 0.6
2A0004 68 128 71 56 118 5 3 0.7
2A0006 68 128 71 56 118 5 3 0.7
Voltage Class
Drive Model
CIMR-V
Dimensions (in)
W H D W1 H1 H2 t1
Weight
(lb.)
Single-Phase
200 V class
BA0001 2.68 5.04 2.80 2.21 4.65 0.20 0.12 1.32
BA0002 2.68 5.04 2.80 2.21 4.65 0.20 0.12 1.32
BA0003 2.68 5.04 3.19 2.21 4.65 0.20 0.12 1.76
Three-Phase
200 V class
2A0001 2.68 5.04 2.80 2.21 4.65 0.20 0.12 1.32
2A0002 2.68 5.04 2.80 2.21 4.65 0.20 0.12 1.32
2A0004 2.68 5.04 2.80 2.21 4.65 0.20 0.12 1.54
2A0006 2.68 5.04 2.80 2.21 4.65 0.20 0.12 1.54
2-M4
W
W1
H1
H
H2
D
t1
