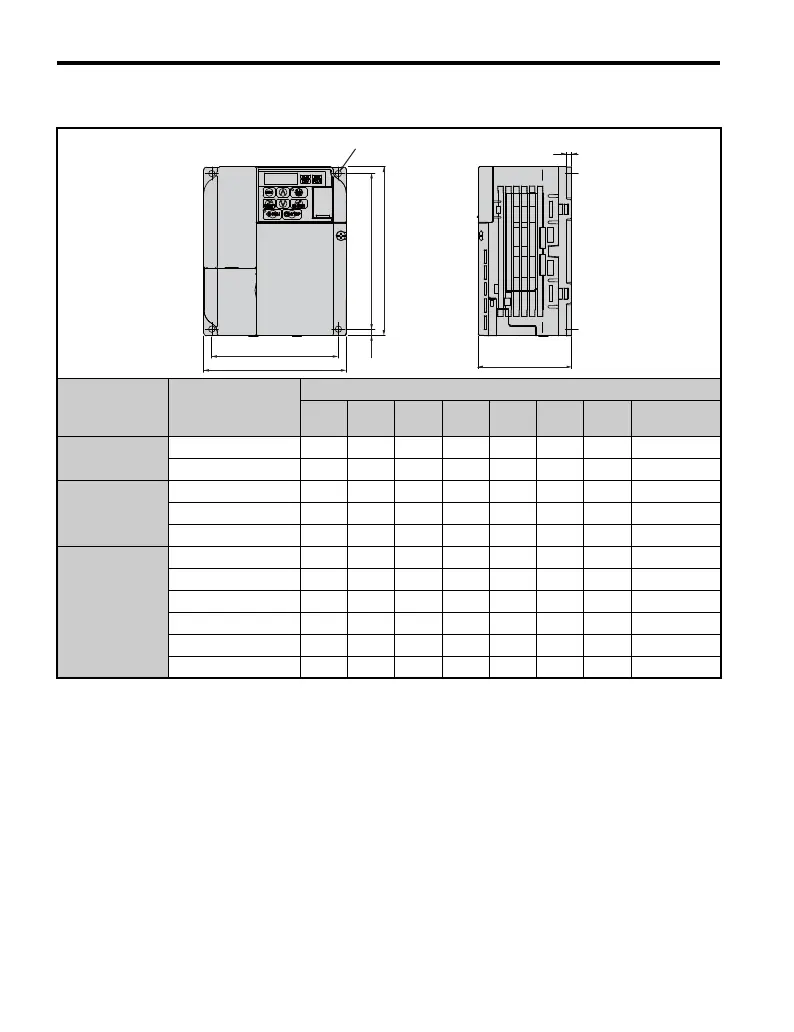

Table 10 V1000 Finless Dimensions for Models BA0006~4A0009 (metric)
Voltage Class
Drive Model
CIMR-V
Dimensions (mm)
W H D W1 H1 H2 t1
Weight
(kg)
Single-Phase
200 V class
BA0006 108 128 79.5 96 118 5 4 1.1
BA0010 108 128 91 96 118 5 4 1.1
Three-Phase
200 V class
2A0008 108 128 71 96 118 5 4 1.0
2A0010 108 128 71 96 118 5 4 1.0
2A0012 108 128 79.5 96 118 5 4 1.0
Three-Phase
400 V class
4A0001 108 128 71 96 118 5 4 0.9
4A0002 108 128 71 96 118 5 4 0.9
4A0004 108 128 79.5 96 118 5 4 1.0
4A0005 108 128 96 96 118 5 4 1.0
4A0007 108 128 96 96 118 5 4 1.1
4A0009 108 128 96 96 118 5 4 1.1
W
H
W1
H1
H2
D
t1
4-M4
