YASKAWA V1000

5 Dimensions
YASKAWA ELECTRIC TOBP C710606 21D YASKAWA AC Drive - V1000 Finless Installation Guide 19

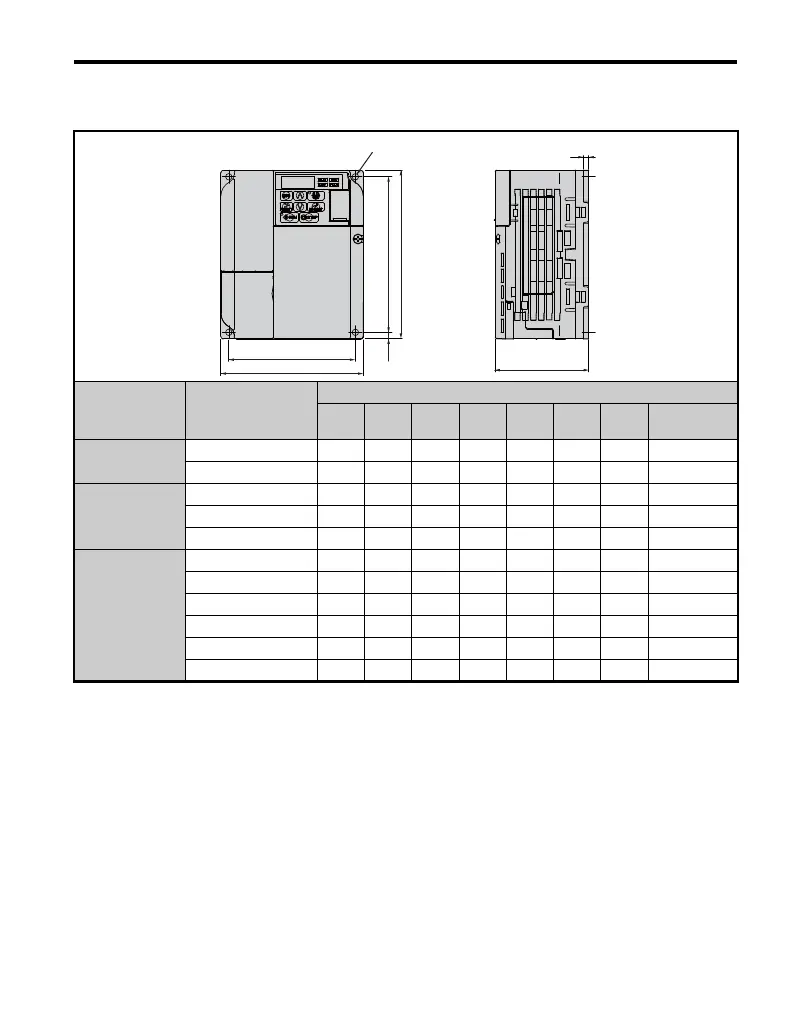

Table 11 V1000 Finless Dimensions for Models BA0006~4A0009 (U.S. units)
Voltage Class
Drive Model
CIMR-V
Dimensions (in)
W H D W1 H1 H2 t1
Weight
(lb.)
Single-Phase
200 V class
BA0006 4.26 5.04 3.13 3.78 4.65 0.20 0.16 2.43
BA0010 4.26 5.04 3.59 3.78 4.65 0.20 0.16 2.43
Three-Phase
200 V class
2A0008 4.26 5.04 2.80 3.78 4.65 0.20 0.16 2.20
2A0010 4.26 5.04 2.80 3.78 4.65 0.20 0.16 2.20
2A0012 4.26 5.04 3.13 3.78 4.65 0.20 0.16 2.20
Three-Phase
400 V class
4A0001 4.26 5.04 2.80 3.78 4.65 0.20 0.16 1.98
4A0002 4.26 5.04 2.80 3.78 4.65 0.20 0.16 1.98
4A0004 4.26 5.04 3.13 3.78 4.65 0.20 0.16 2.20
4A0005 4.26 5.04 3.78 3.78 4.65 0.20 0.16 2.20
4A0007 4.26 5.04 3.78 3.78 4.65 0.20 0.16 2.43
4A0009 4.26 5.04 3.78 3.78 4.65 0.20 0.16 2.43
W
H
W1
H1
H2
D
t1
4-M4
