YASKAWA V1000

5 Dimensions
YASKAWA ELECTRIC TOBP C710606 21D YASKAWA AC Drive - V1000 Finless Installation Guide 21

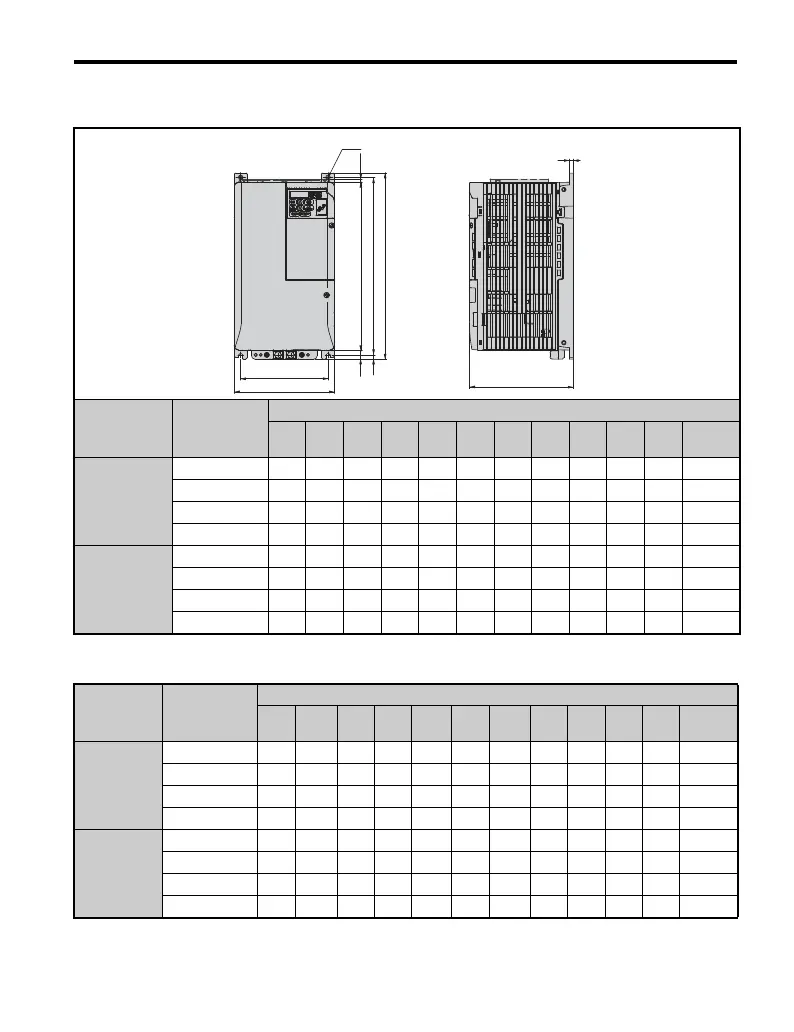

Table 14 V1000 Finless Dimensions for Models 2A0030~4A0038 (metric)
Table 15 V1000 Finless Dimensions for Models 2A0030~4A0038 (U.S. units)
Voltage Class
Drive Model
CIMR-V
Dimensions (mm)
W H D W1 H1 H2 H3 H4 H5 d t1
Weight
(kg)
Three-Phase
200 V class
2A0030 140 260 145 122 248 6 234 13 5 M5 5 3.2
2A0040 140 260 145 122 248 6 234 13 5 M5 5 3.2
2A0056 180 300 147 160 284 8 270 15 5 M5 5 4.6
2A0069 220 350 152 192 336 7 320 15 5 M6 5 7.0
Three-Phase
400 V class
4A0018 140 260 145 122 248 6 234 13 5 M5 5 3.1
4A0023 140 260 145 122 248 6 234 13 5 M5 5 3.2
4A0031 180 300 147 160 284 8 270 15 5 M5 5 4.3
4A0038 180 300 147 160 284 8 270 15 5 M5 5 4.6
Voltage
Class
Drive Model
CIMR-V
Dimensions (in)
W H D W1 H1 H2 H3 H4 H5 d t1
Weight
(lb.)
Three-Phase
200 V class
2A0030 5.51 10.24 5.71 4.81 9.77 0.24 9.22 0.51 0.20 M5 0.20 7.06
2A0040 5.51 10.24 5.71 4.81 9.77 0.24 9.22 0.51 0.20 M5 0.20 7.06
2A0056 7.09 11.82 5.79 6.30 11.19 0.36 10.64 0.59 0.20 M5 0.20 10.14
2A0069 8.69 13.79 5.99 7.56 13.24 0.28 12.61 0.59 0.20 M6 0.20 15.43
Three-Phase
400 V class
4A0018 5.51 10.24 5.71 4.81 9.77 0.24 9.22 0.51 0.20 M5 0.20 6.83
4A0023 5.51 10.24 5.71 4.81 9.77 0.24 9.22 0.51 0.20 M5 0.20 7.06
4A0031 7.09 11.82 5.79 6.30 11.19 0.36 10.64 0.59 0.20 M5 0.20 9.48
4A0038 7.09 11.82 5.79 6.30 11.19 0.36 10.64 0.59 0.20 M5 0.20 10.14
4-d
W
W1
H
H1
H2
H4
H3
H5
D
t1
