(2) Manual Run
Manual run is the mode in which the power regenerative unit starts running
when the terminal S1-SC is “closed,” and stops one second after S1-SC is
“open.”
MANUAL RUN
Inverter Status
Regenerative Unit
Run Status
Current at Power Side
DC Bus Voltage
ON
RUN
Regeneration
Auto Run
AC Power Supply Voltage × 1.35
C8-20: default setting 1 sec

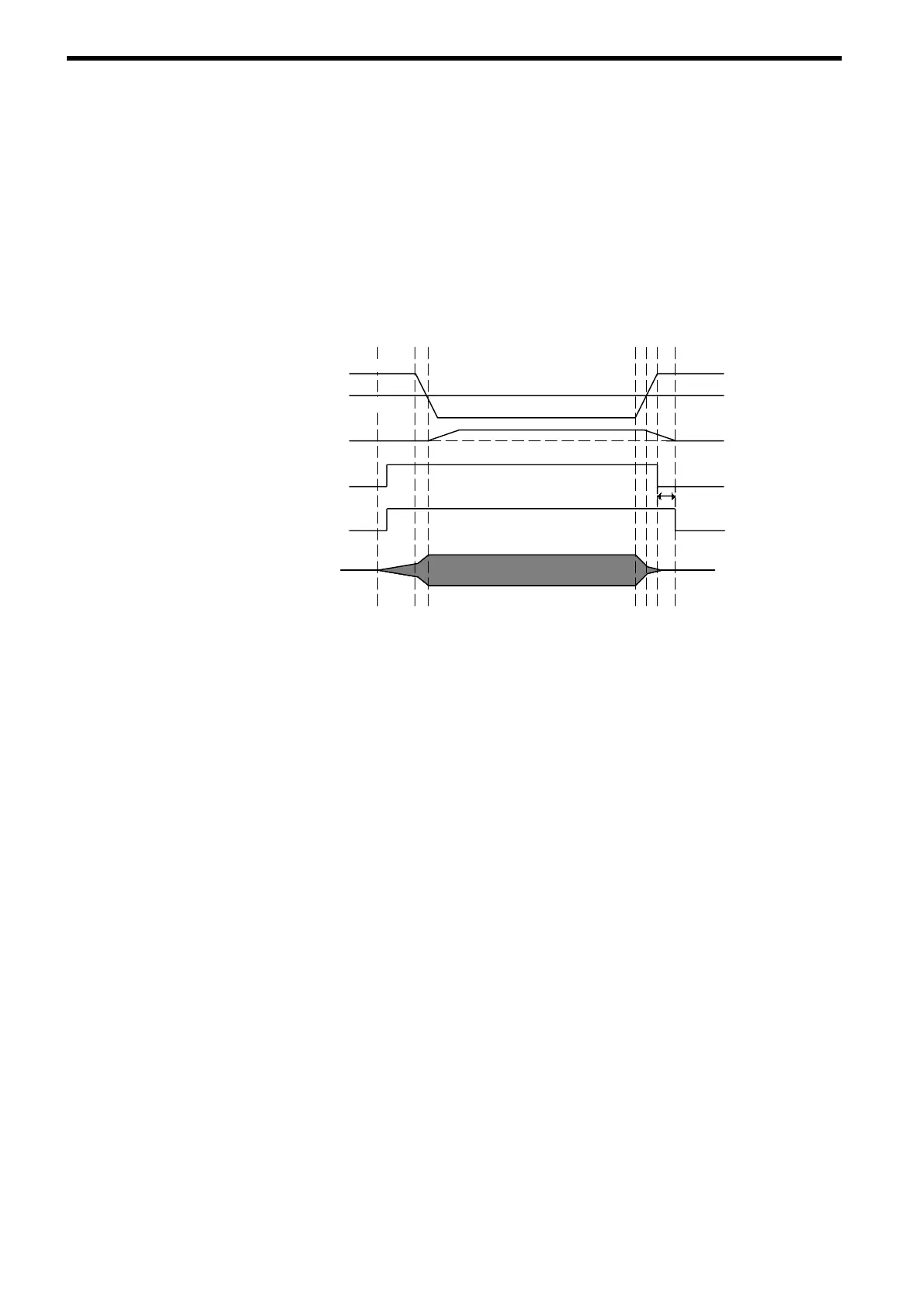

Fig.18 Timechart of the Manual Run mode
Build a sequence so that the run commands of the power regenerative unit and
the inverter are turned ON at the same time.
