YASKAWA VS-626MT Series - Page 23

1 .
Specifiction

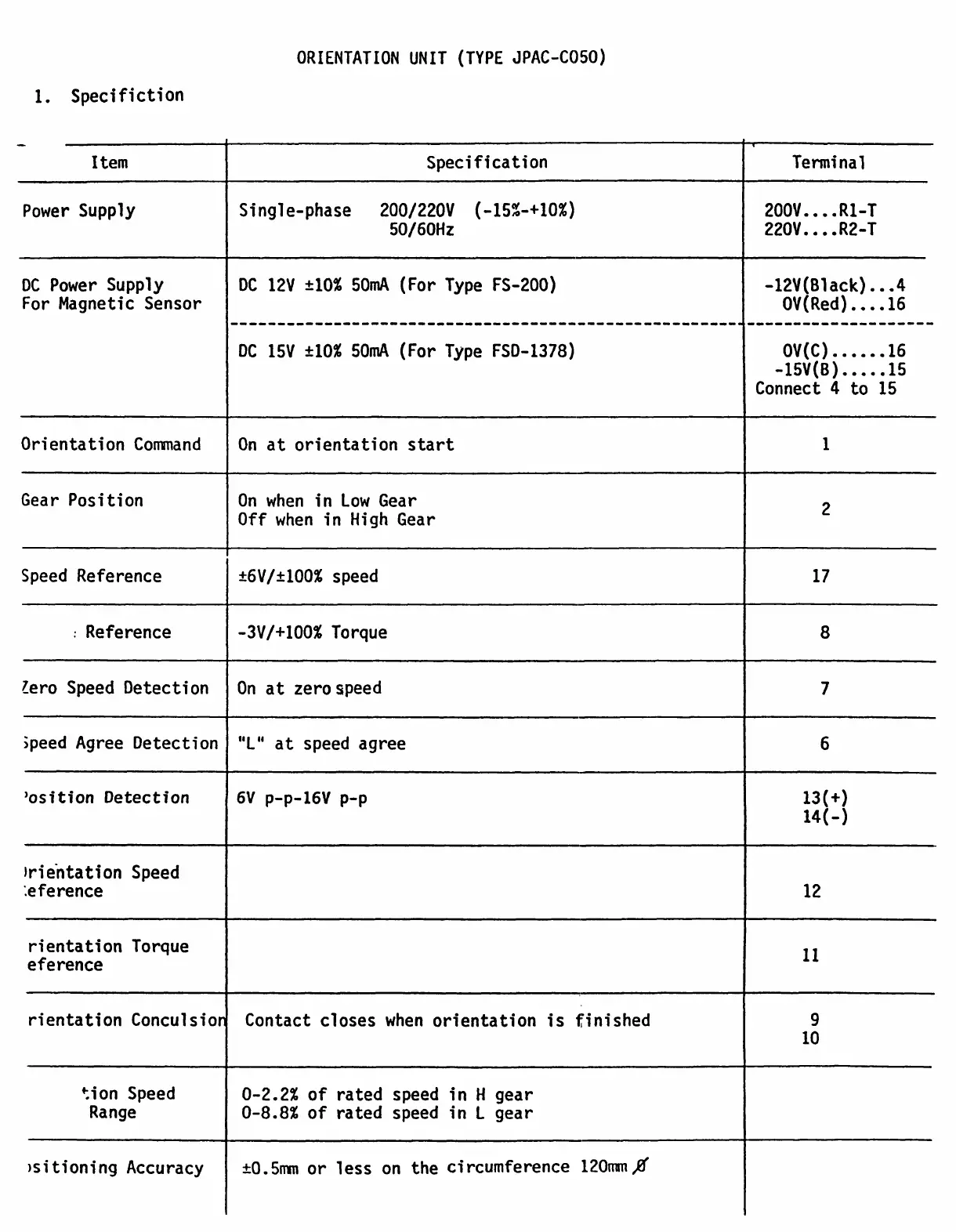

ORIENTATION UNIT (TYPE JPAC-C050)
Item Specification Terminal
Power
Supply Single-phase
200/220V
(-15A-+10%)
200V .
. . .
R1-T
50/60Hz 220V
. .
. .
R2-T
DC Power Supply DC 12V ±10%50mA (For Type FS-200) -12V(Black) . . .4
For MagneticSensor
---------------------------------------------------------------------------
OV(Red) . . . . 16
DC 15V ±10% 50mA (For Type FSD-1378) OV(C) . . . . . . 16
-15V(B) . . . . . 15
Connect 4 to 15
Orientation
Command
On at orientation start
1
Gear Position On
when in Low Gear
2
Offwhen in HighGear
Speed
Reference ±6V/±100% speed 17
Reference -3V/+100% Torque
8
Zero Speed Detection On at zero speed 7
;peed Agree Detection "L"
at speed agree 6
'osition Detection 6V p-p-16V p-p 13(+)
14(-)
)ri
entati on Speed
:eference
12
rientation Torque
11
eference
rientation Conculsio Contact closes when orientation is finished 9
10
Lion Speed 0-2 .2% of rated speed in H gear
Range
0-8 .8% of rated speed in L gear
)sitioning Accuracy ±0.5mm or less on the
circumference 120mm,0'
