Yealink SIP-T27P User Manual

Advanced Phone Features
139

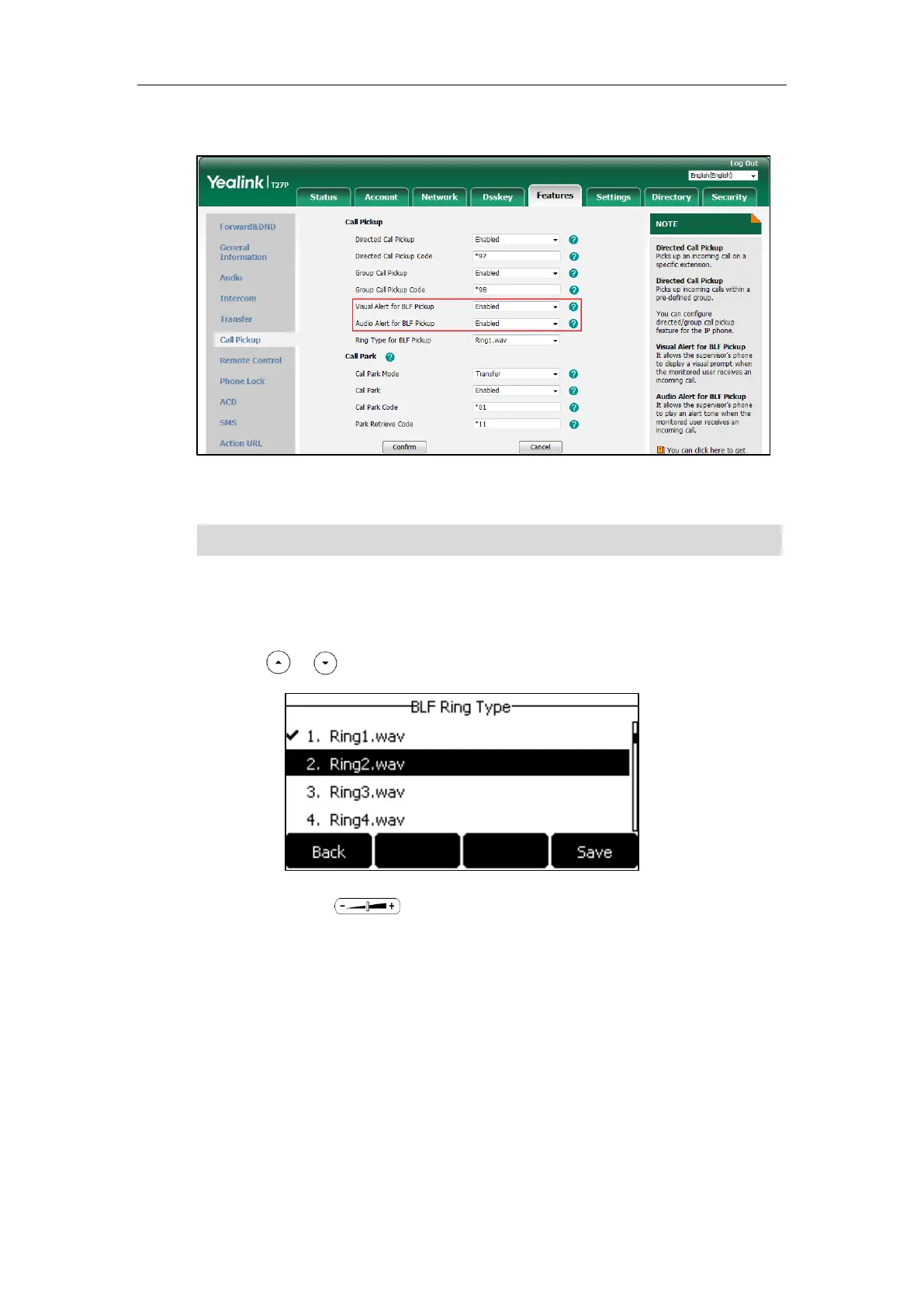

3. Select Enabled from the pull-down list of Audio Alert for BLF Pickup.
4. Click Confirm to accept the change.
Note
To configure BLF ring type via phone user interface:
1. Press Menu->Settings->Basic Settings->Sound->BLF Ring Type.
2. Press or to select the desired ring tone.
3. (Optional.) Press to adjust the ringer volume.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
BLF ring type is configurable via web user interface at the path Features->Call Pickup.
When the monitored line receives an incoming call, the following occurs on your phone:
 The phone plays a specific ring tone (if enabled).
 The BLF key LED flashes red.
 The caller ID appears on the LCD screen (if enabled).
Visual and audio alert features are configurable via web user interface only.

Yealink SIP-T27P Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Cappuccino, Black
Backlight keypad	Yes
Volume control	Digital
Base station keys	36
Number of programmable keys	8
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.722, G.726, G.711, G.729, G.711a, G.729A, iLBC, G.729B
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1Q
RJ-9 ports quantity	2
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
Package depth	225 mm
Package width	300 mm
Package height	118 mm
