Yealink SIP-T33P Administrator's Guide

Administrator’s Guide for SIP-T2 /T3 /T4 /T5 /CP920 IP Phones
321
Note: You can package the tar formatted file using the tool 7-Zip or GnuWin32. You can download 7-Zip online:
http://www.7-zip.org/ and GnuWin32 online: http://gnuwin32.sourceforge.net/packages/gtar.htm.
The procedure may be different if you package the tar formatted file using other software that is not listed above.

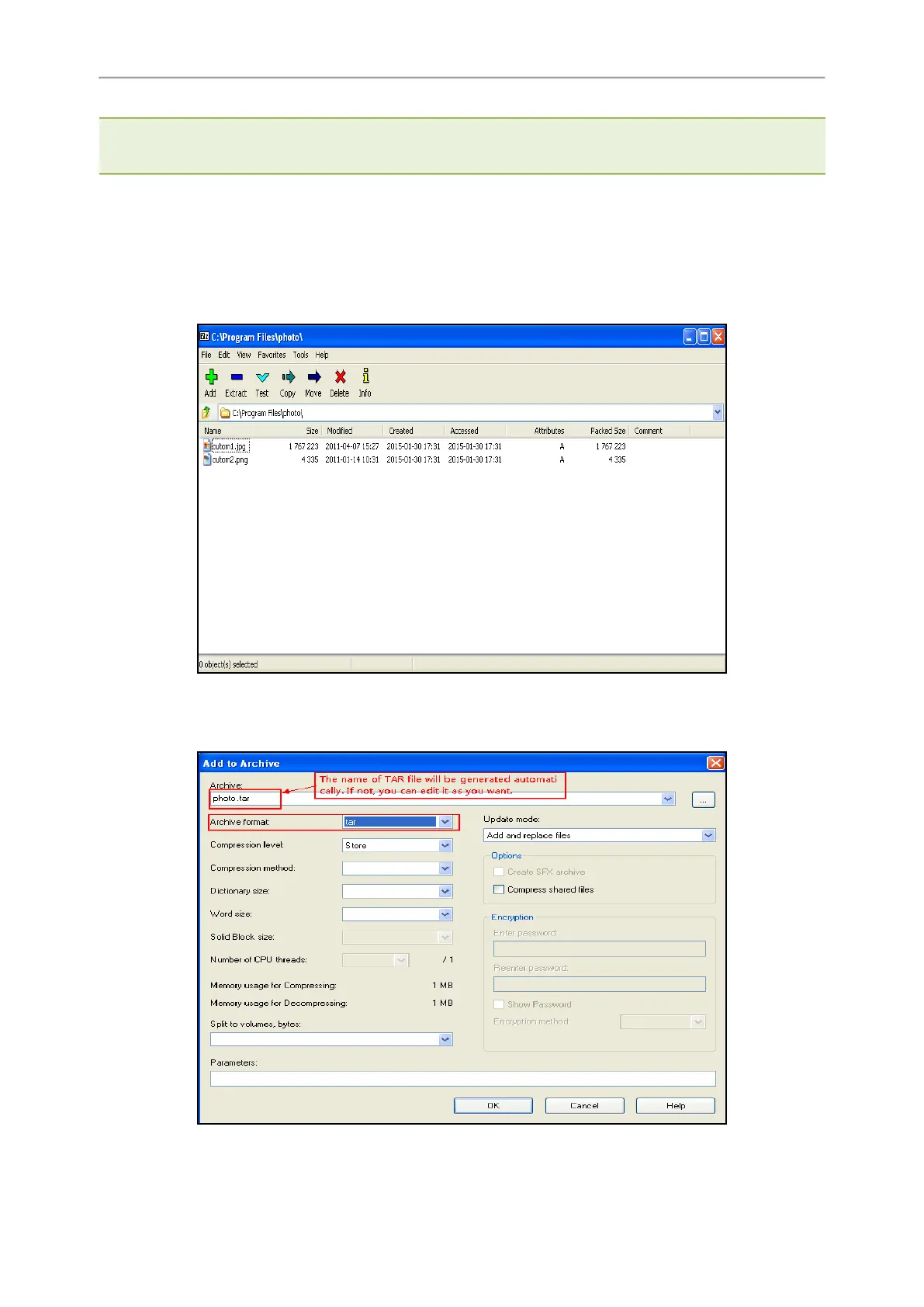

Procedure
1.
Download and install 7-Zip on the local system.
2.
Create a folder (for example, photo) on the local system (for example, C:\Program Files) and place the file that
will be compressed (for example, cutom1.jpg, cutom2.png) to this folder.
3.
Start the 7-Zip file manager application (7zFM.exe).
4.
Locate the photo folder from the local system (C:\Program Files\photo\).
5.
Select the desired photos that will be compressed.
6. Click the Add button.
7. Select tar from the Archive format drop-down menu.

Yealink SIP-T33P Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Wall mountable	Yes
Operating system installed	Linux
Lines quantity	4 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	4
Volume control	Buttons
Number of function keys	5
Display diagonal	2.4 \
Display resolution	320 x 240 pixels
Voice codecs	AGC, AJB, CNG, G.711a, G.711u, G.722, G.723.1, G.726, G.729, G.729A, PLC, VAD, iLBC
Security algorithms	AES, HTTPS
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-9 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Power consumption (typical)	3 W
Power consumption (Power over Ethernet (PoE))	5 W
Number of handles included	1 pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	186 mm
Width	212 mm
Height	146 mm
