Yealink SIP-T33P Administrator's Guide

Administrator’s Guide for SIP-T2 /T3 /T4 /T5 /CP920 IP Phones
565
For example, if you set the Always Forward on code to be *78 (may vary on different servers), and the target number
to be 201. When you enable Always Forward on the IP phone, the phone sends *78201 to the server, and then the
server will enable Always Forward feature on the server side, hence being able to get the right status of the exten-
sion.
For anonymous call/anonymous call rejection feature, the phone will send either the on code or off code to the
server according to the value of Send Anonymous Code/Send Rejection Code.

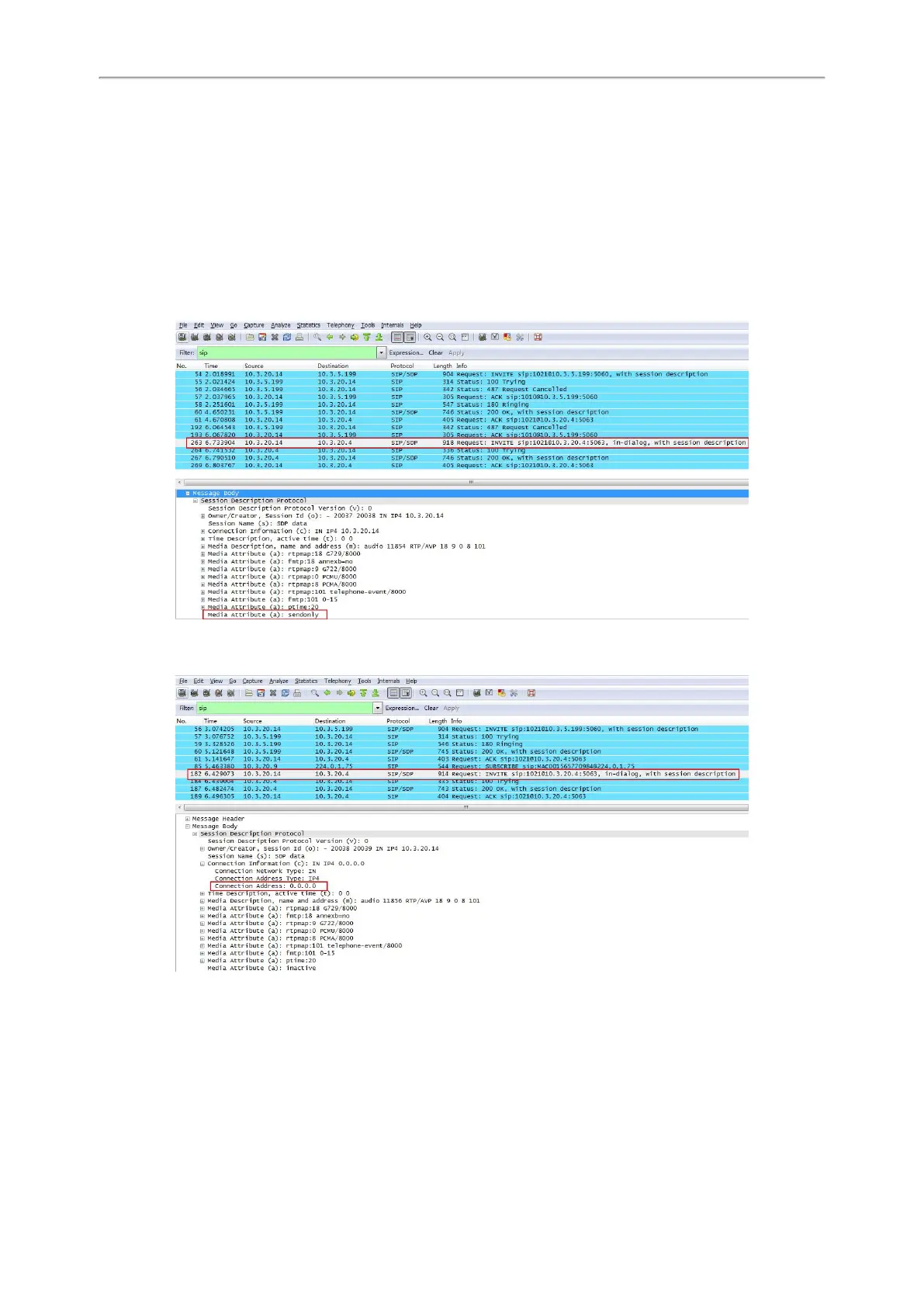

The difference between RFC 2543 Hold enabled and disabled
Capturing packets after you enable the RFC 2543 Hold feature. SDP media direction attributes (such as a=se-
endonly) per RFC 2543 is used in the INVITE message when placing a call on hold.
Capturing packets after you disable the RFC 2543 Hold feature. SDP media connection address c=0.0.0.0 per RFC
3264 is used in the INVITE message when placing a call on hold.
The difference between Shared Call Appearance (SCA) and Bridge Lines
Appearance (BLA)
SCA and BLA are similar signaling methods that enable more than one phone to share a SIP line. The method you
use varies with the SIP server you are using. In the configuration files, the relevant configuration parameters of SCA
and BLA are different. The barge-in and call pull feature are not available with BLA, but they are available with
SCA.

Yealink SIP-T33P Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Wall mountable	Yes
Operating system installed	Linux
Lines quantity	4 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	4
Volume control	Buttons
Number of function keys	5
Display diagonal	2.4 \
Display resolution	320 x 240 pixels
Voice codecs	AGC, AJB, CNG, G.711a, G.711u, G.722, G.723.1, G.726, G.729, G.729A, PLC, VAD, iLBC
Security algorithms	AES, HTTPS
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-9 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Power consumption (typical)	3 W
Power consumption (Power over Ethernet (PoE))	5 W
Number of handles included	1 pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	186 mm
Width	212 mm
Height	146 mm
