Yealink SIP-T58A User Manual

Customizing Your Phone
117
3. (Optional.) Check the Show Title checkbox.
It will prevent importing the title of the contact information which is located in the first line
of the CSV file.
4. (Optional.) Check the Delete Old Contacts checkbox.
It will delete all existing contacts while importing the contact list.
5. Click Import to complete importing the contact list.

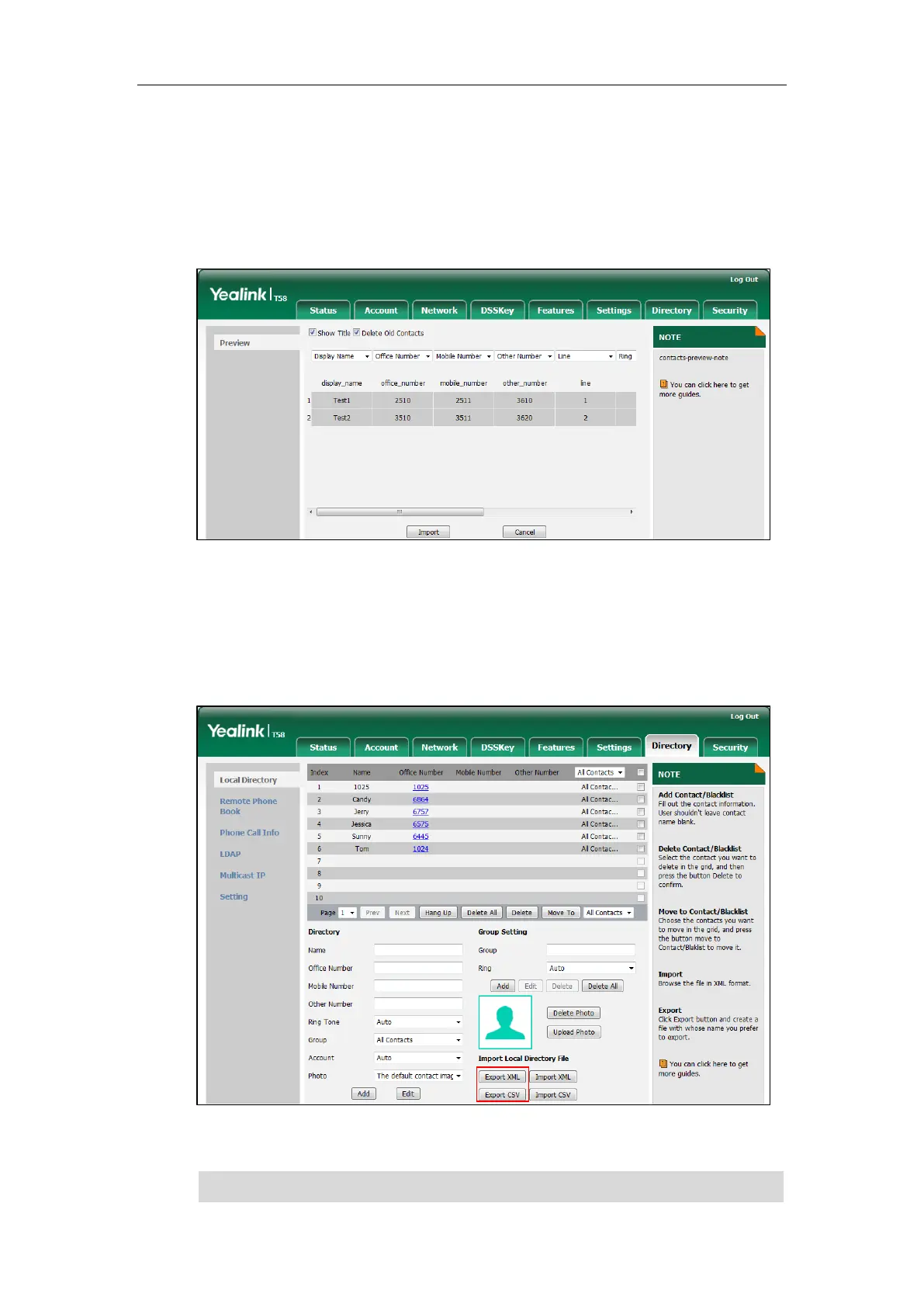

To export a contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Export XML (or Export CSV).
3. Click Save to save the contact list to your local system.
Note
Importing/exporting contact lists is available via web user interface only.

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
