Yealink SIP-T58A User Manual

Basic Phone Features
315
To place an anonymous call:
1. Using the specific line on the phone to place a call to phone B.

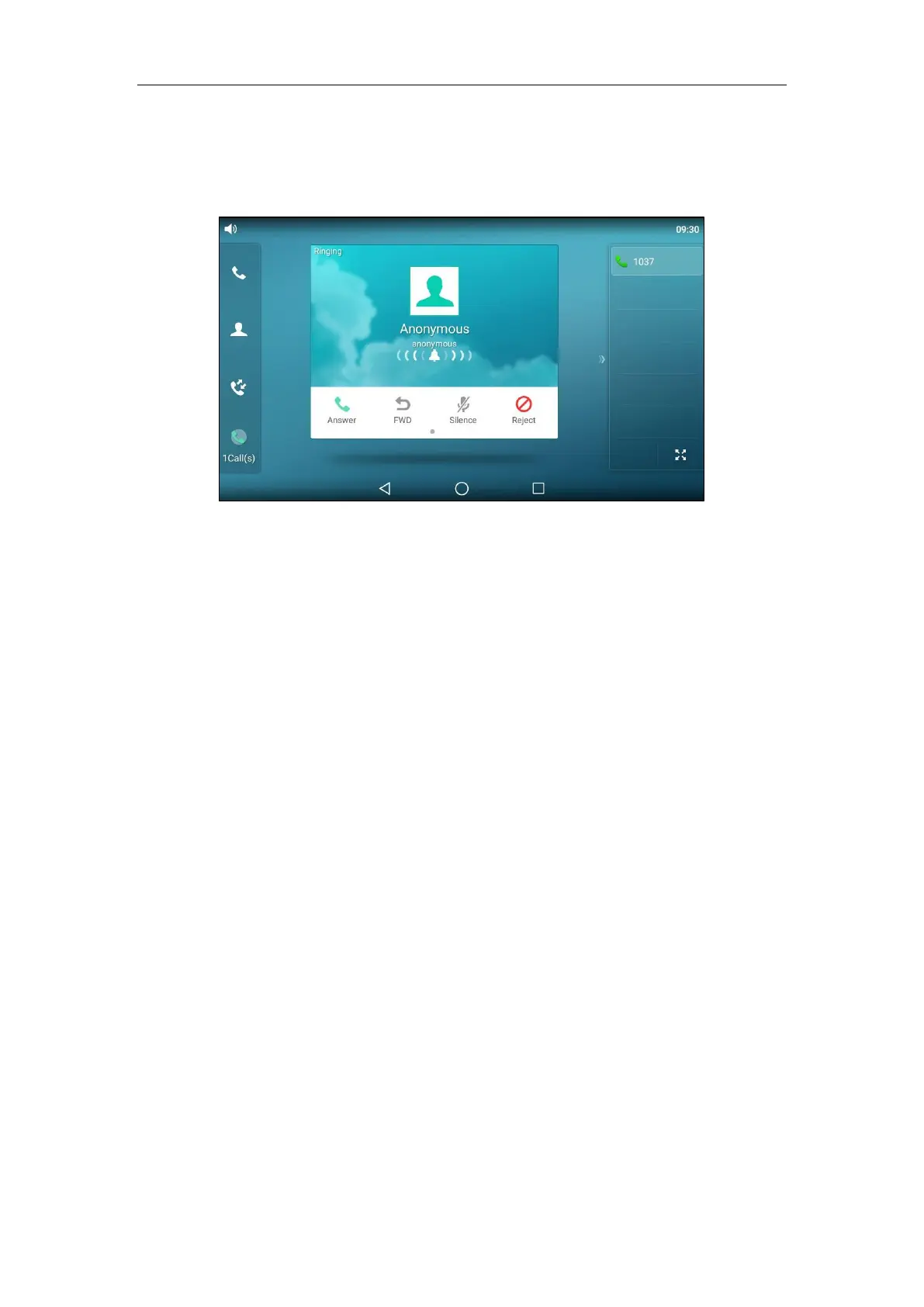

The touch screen of phone B prompts an incoming call from anonymous.
Anonymous Call Rejection
You can use anonymous call rejection to reject incoming calls from anonymous callers.
Anonymous call rejection automatically rejects incoming calls from callers who deliberately
block their identities and numbers from being displayed. Anonymous call rejection is
configurable on a per-line basis. You can also configure the phone to send anonymous call
rejection on/off code to the server to activate/deactivate anonymous call rejection on the server
side.
To configure anonymous call rejection via phone user interface:
1. Swipe down from the top of the screen or swipe left/right to go to the second idle screen.
2. Tap Settings->Features->Anonymous.
3. Tap the desired line.
4. Tap the On radio box in the Anonymous Rejection field.
5. (Optional.) Tap the On Code or Off Code radio box in the Send Rejection Code field.
6. (Optional.) Enter the anonymous call rejection on code and off code respectively in the On
Code and Off Code field beneath the Send Rejection Code field.

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
