Yealink SIP-T58A User Manual

User Guide for SIP-T58V/A Smart Media Phone
270

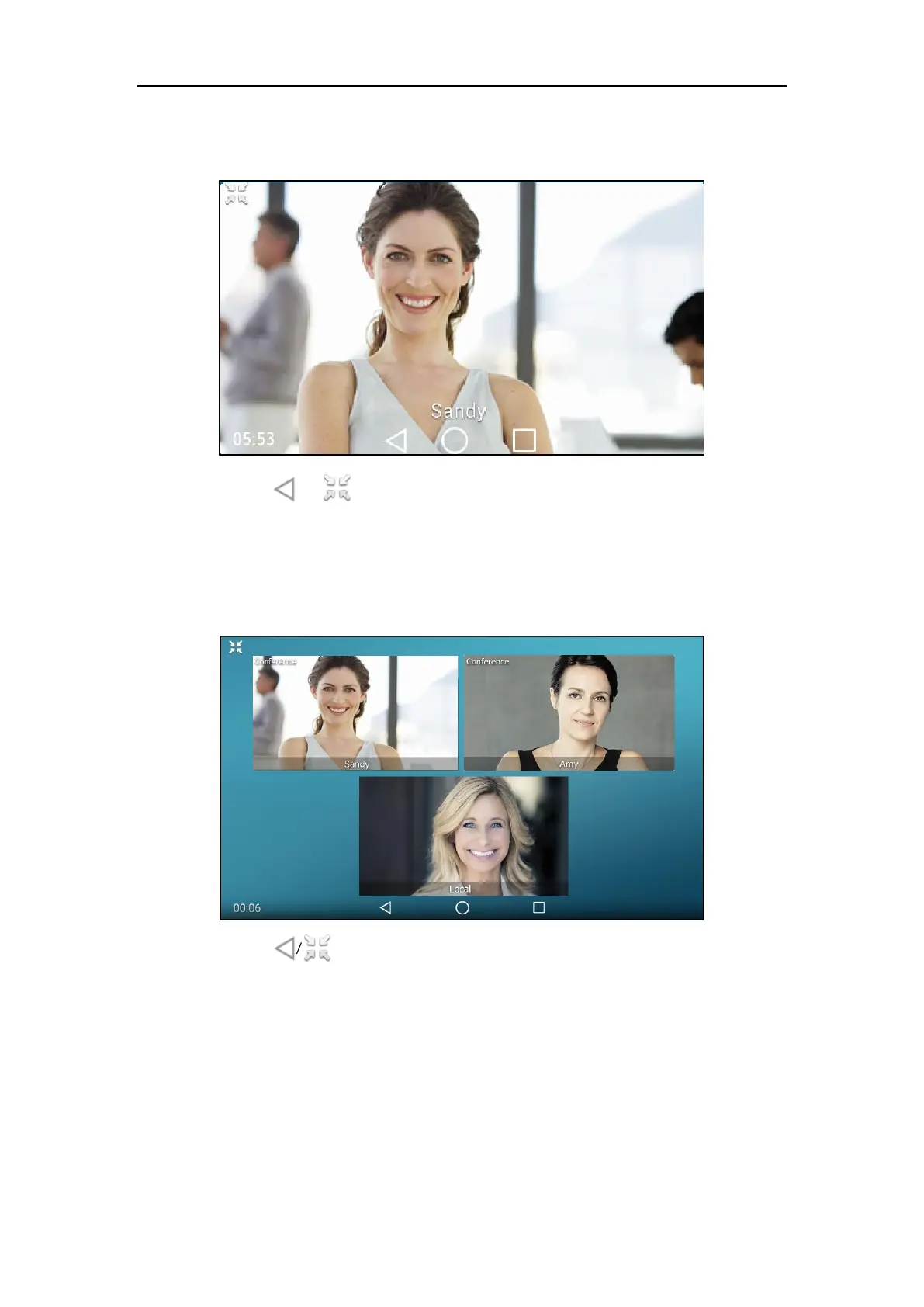

The small window is hidden, and the following figure shows what the touch screen looks
like in full screen mode:
You can tap or to go back to video call screen (refer to Video Call Screen Display) or
tap the video area to go back to “one big, other small” layout.
To change the video layout during a video conference call via phone user interface:
The default screen layout during a video conference call is the same size mode. The following
figure shows what the touch screen looks like during a three-way video conference call:
You can tap / or the blank area of the touch screen to go back to video call screen (refer
to Video Call Screen Display) or tap one of the conference party to go back to the “one big,
other small” layout.

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
