Advanced Phone Features
339

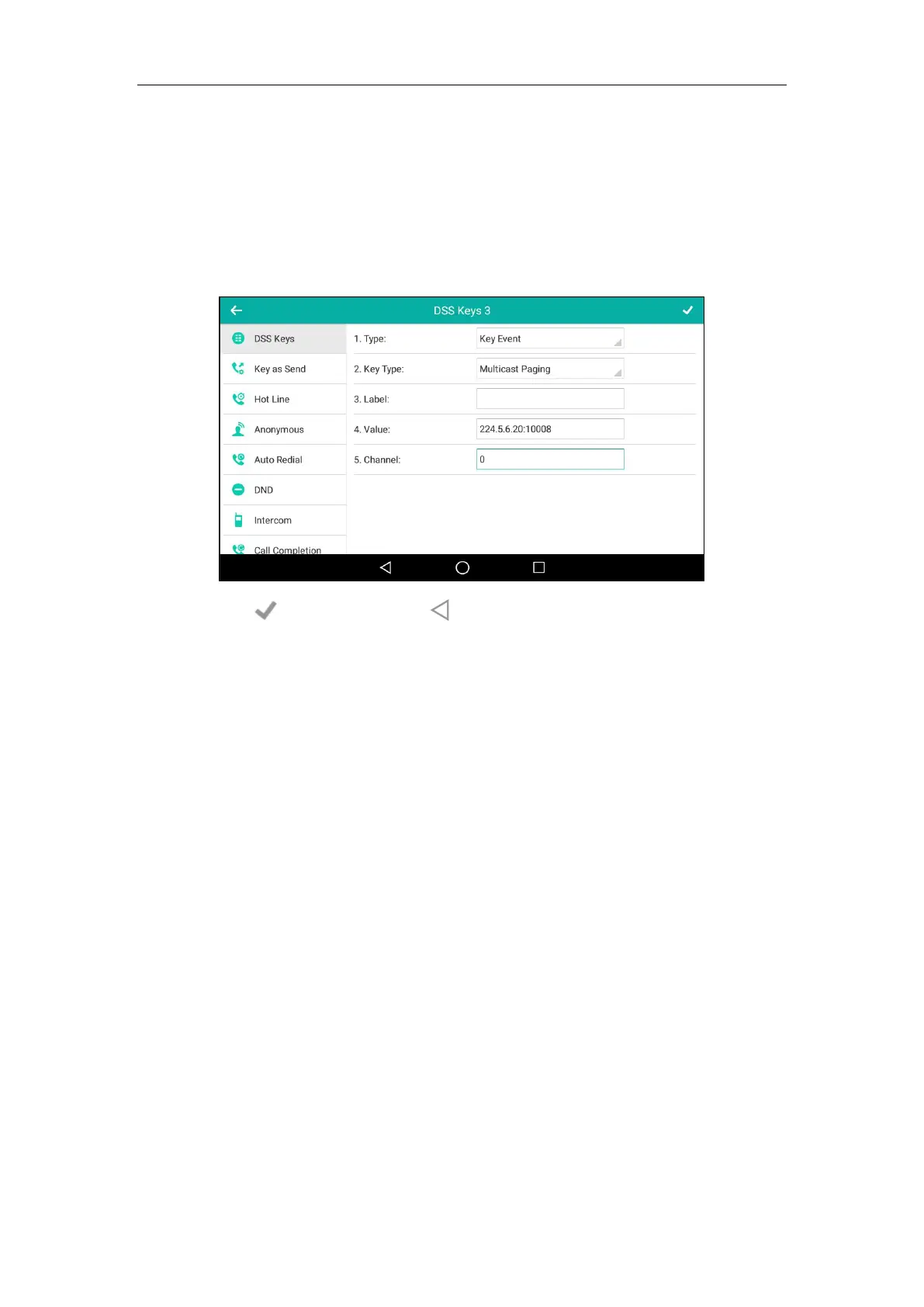

7. Tap Multicast Paging in the pop-up dialog box.
8. (Optional.) Enter the string that will appear on the touch screen in the Label field.
9. Enter the multicast IP address and port number (e.g., 224.5.6.20:10008) in the Value field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
10. Enter the desired channel in the Channel field.
The valid channel ranges from 0 to 30.
11. Tap to accept the change or to cancel.
Multicast paging key is configurable via web user interface at the path DSSKey->Line Key.
To configure a paging list key via phone user interface:
1. Swipe down from the top of the screen or swipe left/right to go to the second idle screen.
2. Tap Settings->Features->DSS Keys.
3. Tap the desired line key.
4. Tap the Type field.
5. Tap Key Event in the pop-up dialog box.
6. Tap the Key Type field.
7. Tap Paging List in the pop-up dialog box.
