Yealink SIP-T58A User Manual

User Guide for SIP-T58V/A Smart Media Phone
64

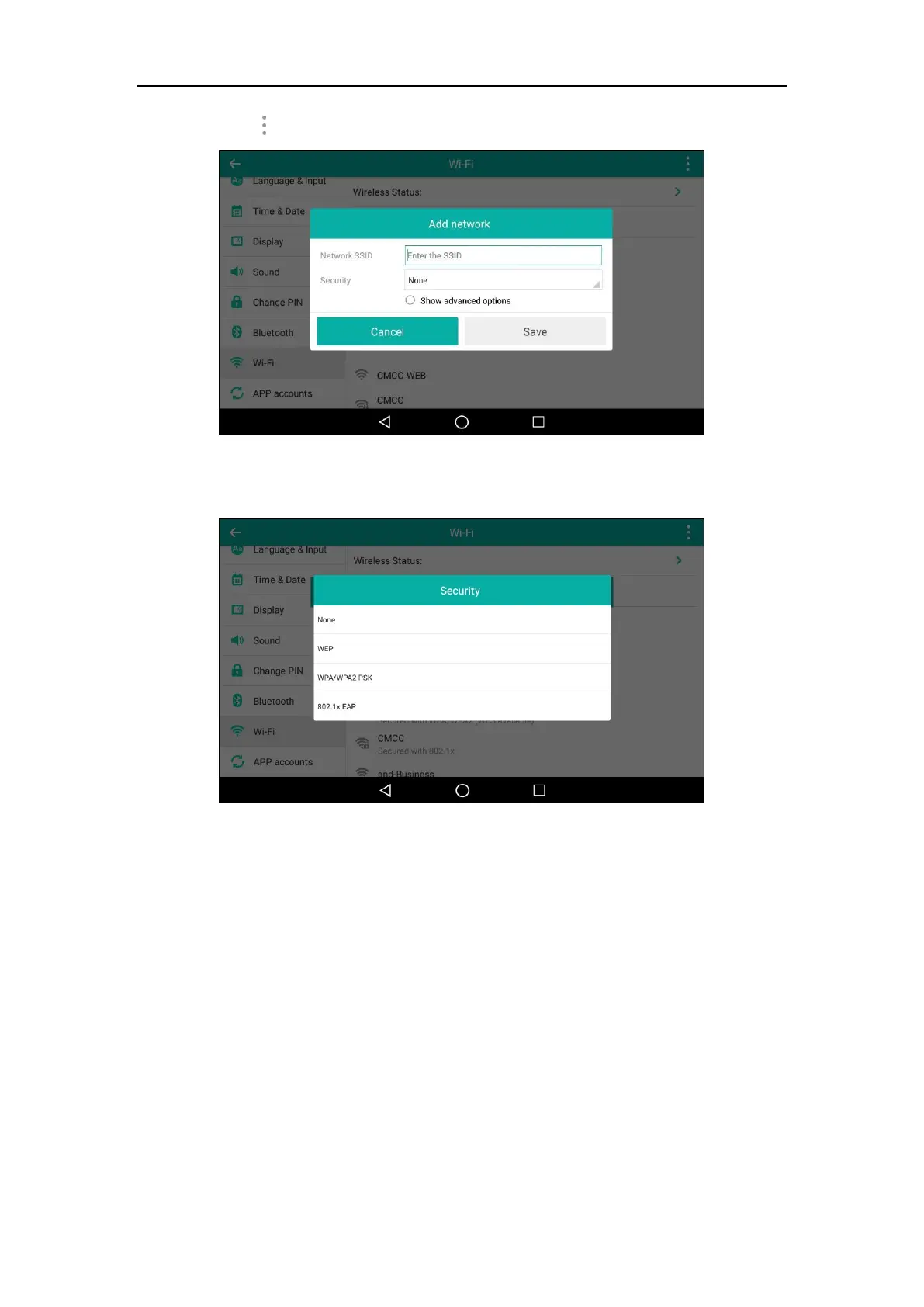

4. Tap and then tap Add.
5. Enter the desired value in the Network SSID field.
6. Tap the Security field.
7. Tap the desired value.
- If you select WEP or WPA/WPA2 PSK:
1) Enter the password in the Password field.
- If you select 802.1x EAP:
1) Tap the EAP method field.
2) Tap the desired EAP method in the pop-up dialog box.
- If you select PEAP/TTLS:
a) Tap the Phase-2 authentication field.
b) Tap the desired Phase-2 authentication method in the pop-up dialog
box.
c) Enter the identity (username) in the Identity field.
d) Enter the anonymous identity (username) in the Anonymous identity
field (to be used as the unencrypted identity).

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
