5-6 IM 04P02B01-01E

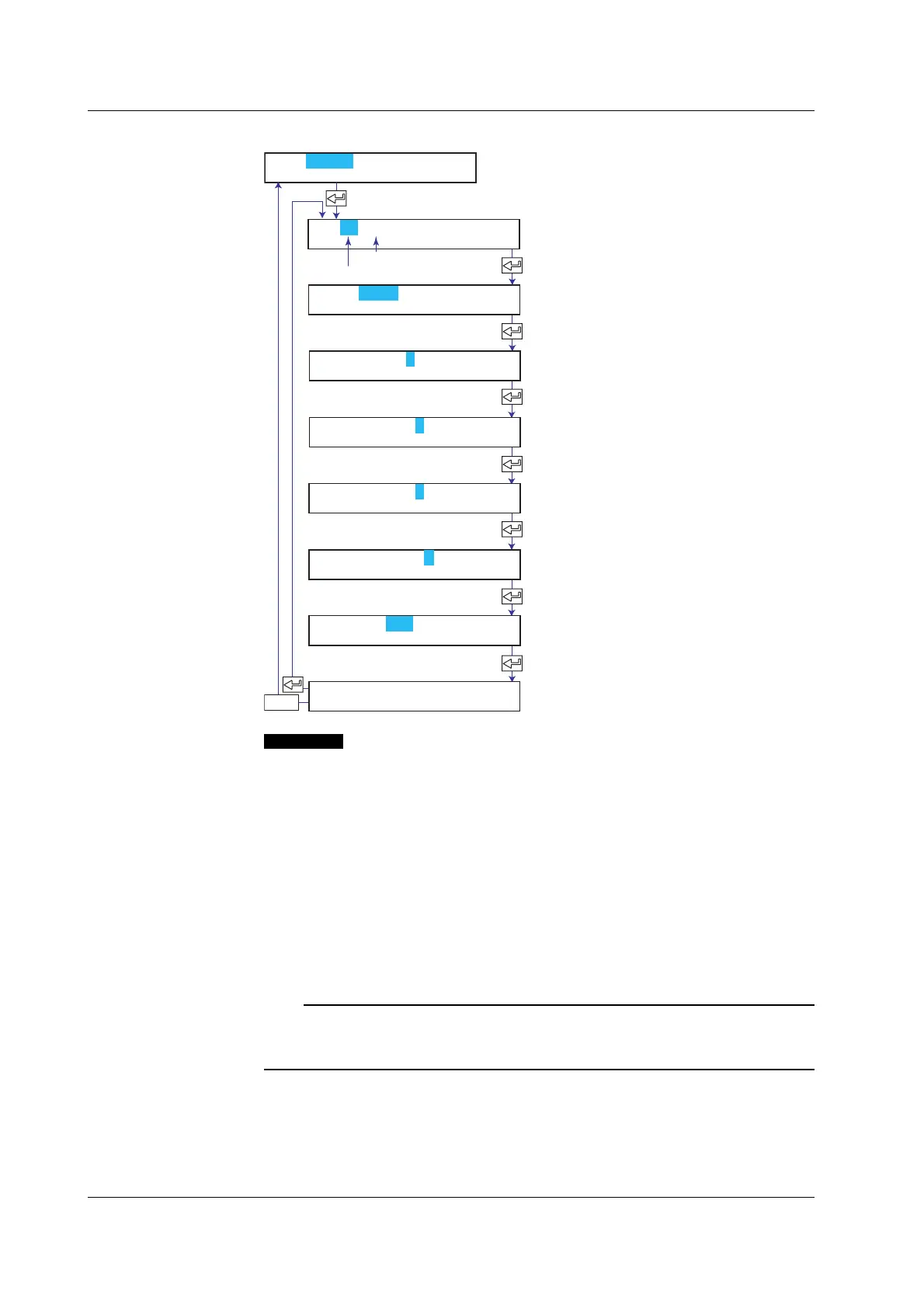

1-5V Input
Select 1-5V.
Set the channel range.
Set the left span value.
Set the right span value.
Set the left scale value.
Set the right scale value.
Turn On or Off the low-cut function.
The new setting takes effect.
(Select the right scale value.)
ESC/?
Set=Range
CH=01-01
Mode=1-5V
Span left= 1,000
Span right= 5,000
Scale left= 0.00
Scale right= 200.00
Low-cut=Off
01-01 Channel
Setting complete
First channel
Last channel
Description
• Span Left and Span Right
Selectable span left range: 0.8 to 1.2 V
Selectable span right range: 4.8 to 5.2 V
• Scale Left and Scale Right
Selectable range (mantissa): –20000 to 30000
Decimal position: XXXXX, XXXX.X, XXX.XX, XX.XXX, X.XXXX
The decimal position is the position specified by scale left.
Make sure that scale left is less than scale right.
• Low-cut
On: Cuts values below 0% of the recording span (set to 0% (scale left value)).
Off: Does not apply the low-cut function.
Note
• The displayable/printable range of scale values is –19999 to 30000 excluding the decimal.
• If the leftmost value of the scale is set to –20000 (excluding the decimal), the value when the
low-cut function is applied is displayed as “–Over.”
5.1 Setting the Input range
