5-7
IM 04P02B01-01E
Frequently Used Setup Operations (Setting Mode)
5

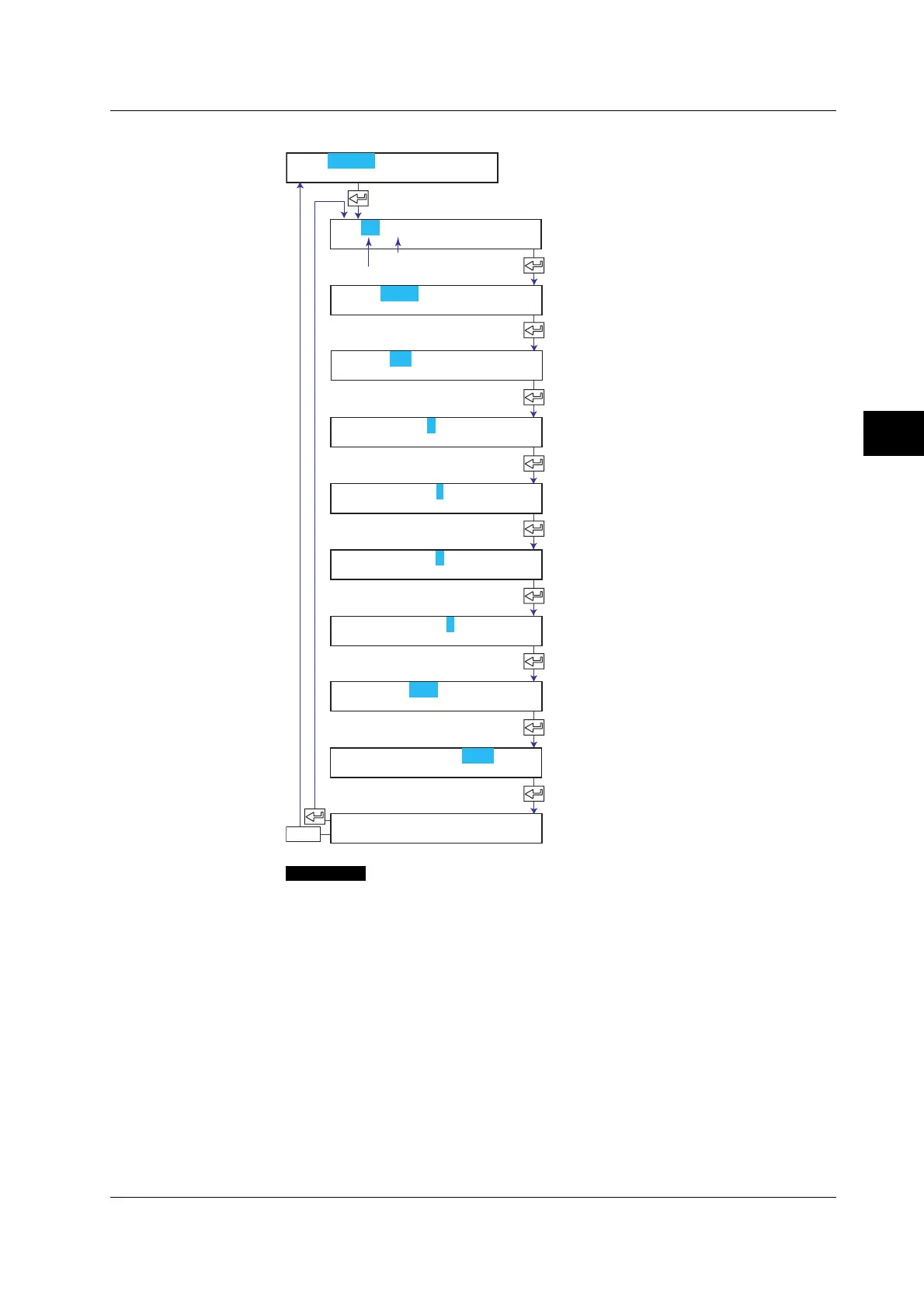

Square Root Computation
Select SQRT.
Set the channel range.
Select the range type of DC voltage.
20 mV, 60 mV, 200 mV, 2 V, 6 V, 20 V,
or 50 V
Set the left span value.
Set the right span value.
Set the left scale value.
Set the right scale value.
Turn On or Off the low-cut function.
Set the low-cut point.
0.0 to 5.0% of the recording span, 0.1 steps.
The new setting takes effect.
ESC/?
Set=Range
CH=01-01
Mode=SQRT
Range=2V
Span left= -2.000
Span right= 2.000
Scale left= 0.00
Scale right= 200.00
Low-cut=Off
Low-cut point=0.0
01-01 Channel
Setting complete
First channel
Last channel
Description
• Input Type in Which Square Root Computation Can Be Performed
Square root computation can be performed when set to DC voltage input.
• Span Left and Span Right
Same as the selectable span range of the DC voltage input.
Make sure that span left is less than span right.
• Scale Left and Scale Right
Selectable range (mantissa): –20000 to 30000
Decimal position: XXXXX, XXXX.X, XXX.XX, XX.XXX, X.XXXX
The decimal position is the position specified by scale left.
Make sure that scale left is less than scale right.
• Low-cut and Low-cut Point
If low-cut is set to On, set the low-cut point.
Selectable range of the low-cut point: 0.0 to 5.0% of the recording span
Values below the low-cut point is set to 0% (scale left value) of the recording span.
5.1 Setting the Input range
To Next Page
