4-3
IM 04P02B01-01E
Common Operations for Setting Functions and Setup Guide
4

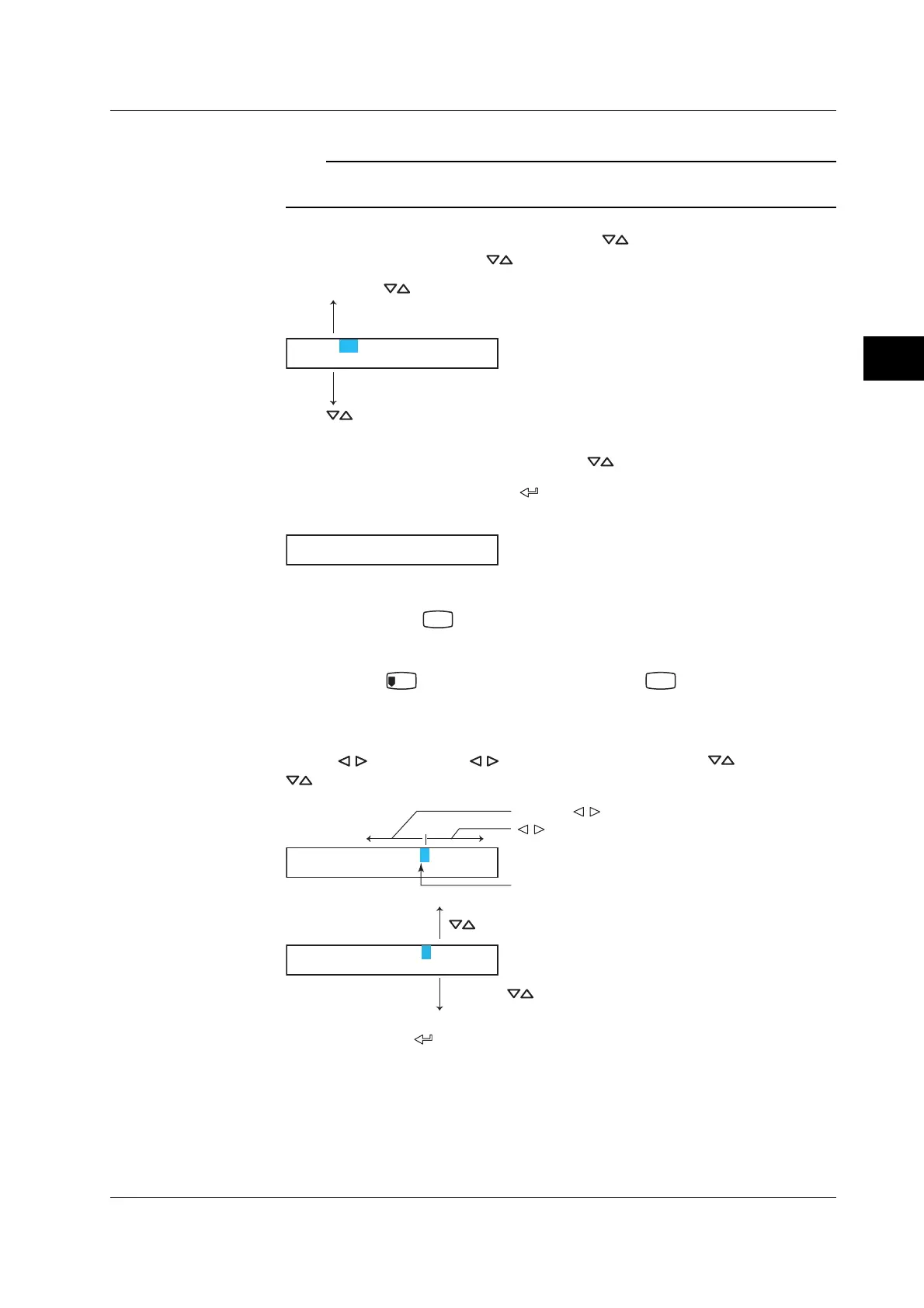

Changing the Settings
Note
The comment line shows useful information such as a description of the setup item and the
range of selectable values. Read the comment and change the items as necessary.
The selected item change each time you press the key. The selected item changes
in reverse order if you press the
key while holding down the SHIFT key.
SHIFT key + key
key
Mode=TC
Skip
Volt
RTD
1-5V
This manual denotes the operation of pressing a key while holding down the SHIFT key
as SHIFT + the other key (for example: SHIFT + key).
After you make a selection, press the
key. The next screen appears.
When the Setting complete screen appears, the changed item is applied.
01-01 Channel
Setting complete
Using the ESC Key
If you press the ESC (
MENU
) key, the operation is cancelled, and the display returns to a
higher level menu. In other words, if you do not show the Setting Complete screen, the
changes you made up to that point are discarded.
Press the ESC (
MENU
1
) key while holding down the SHIFT (
FEED
) key to show or hide the
comment that is displayed at the bottom half of the screen.
Entering Values
Use the key or SHIFT + key to move the cursor. Use the key or SHIFT +
key to change a digit value. You repeat these steps to enter the value.
SHIFT key + key
key
Cursor
Span left= -2.000
-2.000/ 2.000V
SHIFT key + key
key
Span left= -1.500
-2.000/ 2.000
8
7
6
4
3
2
When you press the key, the change is applied and the next screen is displayed.
4.2 Key Operations
