Part Names and Functions
HELP
When you press the HELP key, a soft key menu of the currently displayed
screen is displayed explanations.
PRT SCN
The PRT SCN key is used to output the measurement screen to a file. When
you press the PRT SCN key, the measured waveforms and lists displayed on
the screen are output to a file.
PRESET
The PRESET key clears all internal settings of the AQ6375E except for the
remote interface (ETHERNET, GP-IB, and RS232) settings.

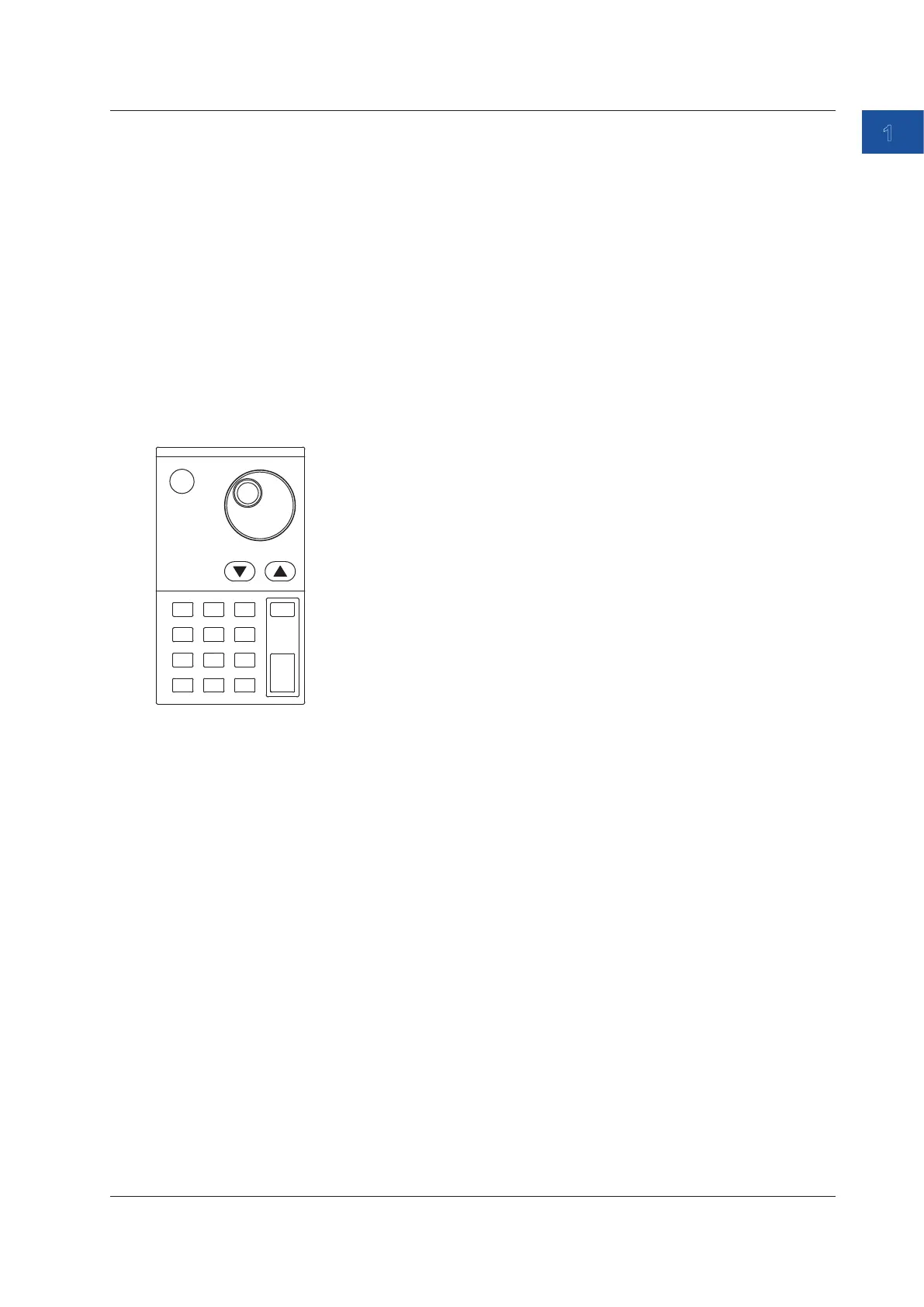

DATA ENTRY Section
This unit allows you to enter measurement conditions and various other
parameters through the DATA ENTRY section. Three different entry
methods can be used in the DATA ENTRY section, the rotary knob, the
arrow keys, and the numeric keypad.
Rotary knob
When you press a soft key which has a parameter, the current setting is
displayed in the parameter entry window. Turning the rotary knob raises
or lowers the numeric value shown in the parameter entry window (turn
clockwise to increase and counterclockwise to decrease), and the internal
setting changes at the same time.
Note that if the COARSE key is on (lamp on),
the numeric value increase/decrease step will be larger.
      Arrowkeys(▲,▼)
      Pressingthe▲keyhasthesameeffectasturningtherotaryknob
clockwise.Likewise,pressingthe▼keyhasthesameeffectasturningthe
rotary knob counterclockwise. Holding an arrow key down for 0.5 second or
longer activates auto-repeat.
If the multi-marker function has been selected, the
arrow keys can be used to scroll the marker value display in the data area.
COARSE Key
You can raise the digit of settings being entered or the increase/decrease
step for numerical values. Each time you press this key the setting toggles
between ON and OFF. When ON, the lamp lights.
Numeric keypad
You can enter numerical values directly into the parameter input window by
pressing keys of the numeric keypad. After you have pressed a parameter
soft key to display the current setting in the parameter display area, you
can press a numeric keypad key to display the numeric keypad input area
including the entered numeric value. If the value entered with the numeric
keypad is not in the allowed value range, the nearest allowed value will be
set.
1.3 Panel Keys and Knobs
DATA ENTRY
COARSE
7
8
9
4
5
6
1
2
3
0
.
-
BACK
SPASE
ENTER
