YOKOGAWA AQ6375E User Manual

4-4
IM AQ6375E-02EN

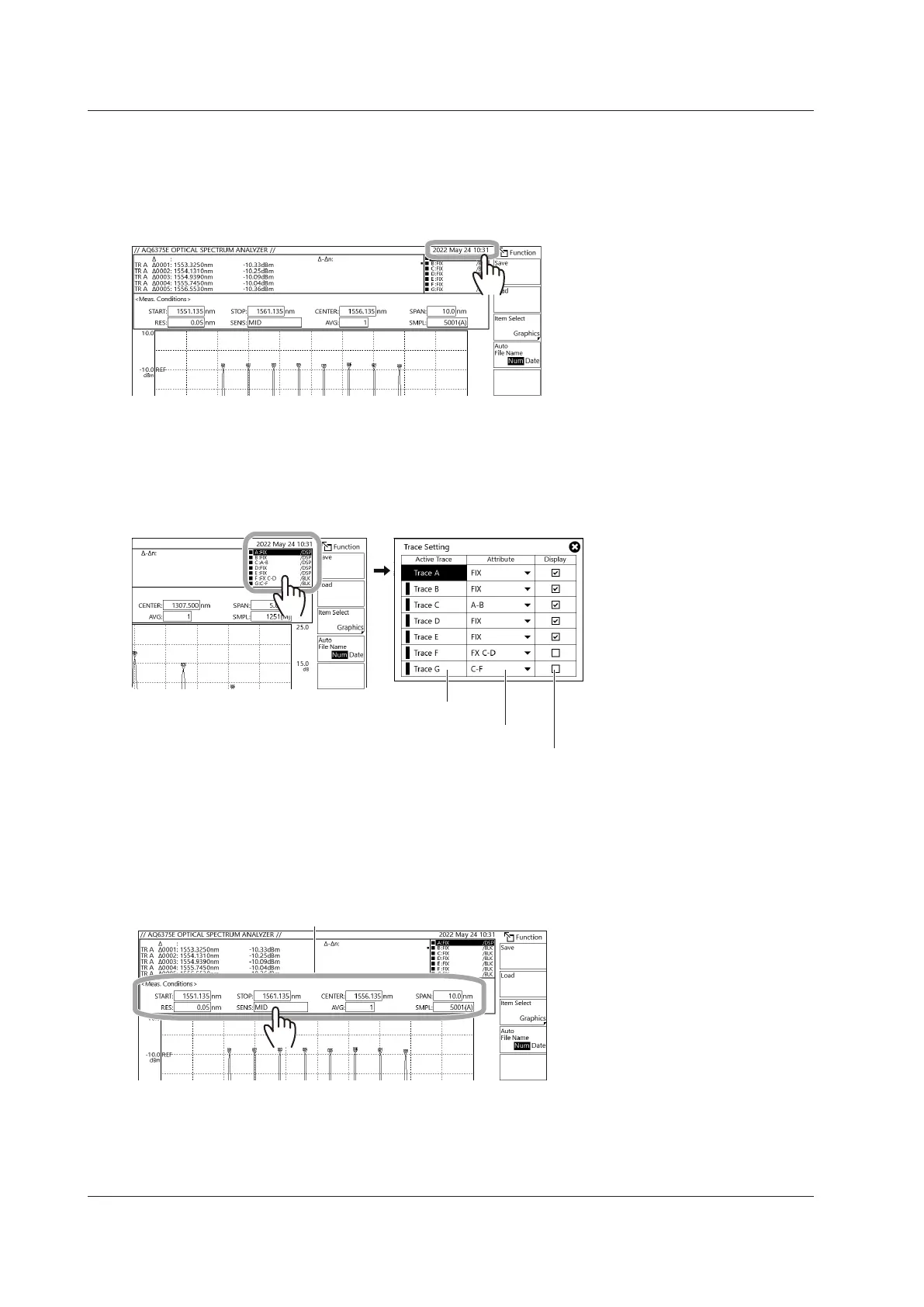

Clock Operation
When you tap the clock, a Set Clock Mode window appears, which you can use to set the clock.
For the setup procedure, see section 4.5.
Time
Trace Operation
When you tap the trace setting area, a Trace Setting window appears, which you can use to set the
trace conditions. For details on trace functions, see chapter 4 in IM AQ6375E-01EN.
Trace setting area
Select the trace you want to activate.
Select the trace operation mode.
Shows and hides traces
Measurement Condition Operation
When you tap a parameter in the measurement condition area, a parameter input window or
parameter selection window appears, which you can use to set the parameter.
For the setup procedure, see chapter 2 in IM AQ6375E-01EN.
Parameters in the measurement condition area
4.1 Touch Panel Operations
