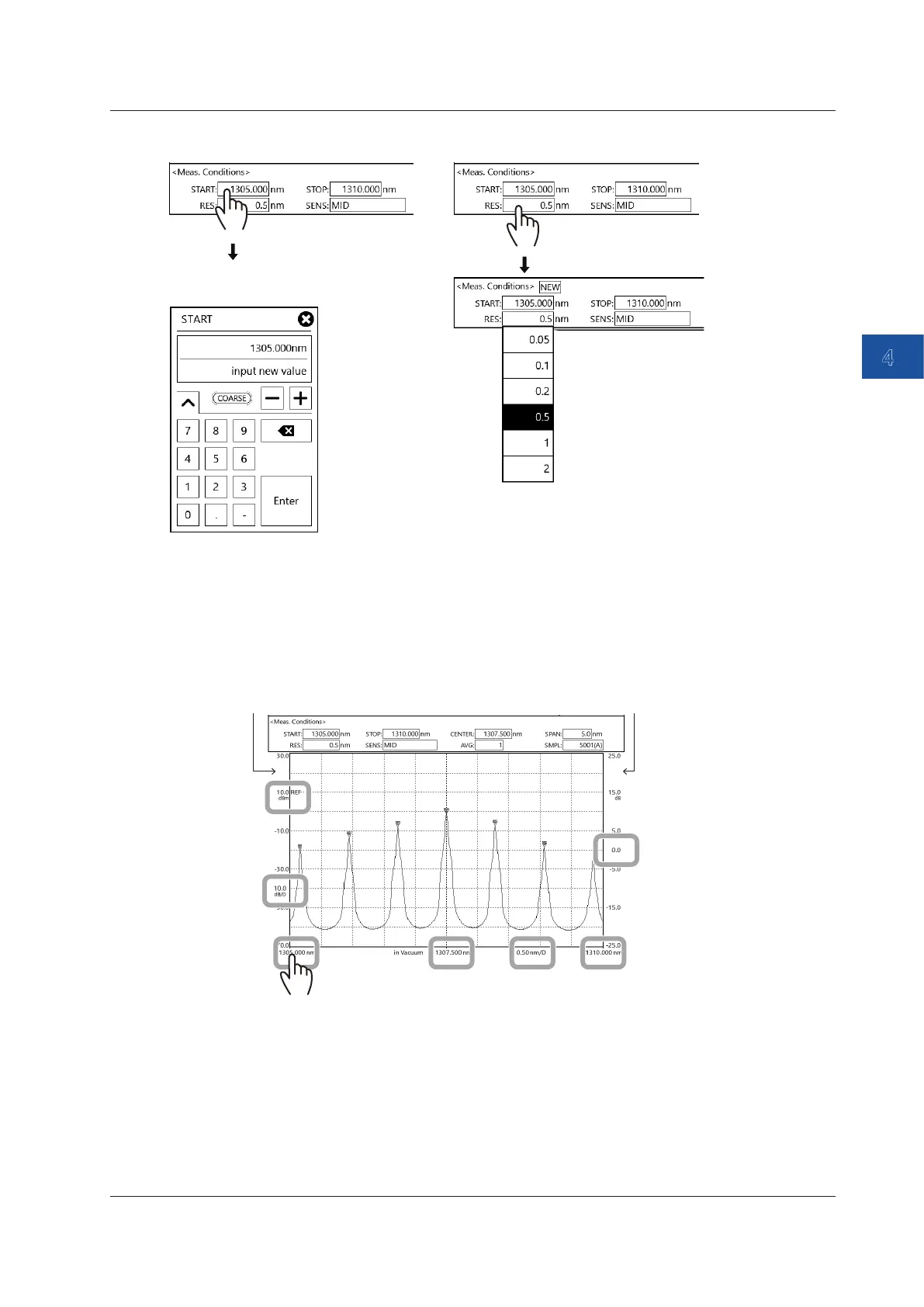

Example of a parameter input window
(START)
Parameter input window
(see section 4.4)
Example of a parameter selection window
(RES)
Level Scale Operation (Main Scale/Sub Scale)
When you tap the reference level, DIV value, or the like on the main scale or the offset value or the
like on the sub scale, a parameter input window or parameter selection window appears, which you
can use to set the parameter.
For the setup procedure, see sections 2.5 and 2.6 in IM AQ6375E-01EN.
Main scale (vertical scale)
Reference level
DIV value
Sub scale
Offset
Start wavelength
Center value
Wavelength per
division scale
Stop wavelength
4.1 Touch Panel Operations
