3.4 Remote Transmitter
Installation
WARNING
Installation of the magnetic owmeter must be
performed by expert engineer or skilled personnel.
No operator shall be permitted to perform procedures
relating to installation.
3.4.1 Installation Location
IMPORTANT
Install the product in a location where it is not exposed
to direct sunlight. For ambient temperature, read the
applicable general specications as listed in Table 1.1.
The product may be used in an ambient humidity where
the RH ranges from 0 to 100%. However, avoid long-
term continuous operation at relative humidity above
95%.
3.4.2 Mounting of AXW4A Transmitter
AXW4A Remote Transmitter can be mounted on a 2-inch
pipe in a vertical or horizontal position depending on the
installation site.
Vertical Pipe Mounting
Mounting fixture
2-inch pipe
Nut
Washer
Screw
U-bolt

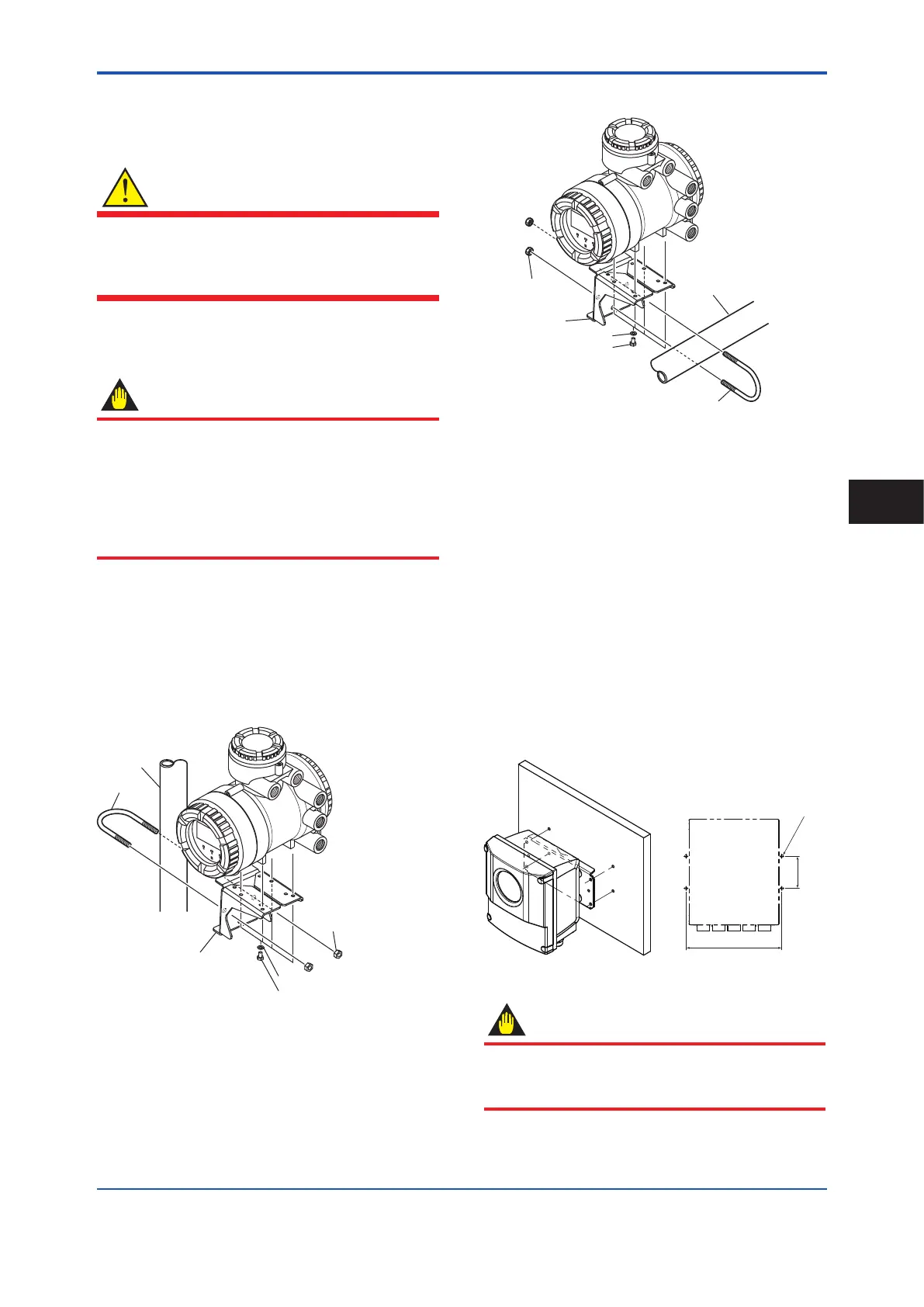

Figure 3.4.1 2-inch Pipe Vertical Mounting
1. Fix the product on the mounting xture using four
screws.
2. Fix the mounting xture with the product installed on a
2-inch pipe using a U-bolt.
Horizontal Pipe Mounting
2-inch pipe
Nut
U-bolt
Washer
Screw
Figure 3.4.2 2-inch Pipe Horizontal Mounting
1. Fix the product on the mounting xture using four
screws.
2. Fix the mounting xture with the product installed on a
2-inch pipe using a U-bolt.
3.4.3 Mounting of AXG1A Transmitter
AXG1A Remote Transmitter can be mounted using
surface mounting, 2-inch pipe mounting, or panel
mounting.
Surface Mounting (Wall Mounting)
M6 Screw
194 (7.64)
65
(2.56)
For surface mounting, use the mounting
fixture provided, using M6 screws.
These M6 screws must be provided by the user.
Figure 3.4.3 Surface Mounting
IMPORTANT
Mounting xture on equipment intended to be mounted
on a wall or ceiling shall withstand a force of four times
the weight of the equipment (AXG1A: 3.5 kg (7.7 lb)).
Installation
3
To Next Page
