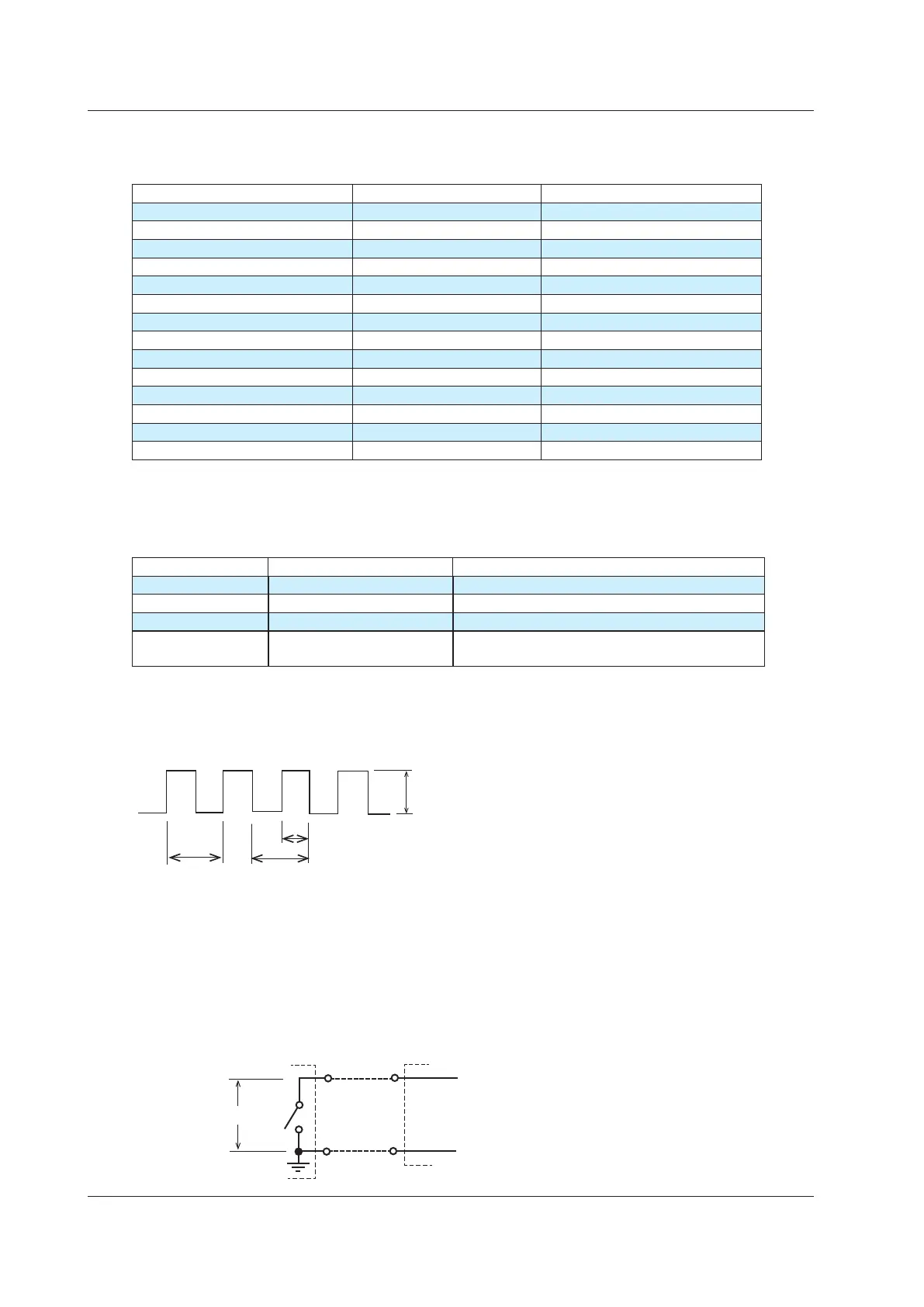

Resistance of an RTD
Resistance corresponding to the following temperatures is generated for each RTD type.
RTD Source Range Notes
PT100 (PT100 (3851)) -200.0°C to 800.0°C EC 60751
*
JPT100 (PT100 (3916)) -200.0°C to 510.0°C JIS C 1604 1989 (JPt100)
PT100 (3850) -200.0°C to 630.0°C JIS C 1604 1989 (Pt100)
PT100 (3926) -200.0°C to 630.0°C Minco Application Aid #18
PT200 -200.0°C to 630.0°C IEC 60751
*
PT500 -200.0°C to 630.0°C IEC 60751
*
PT1000 -200.0°C to 630.0°C IEC 60751
*
Cu10 -100.0°C to 260.0°C Minco Application Aid #18
Ni120 -80.0°C to 260.0°C Minco Application Aid #18
PT50 -200.0°C to 630.0°C IEC 60751
*
PT50G -200.0°C to 800.0°C GOST R 8.625-2006
PT100G -200.0°C to 630.0°C GOST R 8.625-2006
Cu50M -180.0°C to 200.0°C GOST R 8.625-2006
Cu100M -180.0°C to 200.0°C GOST R 8.625-2006
*: Complies also with JIS C 1604
Frequency
Pulse signals are generated at the following frequencies.
Range Source Range Notes
500 Hz 1.00 Hz to 550.00 Hz
5000 Hz 1.0 Hz to 5500.0 Hz
50 kHz 0.001 kHz to 50.000 kHz
CPM 1.0 to 1100.0/min Generates a signal with a specified number of
pulses per minute
The sweep function cannot be used.
For source range CPM, you can set the frequency using the number of pulses to generate per
minute.
This instrument outputs waveforms at 50% duty cycle.
Amplitude
1 pulse
Frequency = pulse count/s, CPM = pulse count/min
Duty: (h/t)×100%
t
h
Contact Output
If the contact output is set on during frequency output, a contact signal can be output with the
specified frequency or number of pulses.
The instrument’s
output terminal
H
L
H
L
Input terminal of the
output destination device
0.5 to 30 VDC
