3-12
IM CA500-01EN

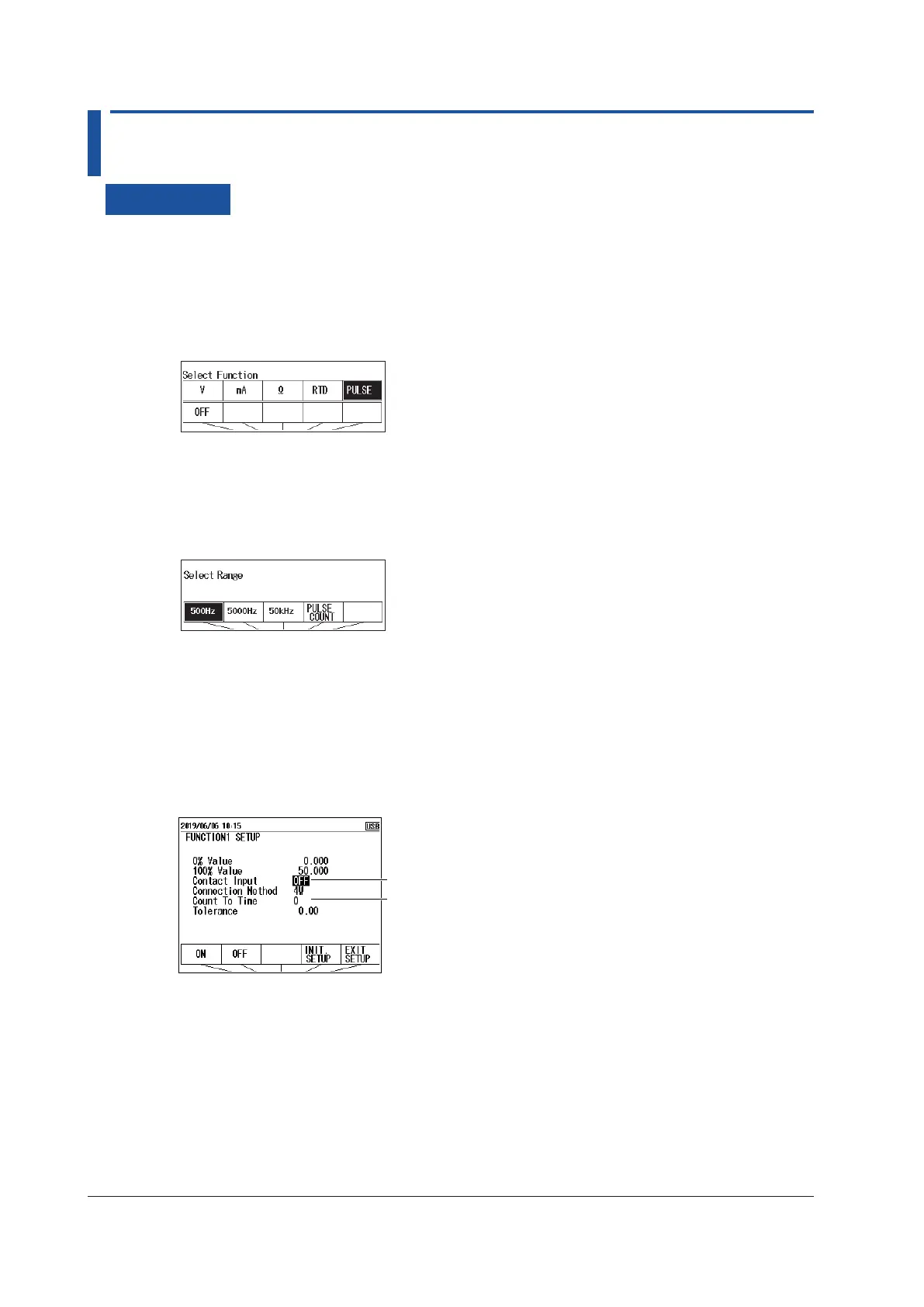

3.6 Frequency and Pulse Measurement
Procedure
Setting the Function
1.
With the source value and measurement value displayed, press FUNCTION 1. The function
options are displayed.
2.
Use the arrow keys to select PULSE. The display returns to the source and measurement value
display.
Setting the Measurement Range
3.
Under Function 1, press RANGE.
4.
Use the arrow keys to set the measurement range. The display returns to the source and
measurement value display.
Setting the 0% and 100% Values (when necessary)
5.
Set the 0% and 100% values according to section 3.7, “Setting the 0% and 100% Values”.
Setting the Contact Input and Setting the Count Time of the Pulse Count (when
the measurement range is set to PULSE COUNT)
6.
With the source value and measurement value displayed, press SETUP under Function 1.
7.
User cursor keys to select Contact Input. Options appear in the selection menu.
Set the contact input.
Set the count time.
8.
Use the arrow keys to set the contact input.
9.
Use the cursor keys to select Count To Time, and then press ENTER. The settings are
displayed at the bottom of the screen.
10.
Use the arrow keys to select the measurement time, and then press ENTER.
You can set the measurement range to 1 minute to 60 minutes in steps of number 1 minute.
To Next Page
