3.8 Setting the Tolerance (CA550)
Procedure
1.
With the source value and measurement value displayed, press SETUP under Function 1.
2.

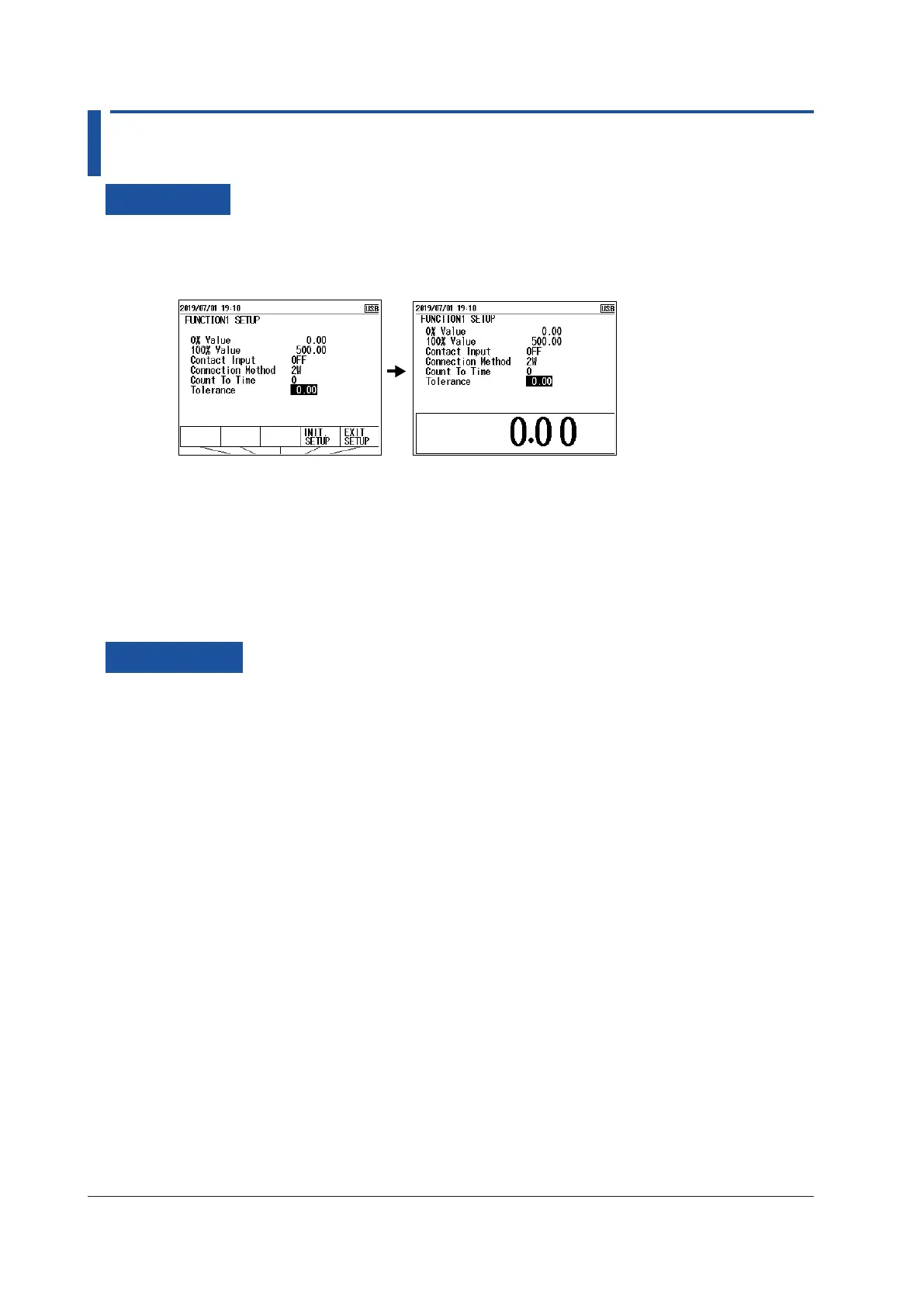

Use the cursor keys to select the Tolerance value, and then press ENTER. The settings are
displayed at the bottom of the screen.
3.
Use the arrow keys to select the tolerance, and then press ENTER. The range is 0.00 to
10.00%.
4.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and the screen
reverts to show the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 1.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
Description
Set the tolerance relative to the reference value for making pass/fail judgments on measurement
values.
The reference value is an output value (specified according to the specifications of the device to be
calibrated) mapped to this instrument’s source value (the input value to the device to be calibrated).
The pass/fail judgment result is recorded in the file saved by the CA550 program sweep.
For details on saving program sweeps, see section 5.2, “Saving Sweeps.”
