3.5 Temperature Measurement Using RTDs
Procedure
Setting the Function
1.

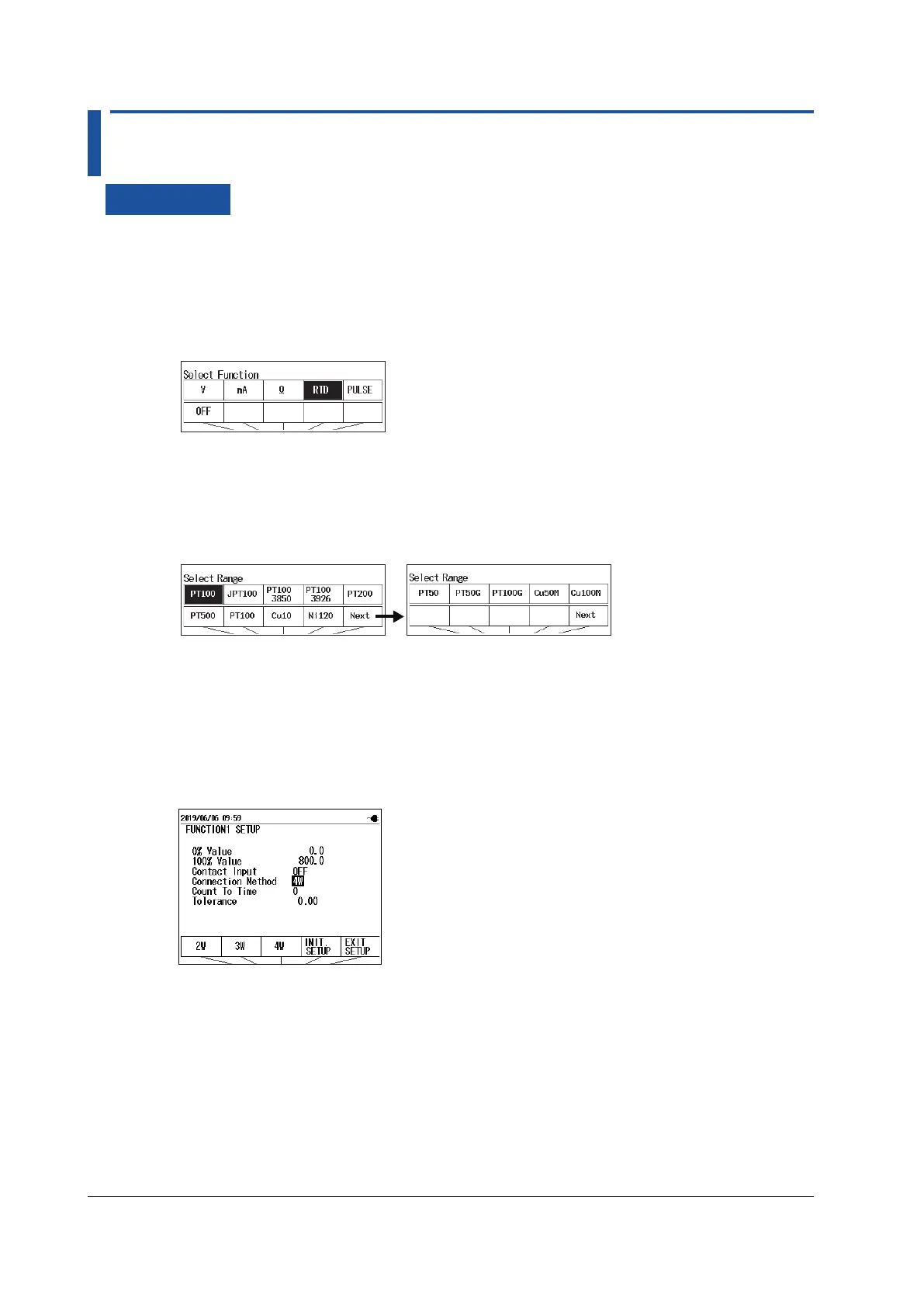

With the source value and measurement value displayed, press FUNCTION 1. The function
options are displayed.
2.
Use the arrow keys to select RTD. The display returns to the source and measurement value
display.
Setting the Measurement Range (RTD Type)
3.
Under Function 1, press RANGE.
4.
Use the arrow keys to set the RTD type. The display returns to the source and measurement
value display.
Setting the 0% and 100% Values (when necessary)
5.
Set the 0% and 100% values according to section 3.7, “Setting the 0% and 100% Values”.
Setting the Wiring System
6.
With the source value and measurement value displayed, press SETUP under Function 1.
7.
User cursor keys to select Connection Method. Wiring systems appear in the selection menu.
8.
Use the arrow keys to set the wiring system.
9.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and the screen
reverts to show the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 6.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
