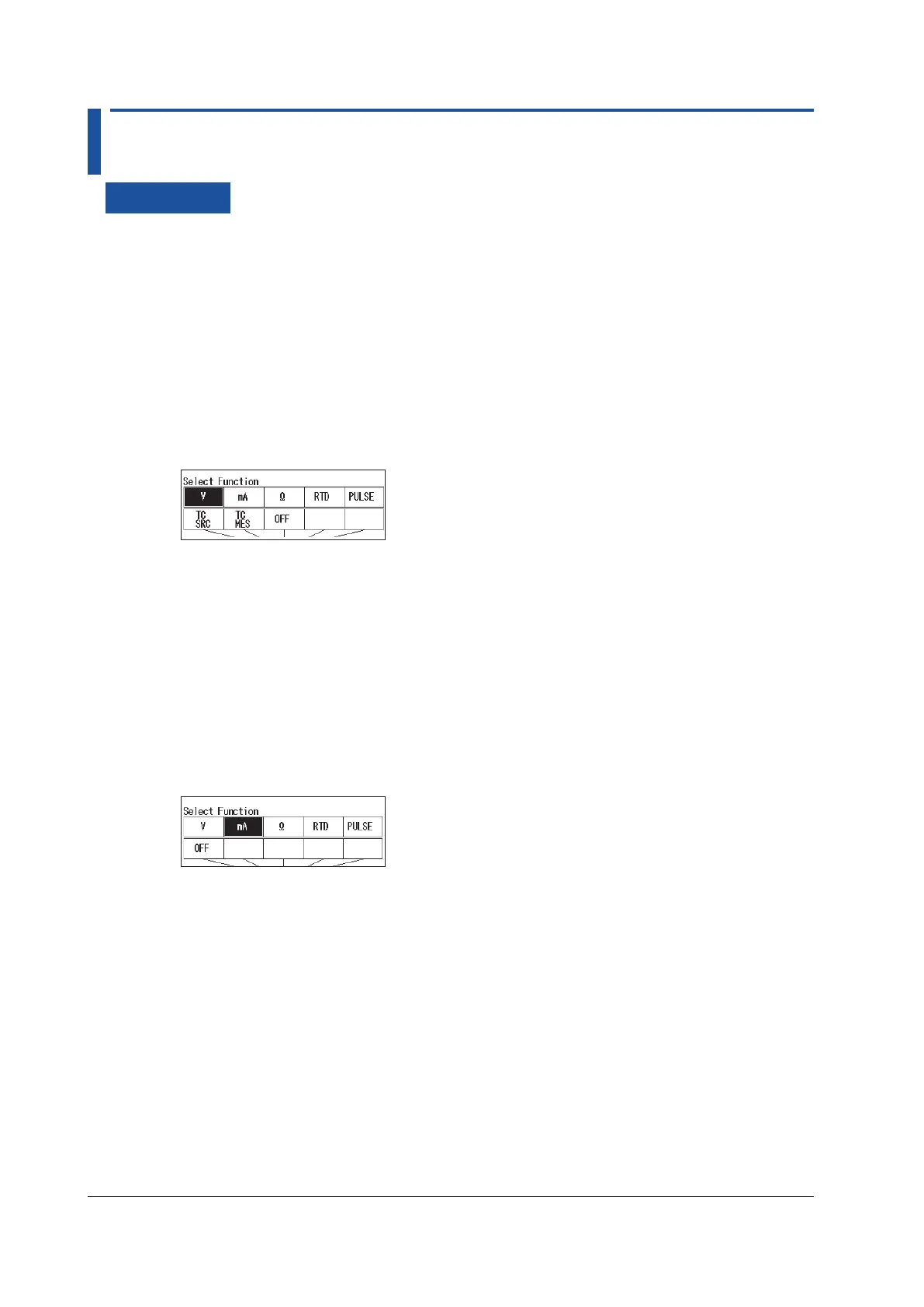

4.2 Setting Calibration Conditions
Procedure
Setting the Source and Measurement
Set the source range and measurement range of this instrument according to the input signal and
output signal of the device to be calibrated.
Setting the Source Range (Function 2)
For details on the source range, see chapter 2.
1.
With the source value and measurement value displayed, press FUNCTION 2. The function
options are displayed.
2.
Use the arrow keys to set the function of your choice. The display returns to the source and
measurement value display.
3.
Under Function 2, press RANGE.
4.
Use the arrow keys to set the source range. The display returns to the source and measurement
value display.
Setting the Measurement Range (Function 1)
For details on the measurement range, see chapter 3.
1.
With the source value and measurement value displayed, press FUNCTION 1. The function
options are displayed.
2.
Use the arrow keys to set the function of your choice. The display returns to the source and
measurement value display.
3.
Under Function 1, press RANGE.
4.
Use the arrow keys to set the measurement range. The display returns to the source and
measurement value display.
