YOKOGAWA CA550 User Manual

4-3
IM CA500-01EN
4.2 Setting Calibration Conditions
1
2
3
4
5
6
7
Index
Calibrating Field Instruments (CA550)

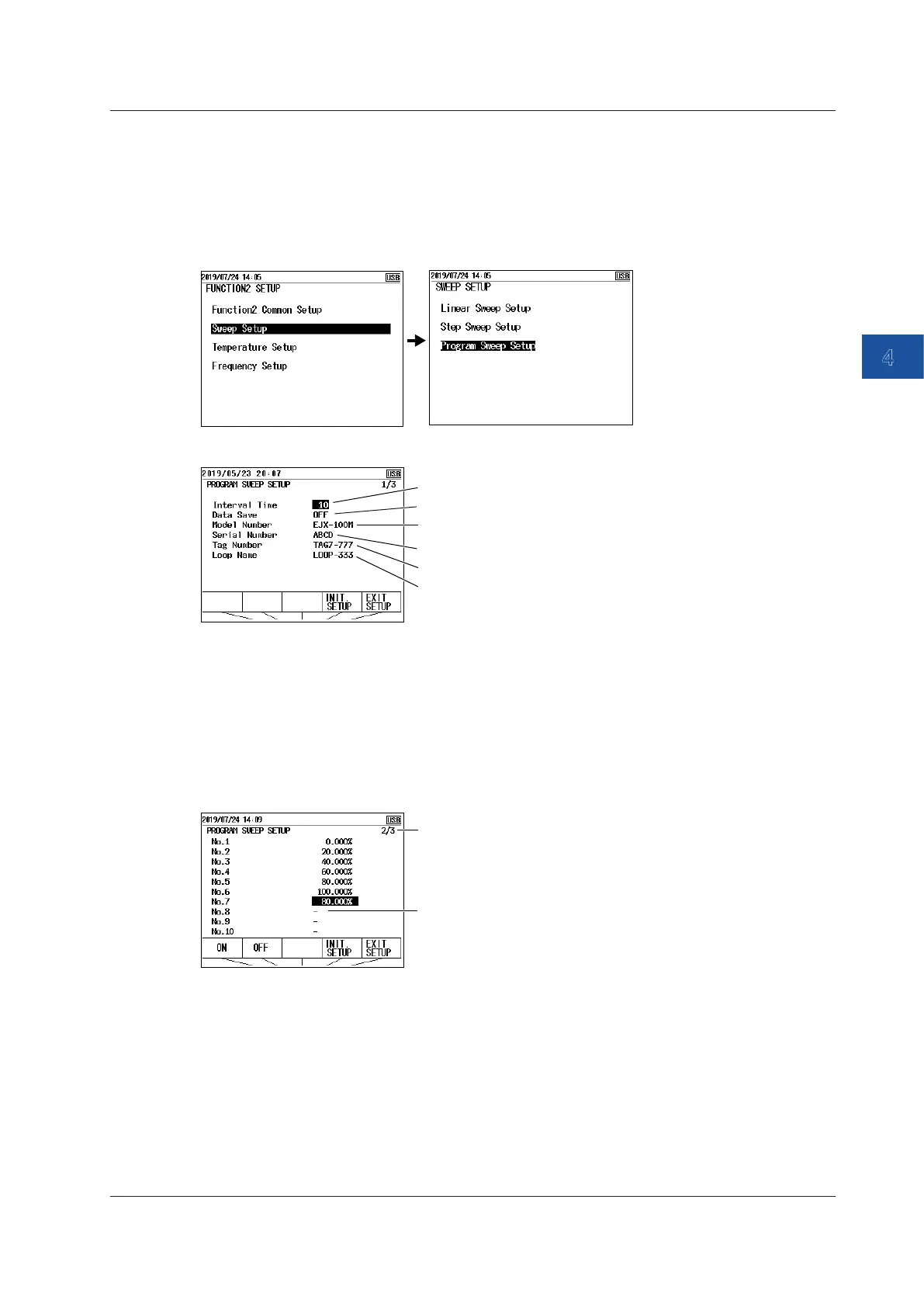

Setting a Program Sweep
Set the program sweep to generate signals at each calibration point.
For details on program sweep, see section 2.9, “Sweep Source”.
1.
With the source value and measurement value displayed, press SETUP under Function 2.
2.
Select Sweep Setup, and press ENTER.
3.
Select Program Sweep Setup, and press ENTER.
Turn data save on or off.
Set the interval time.
Set the loop number of the calibration target.
Set the tag number of the calibration target.
Set the model of the calibration target.
Set the serial number of the calibration target.
* Output settings are on pages 2/3 and 3/3.
4.
Set the interval time, data save, and device information.
Set data save to on.
Setting the Source Value
5.
Use the cursor keys to display page 2/3 of Program Sweep Setup.
6.
Set the source value of each calibration point in order by number from No. 1.
If a number is set to OFF, the instrument sweeps up to that number and sweeping stops.
Set the source value on
page 2/3 or 3/3.
OFF
Confirming the Settings
7.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and a screen
appears showing the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 2.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
