YOKOGAWA CA550 User Manual

1-9
Features
IM CA500-01EN
1
2
3
4
5
6
7
Index

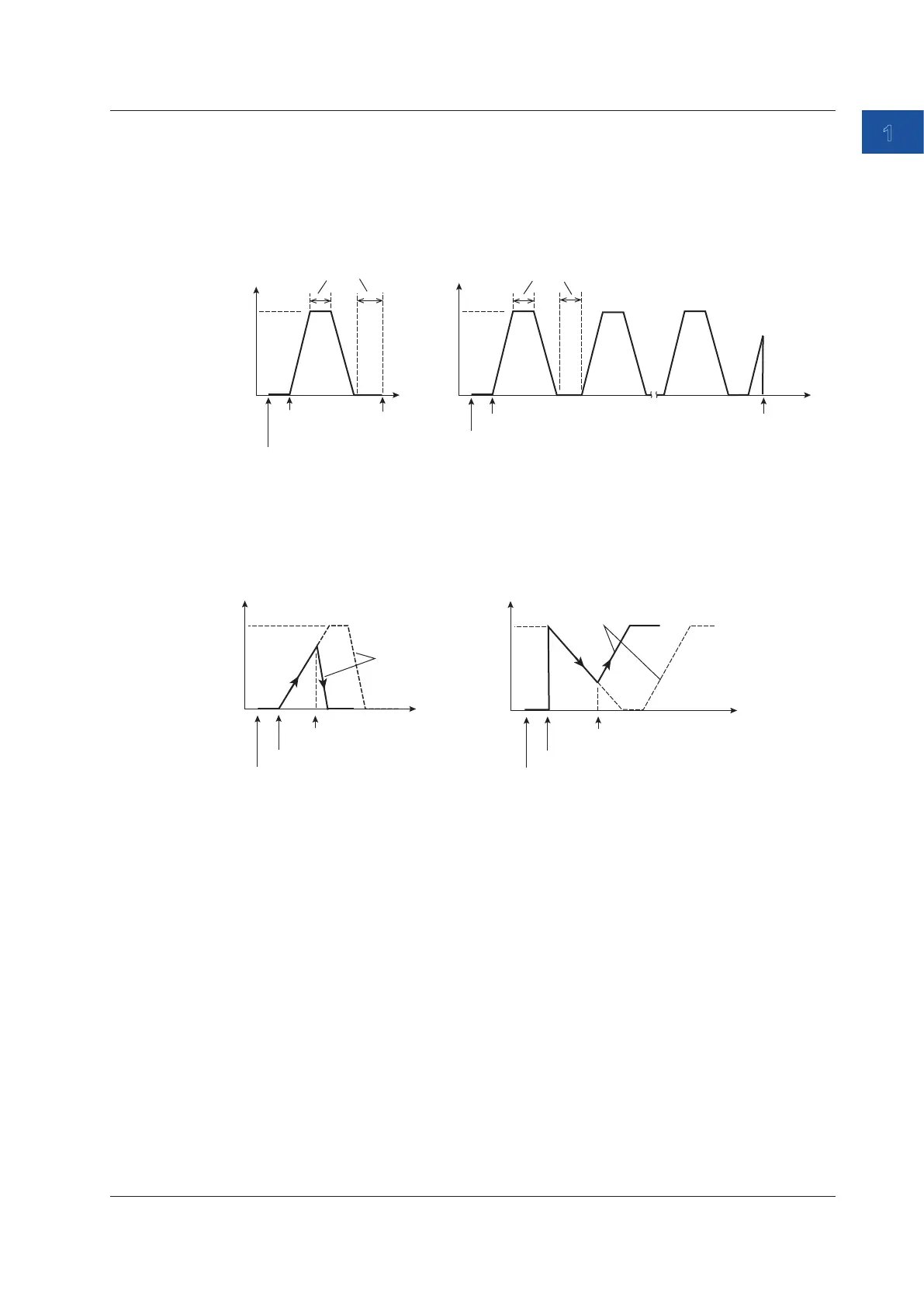

Repetition
Sweeping is repeated until the source is turned off. If sweeping is performed for one iteration,
sweeping stops automatically when the interval time elapses after sweeping.
100%
0%
Output on (OUTPUT key)
Sweep start
(UP key)
Sweep stop
Interval time
100%
0%
Output on (OUTPUT key)
Sweep start (UP key)
Repetition: Off
Repetition: On
Output off
(OUTPUT key)
Time
Source
value
Time
Source
value
Interval
time
Operation While Sweeping Is in Progress
If you press UP or DOWN while sweeping is in progress (including the interval time) the suite
direction changes.
100%
0%
Output on (OUTPUT key)
Sweep start (UP key)
Sweep up->Sweep down
Same slope
UP key
Output on (OUTPUT key)
Sweep start
DOWN key
100%
0%
Same slope
Sweep down->Sweep up
(DOWN key)
If you press OUTPUT while sweeping is in progress, the source turns off.
1.3 Sweep Function
