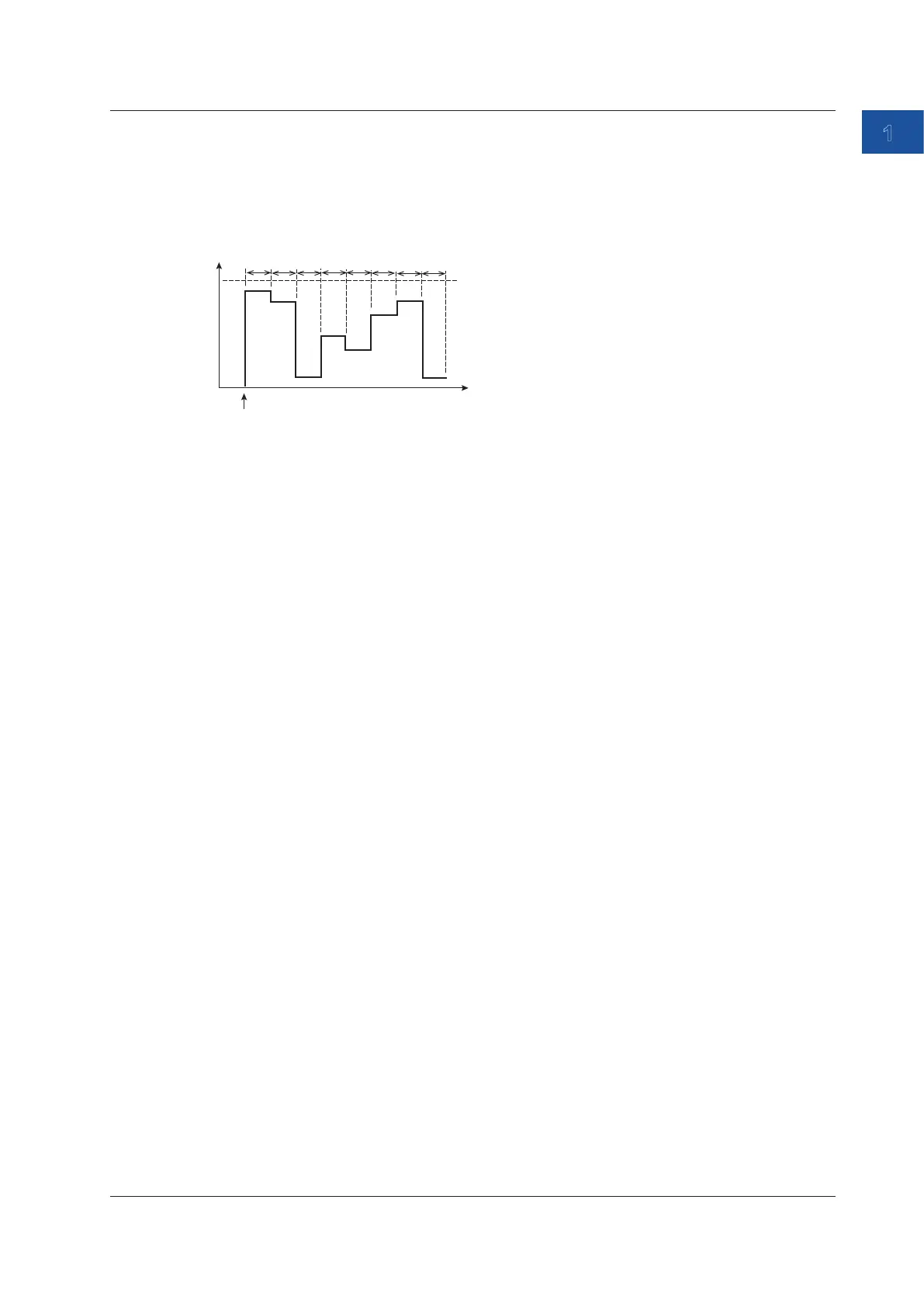

Program Sweep
The CA500 and CA550 generate up to 10 and 20 specified values, respectively, in order by
switching.
You can set source values to match specific calibration points.
100%
0%
Output on
Interval time
t
t
t
t
t
t
t
t
Time
Source
value
1
2
3
4
5
6
7
Source number
8
Interval Time
The time period during which each source value is held.
Source Number
You can assign source values to each number from 1 to 10 on the CA500 and 1 to 20 on the
CA550.
When the output is turned on, the specified source values are generated in order from source
number 1.
The source time of each source number is the interval time.
Saving Data
After sweeping, source values, measure values, and other data can be saved to files.
For details, see section 1.6, “Saving and Loading CA500 Data”, or section 1.7, “Saving and
Loading CA550 Data”.
Calibration Target Information (CA550)
On the CA550, you can set the model number, serial number, tag number, and loop name of
the device to be calibrated and include them in the saved data.
