n Zoom display
Next
20
12
4
mA
15.00
HOLD
FAIL
WASH
Next

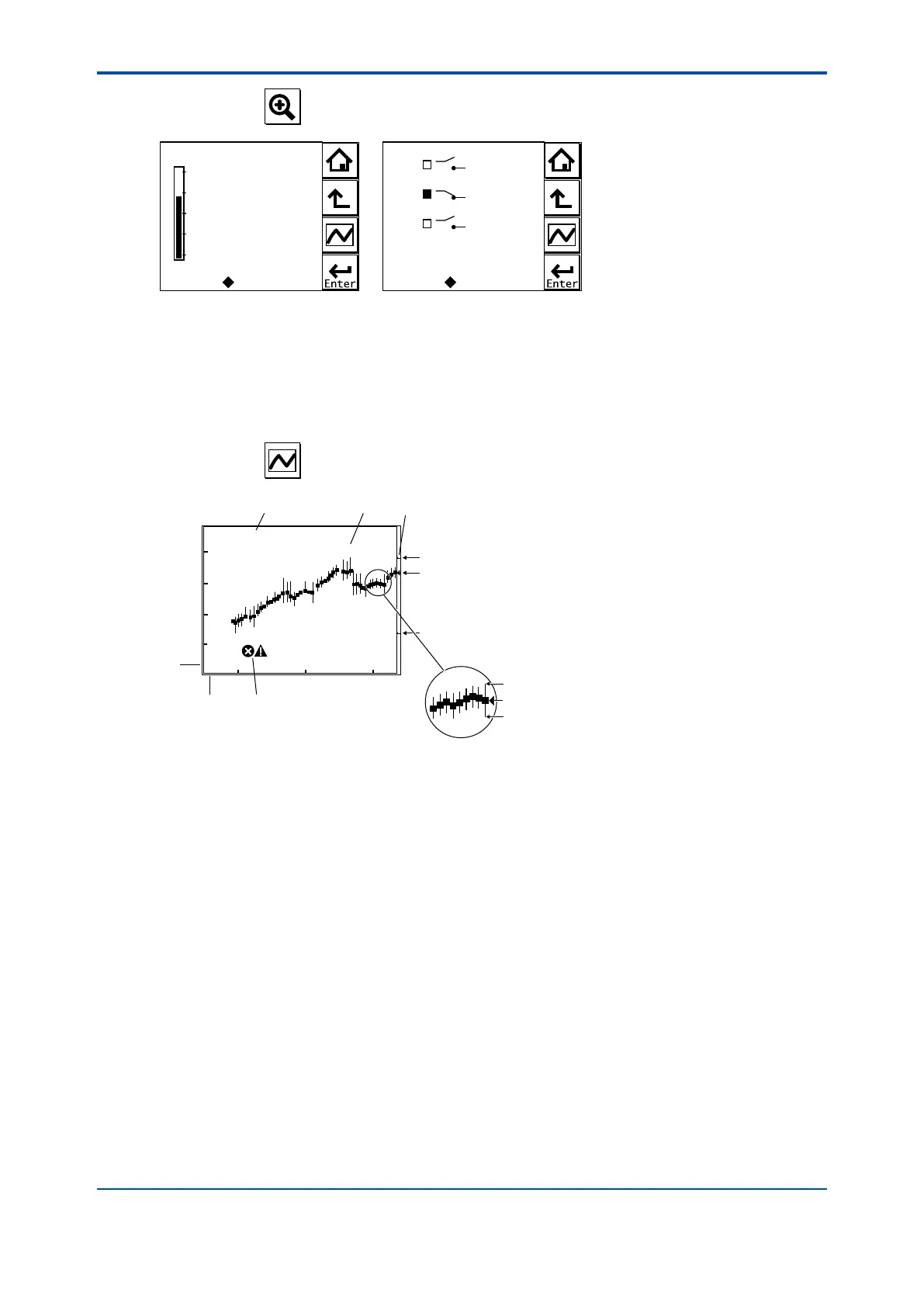

Figure 1.10 Example zoom display
The zoom display appears when the Zoom button on the main display is pressed.
The Zoom display shows an easy-to-read graphical display of the output status. Pressing Next
displays the contact state if communication is set to PH201G distributor. Pressing Next again
displays the status information of the instrument.
n Trend display
12.00
8.40
5.60
2.50
12:00 12:20 12:40
9.10pH
Minimum
Maximum
Average
Current process value
Time
Tag：
Measurement value (pH)
Maximum value on this display
Minimum value on this display
PH
pH1
A
D
B
G
E
FC
Figure 1.11 Example of trend display
Trend display
The Trend display appears when the Trend button on the Zoom display is pressed.
A: X axis; Time axis (user programmable from 15 minutes to 14 days)
B: Y axis; Measurement value axis (user programmable)
C: Tag No.
D: Current measurement value with unit
E: Trend (maximum, minimum and average values during the display update time)
F: Icon (current measurement value, and maximum and minimum values until the display
update)
G: Fault/Warning indicators (indicated in blinking only during Fault/Warning status)
