6.4 Zooming in on details
Pressing on the Main display allows you to check detailed instrument information
(instrument information such as setup, sensor diagnosis, calibration, and module productions
number) through a transition of screens as shown in Figure 6.6.
In case of trouble, when you contact your nearest Yokogawa service center, please inform us
of the module and FLXA202/FLXA21 software revision displayed on the Detail screen and
other display information as well as the module productions number indicated on the nameplate
attached to the instrument.
Next
20
12
4
mA
15.00
New sensor?
“Yes” resets
sensor wellness data.
Yes
No
Reset wellness data
HOLD
FAIL
Next
c.c.(factory) 0.1000/cm
c.c.(adjusted) 0.1000/cm
Temp.comp.1 NaCl
Temp.comp.2 None
Polarization 1%
Sensor Ohm 500.0 Ω
USP 0.000%
Next
Sesor wellness:
Polarization
Cell constant
Heat cycle – – – –
Progress Time – – – –
Reset welness data
Next
2010/02/15 16:04:07
Last calibrated at
-------- ------
Calibration due at
-------- ------
Projected Calibration
-- (no meaning)
Next
SC module(sensor1):
Module Pdn No. S12345
Software Revision 1.10
Next
HOUSING ASSY:
Module Pdn No. 23456789
Software Revision 2.10
HART Device Revision 2
Next
(Fig. 6.8)
*: This screen is displayed only if the PH201G distributor is used and “PH201G” is selected in communication setup.
*

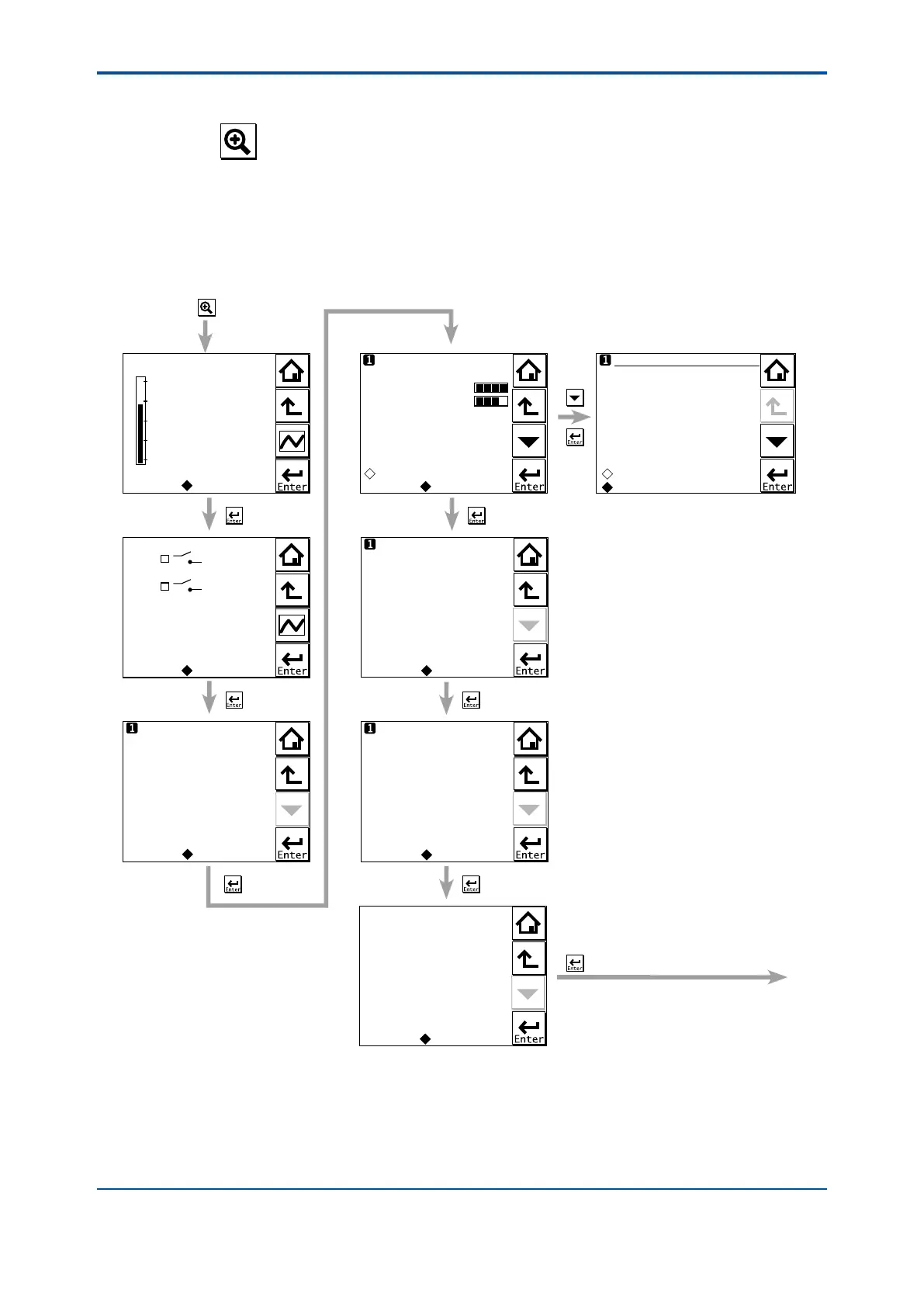

Figure 6.6 Detail display
