YOKOGAWA FLXA21 User Manual

<6. OPERATION OF SC (Conductivity)>
6-5
IM 12A01A02-01E 8th Edition : Oct. 01, 2015-00
6.35
Tag:SC
24.9
4mA 20mAConduct1-TC1
°C
mS/cm
Tag:SC
25.0 °C
mS/cm
10.38

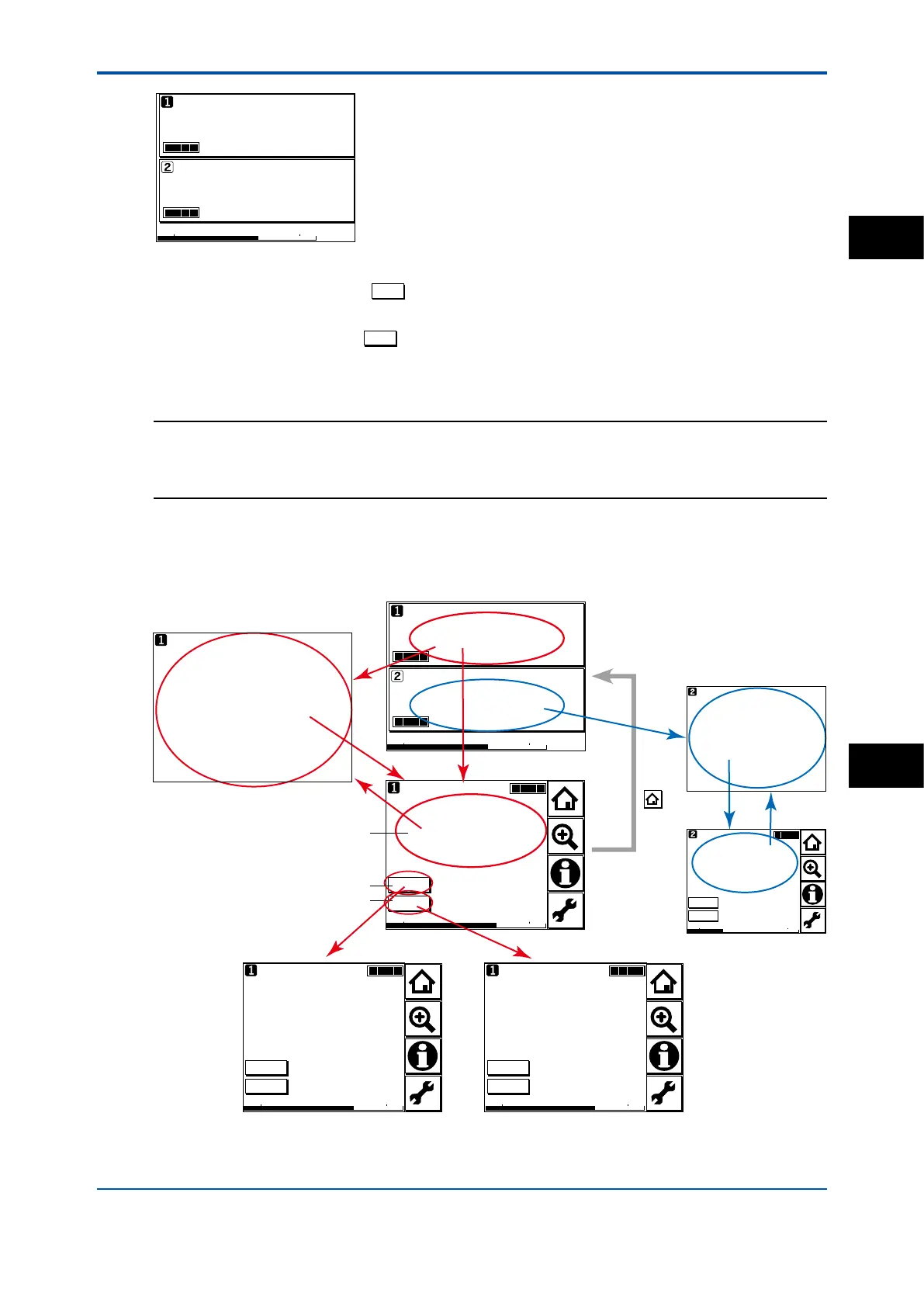

Figure 6.4 Example of home display
On the Home display, pressing of the 1st sensor (top) or 2nd sensor (bottom) causes the
display of the selected sensor to appear on the Main display.
On the Main display, pressing
of the 2nd or 3rd display item causes the 1st display item to
be replaced by the selected item.
NOTE
Measured values to be displayed in the 1st to 3rd display items depend on the user denition
(see section 7.6.1). In the default condition, the 1st display item is conductivity, the 2nd display
item is temperature, and the 3rd display item is empty.
When the MONITOR display is enabled (see section 7.6.5), pressing the 1st display item on the
home display or the main display changes the display to the Monitor display with the enlarged
font of the measured value.
6.35
Tag:SC
24.9
4mA 20mAConduct1-TC1
°C
24.40 mS/cm
mS/cm
Tag:SC
25.0 °C
19.00 mS/cm
mS/cm
10.38
10.38
Tag:SC
19.00
25.0
mS/cm
4mA 20mAConduct1-TC1
°C
mS/cm
25.0
Tag:SC
19.00
10.38
mS/cm
4mA 20mAConduct1-TC1
mS/cm
°C
19.00
Tag:SC
10.38
25.0
mS/cm
4mA 20mAConduct1-TC1
°C
mS/cm
2nd display item
Main display
Home display
3rd display item
1st display item
6.35
Tag:SC
24.40
24.9
mS/cm
4mA 20mAConduct2-TC2
°C
mS/cm
(When the MONITOR display is disabled)
Monitor display
10.38
mS/cm
6.35
mS/cm
Figure 6.5 Change Display
SC
6
