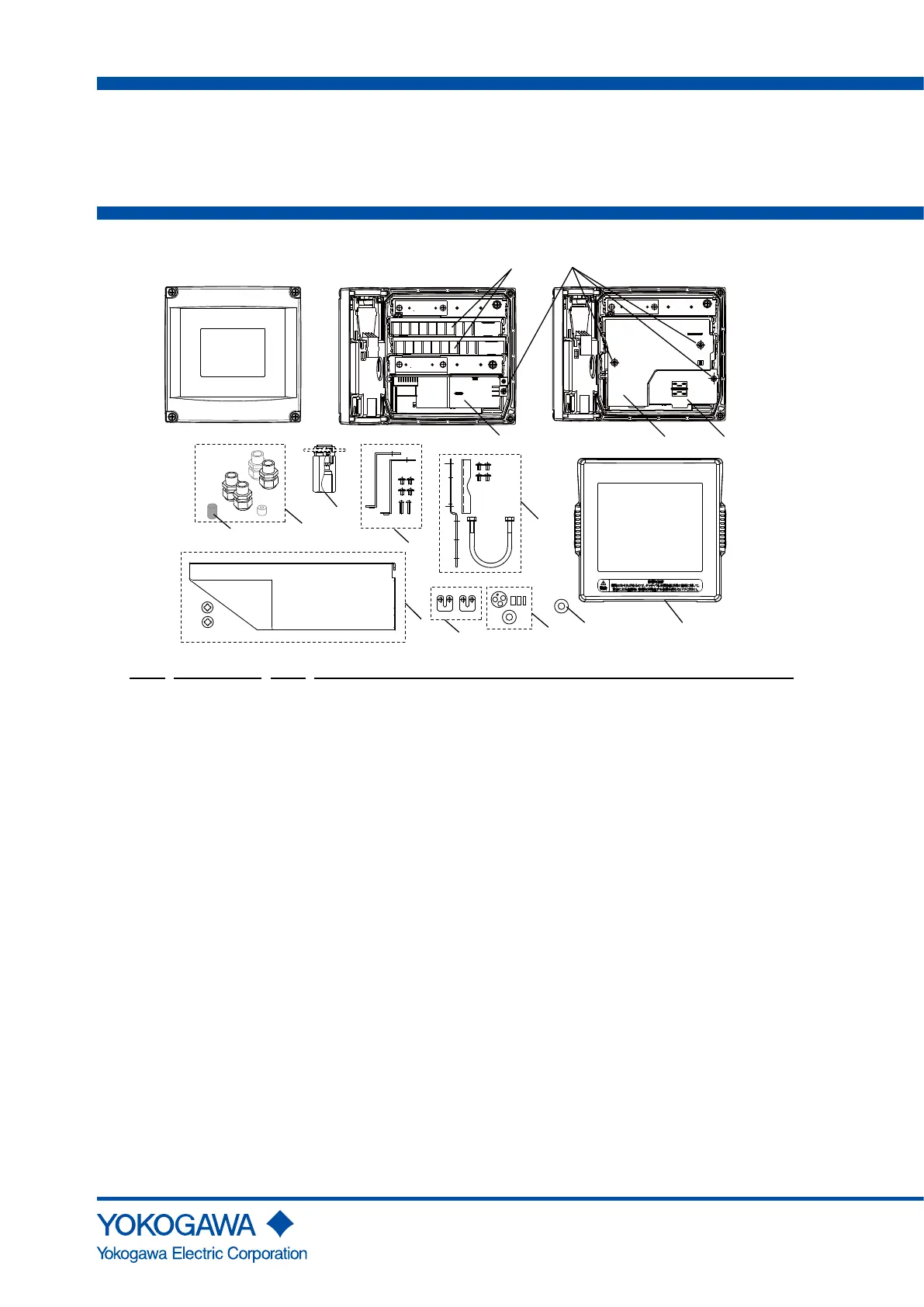

Customer
Maintenance
Parts List
FLXA21
2-Wire Analyzer
CMPL 12A01A02-01E
10th Edition: Oct. 2015 (YK)
6
8
1
2
5
4 3
15
7
12
13
14
9
10
11
Item Part No. Qty Description
1 - - Sensor module assembly, QIC sheet is included.
K9698ES 1
pH/ORP Sensor module assembly (Intrinsic safety, 12(Jumper) and 13(Grommet set) are included.)
K9698FS 1 SC Sensor module assembly (Intrinsic safety)
K9698GS 1 ISC Sensor module assembly (Intrinsic safety)
K9698HS 1 DO Sensor module assembly (Intrinsic safety)
K9698ER 1
pH/ORP Sensor module assembly (General purpose, 12(Jumper) and 13(Grommet set) are included.)
K9698FR 1 SC Sensor module assembly (General purpose)
K9698GR 1 ISC Sensor module assembly (General purpose)
K9698HR 1 DO Sensor module assembly (General purpose)
K9698JS 1
SENCOM Sensor module assembly (General purpose and Intrinsic safety, 14(Grommet) is included.)
2 - 1 Shield plate
3 - 1 Shield assembly
4 - 1 Shield plate
5 Y9304LU 4 Screw
6 - - Cable gland assembly
K9698WF 1 For plastic housing (1 sensor) (cable gland x3, sleeve x1)
K9698WA 1 For plastic housing (2 sensors) (cable gland x4, sleeve x1)
K9698ZL 1 For stainless steel housing (cable gland x3, close up plug (rubber plug) x1)
7 K9334CN 1 Rubber plug (for auxiliary component)
8 - - Conduit adapter set
K9698WC 1 G1/2 x 4pcs (option code: /CB4)
K9698WD 1 1/2NPT x 4pcs (option code: /CD4)
K9698WE 1 M20x1.5 x 4pcs (option code: /CF4)
9 K9698ZD 1 Panel mounting set (option code: /PM)
10 K9171SS 1 Pipe and wall mounting set (option code: /U)
11 - - Hood assembly
K9698WK 1 Stainless steel (option code: /H6)
K9698WL 1 Stainless steel + urethane coating (option code: /H7)
K9698WH 1 Stainless steel + epoxy coating (option code: /H8)
12 A1525JT 2 Jumper (only for pH)
13 K9676BY 1 Grommet set (only for pH)
14 K9676CL 1 Grommet (only for SENCOM)
15 K9698NF 1 Protection cover (only for TIIS)
All Rights Reserved. Copyright © 2010 Yokogawa Electric Corporation.
Subject to change without notice.
