4.3.2 Model code
The model code of the Rotamass Total Insight is explained below.
Items 1 through 14 are mandatory entries and must be specified at the time of ordering.
Device options (item 15) can be selected and specified individually by separating them
with slashes.
- - - - /-
RC
1 2 3 4 6 75 9 10 11 12 13 14 158
1. Transmitter
2. Sensor
3. Meter size
4. Material wetted parts
5. Process connection size
6. Process connection type
7. Sensor housing material
8. Process fluid temperature range
9. Mass flow and density accuracy
10. Design and housing
11. Ex approval
12. Cable entries
13. Communication type and I/O
14. Display
15. Options

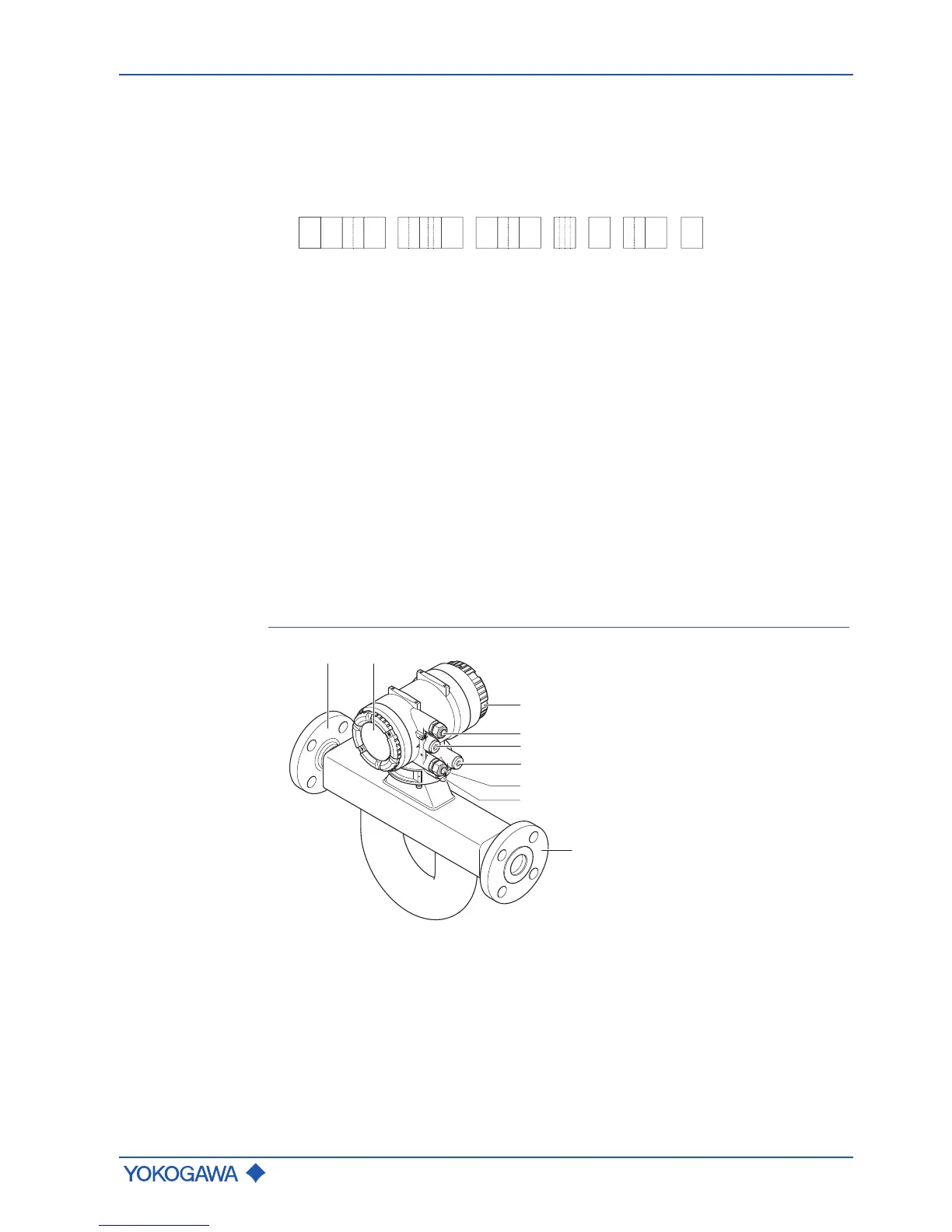

4.4 Flow meter components
Integral type
4
5
2
5
1
5
1
3
6
1 Process connections
2 Back cover for inputs and outputs, and power supply
3 Display cover
4 Power supply cable entry
5 Blind plug
6 Inputs/outputs cable entry
