YOKOGAWA ROTAMASS Total Insight User Manual

Transmitter
General Instruction Manual
Wiring
IM 01U10B00-00EN-R, 3rd edition, 2018-07-09
51 / 90
7.4 Transmitter
7.4.1 Connection terminals
WARNING
Risk of injury from electrical shock due to inadequate grounding
▶ Use grounding screw to connect the grounding conductor.
▶ Use an M4 ring-type or forked cable lug for the grounding conductor of the connect-
ing cable.
L/+ N/-
3
1
4
2
8
7
6
5
9

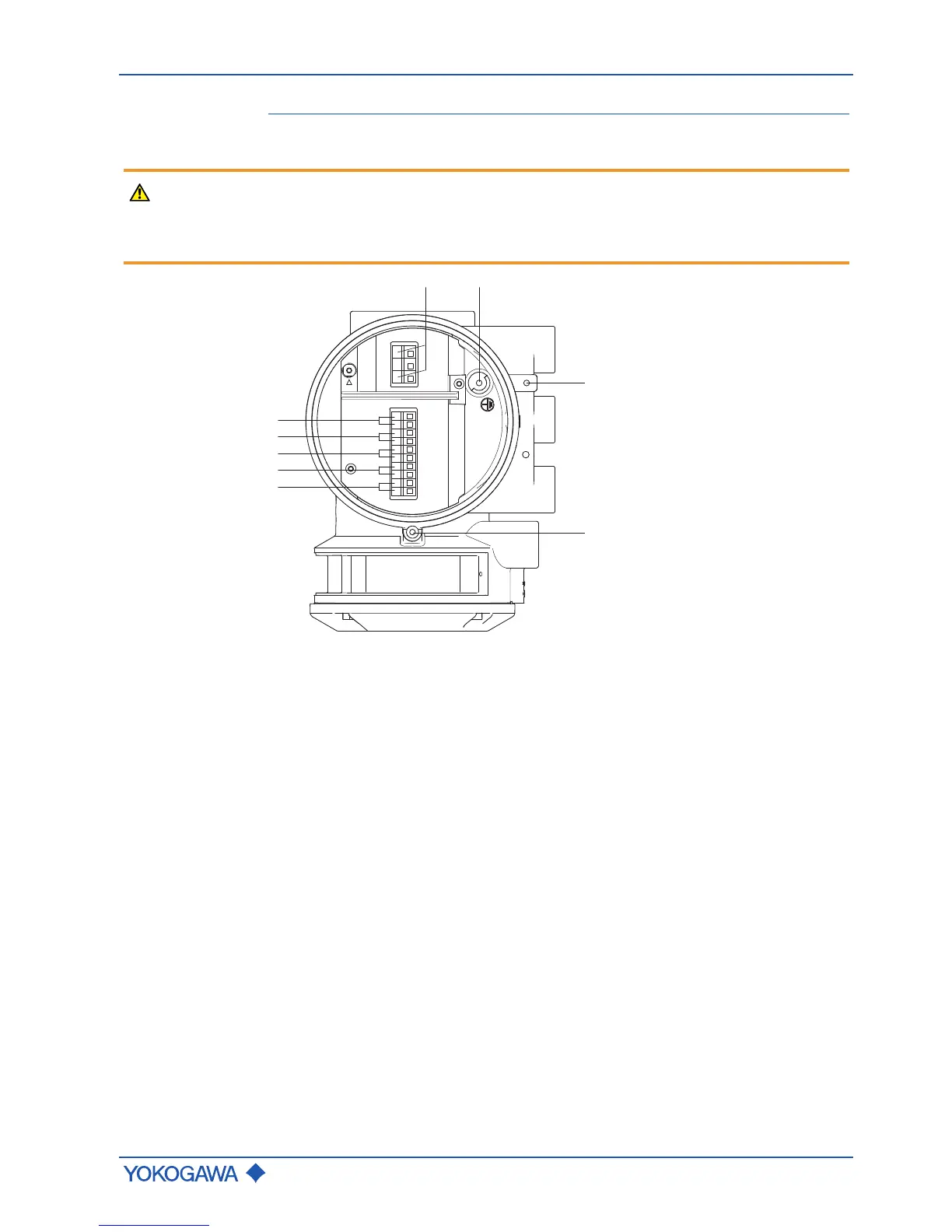

Fig.35: Terminal box for I/O outputs and transmitter power supply
1 Power supply connection terminals 6 Connection terminals for I/O2 +/-
2 Grounding screw for connecting
grounding conductor
7 Connection terminals for I/O3 +/-
3 Grounding terminal for potential
equalization
8 Connection terminals for I/O4 +/-
4 Locking screw 9 WP: Write-protection terminal
5 Connection terminals for I/O1 +/-
