7.2 Grounding connections and sensor circuits
WARNING
Risk of injury from electrical shock due to inadequate grounding
▶ Perform potential equalization at the grounding terminals provided for this purpose
according to the figure “Grounding connections on transmitter and sensor”.
3
2
1

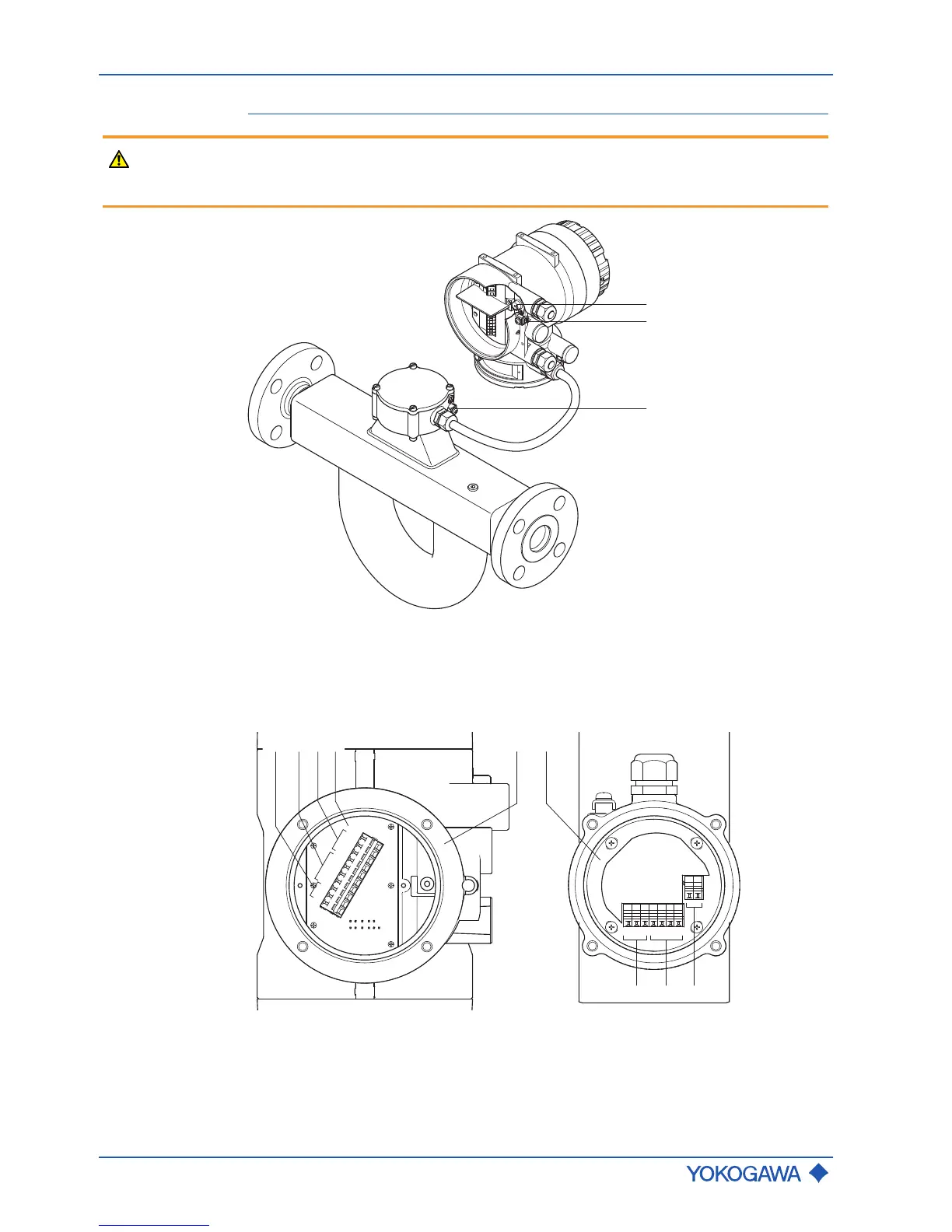

Fig.27: Grounding connections on transmitter and sensor
1 Grounding screw in transmitter terminal box for grounding conductor
2 Grounding terminal on transmitter for potential equalization
3 Grounding terminal on sensor for potential equalization
D + D -
S1 + S1 - S2 + S2 - TP1 TP2 TP3
D +
D -
S1 +
S1 -
S2 +
S2 -
TP1
TP2
TP3
COM
3 2 1
1 2 3 4 5 6
Fig.28: Connection terminal circuits (transmitter on the left side, sensor on the right side)
1 Driver circuit (D+/D-) 4 Signal grounding
2 Sensor circuits (S1+/S1-, S2+/S2-) 5 Transmitter
3 Temperature measurement circuit
(TP1, TP2, TP3)
6 Sensor
