Installation instructions
General Instruction Manual
Installation
IM 01U10B00-00EN-R, 3rd edition, 2018-07-09
25 / 90
3-A compliant installation
Remote transmitter
installation
▶ For compliance with 3-A sanitary standards, remote transmitter is restricted to hang-
ing installation, as shown in figure below.
NOTICE
Fixation of the transmitter
For fixation of the transmitter at the bracket either hexagon head srews (M6x10) or socket
head screws with rubber cap must be used.

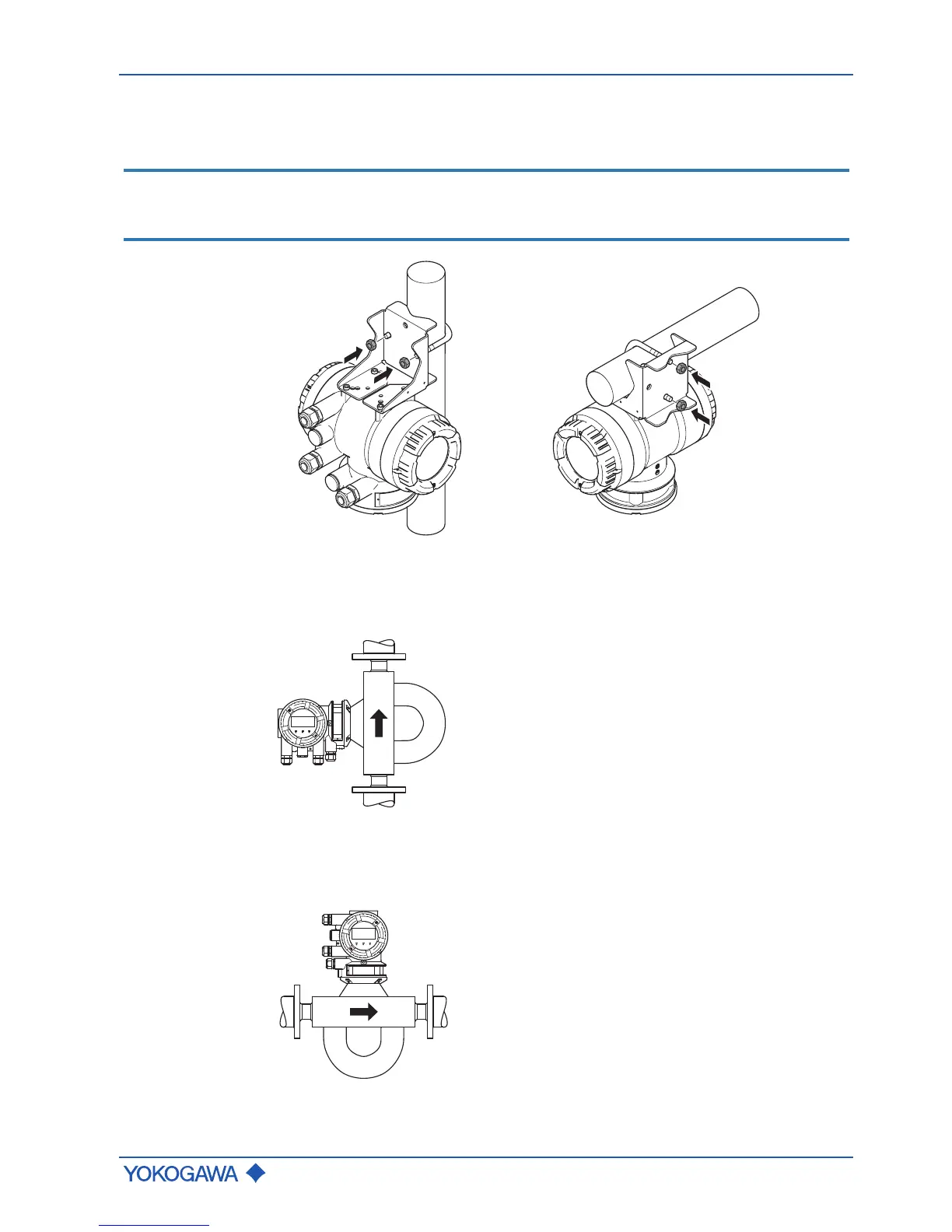

Fig.16: Hanging installation for remote transmitter
Sensor installation
(remote or integral
version)
▶ For compliance with 3-A sanitary standards, a vertical installation of sensor with fluid
flowing upwards (self-draining) is recommended, as shown in figure below.
Fig.17: Vertical (self-draining) installation
▶ A horizontal installation of sensor with tubes down, as shown in figure below, shall be
drained via air purge.
Fig.18: Horizontal installation with tubes down
