General Instruction Manual
Installation
Transmitter installation
40 / 90
IM 01U10B00-00EN-R, 3rd edition, 2018-07-09

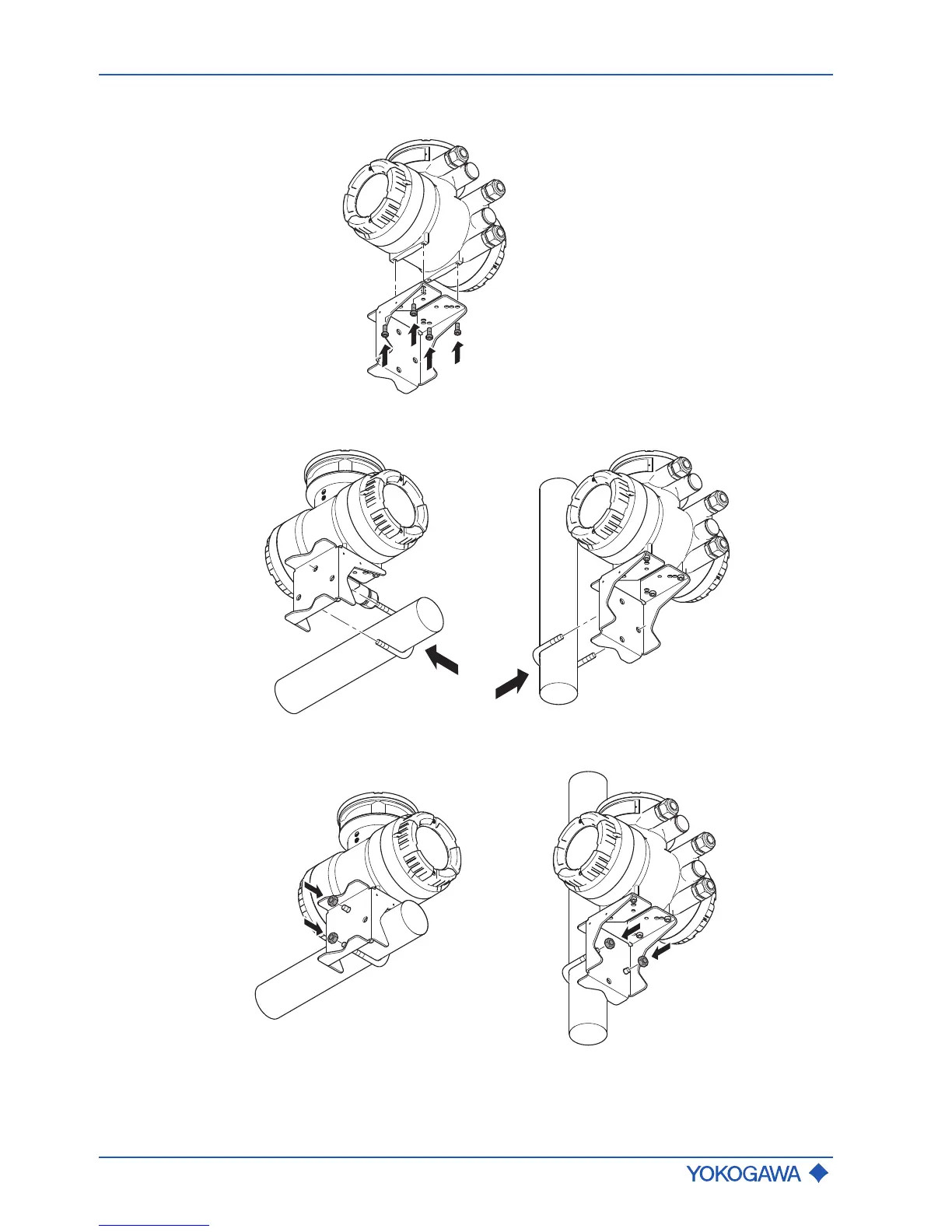

1. Screw angle bracket to bottom of transmitter.
2. Place retaining clip around pipe and slide through drill holes on angle bracket.
3. Fasten retaining clip to bracket using the nuts.
