100-120 VA ,

TM1

220-240 VA

100-120 VA ,

TM1

220-240 VA

PSU

CN1 FUSE

CN2

PSU

Power supply input terminal

Fuse

Power supply output terminal

Power supply unit for fan unit

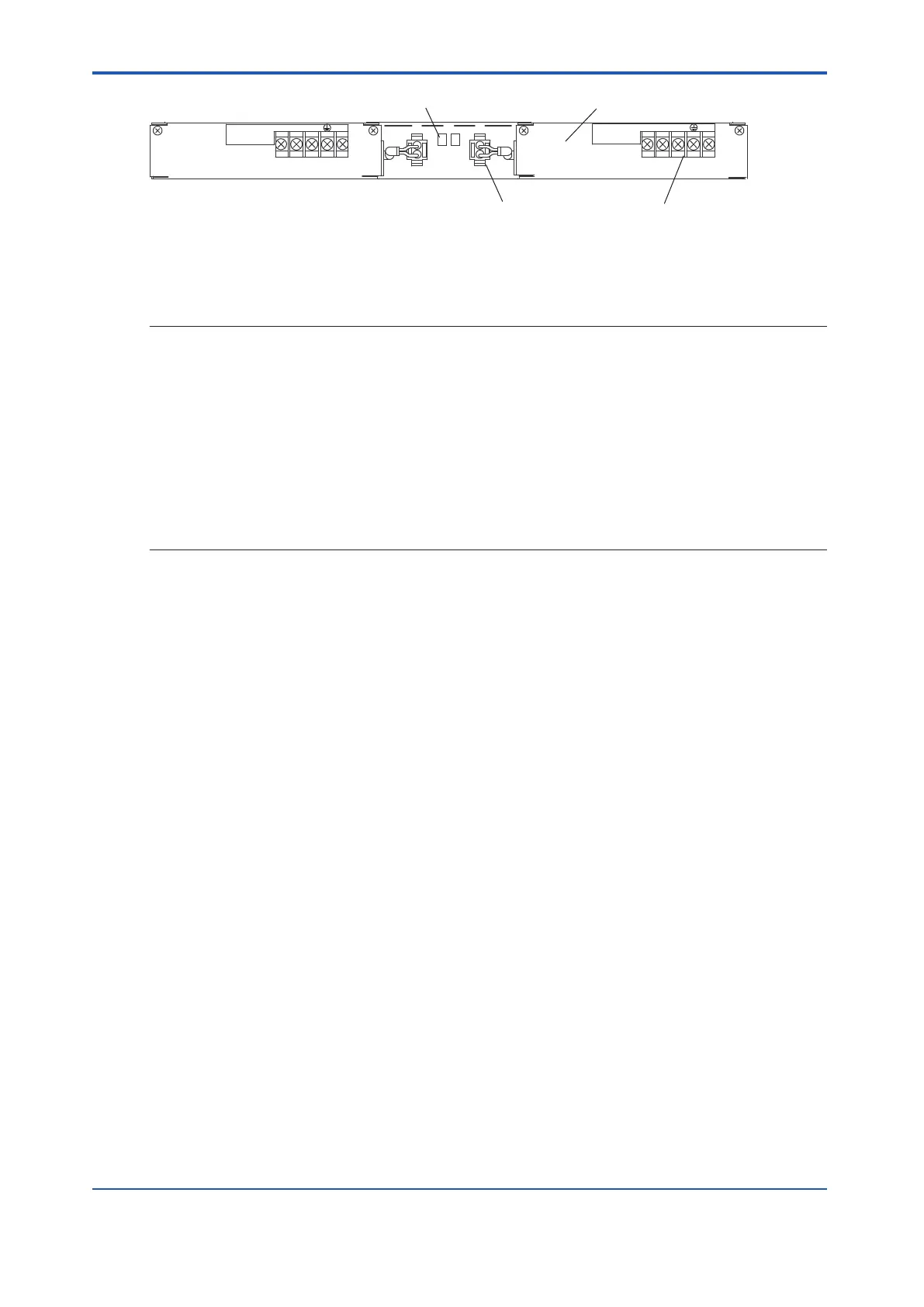

Figure 4.8-3 Power Supply Unit for Fan Unit

Fuse for Fan Power Supply Unit

A fuse is used for protecting the power supply unit for fan unit.

SEE

ALSO

For more information about replacing fan unit, refer to:

7.7.2, “Replacing Node Fan Unit” on page 7-37

For more information about replacing fuse for fan power supply unit, refer to:

“n Replacing Fuse for Fan Power Supply Unit” on page 7-38

For more information about replacing power supply unit for fan unit, refer to:

“n Replacing Power Supply Unit for Fan Unit” on page 7-38

For more information about connecting power cable for power supply unit for fan unit, refer to:

“l Connecting Power Cable to Power Supply Unit for Fan Unit” on page 3-4

<4.8 Node Fan Unit > 4-24

IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
