5.1 Configuration of Input/Output Module
Connections
How to connect field devices to the I/O modules is explained.
n
Signal Cable Connection Methods
For saving the wiring space or for standardizing the instrumentation style, the following meth-
ods can be applied.
•
Direct connection using pressure clamp terminals
When connecting field device signal cables directly to the I/O modules, use pressure
clamp terminal blocks.
• Connector connection using signal cables via terminal boards
When connecting field devices to I/O modules via terminal boards, signal cable interface
adapters are required.
• Connection via MIL connectors
Use MIL cables (prepared by user) to connect to I/O modules directly.
In the following figure, the parts within the dotted line are provided by Yokogawa.
CN1
CN2
CN3
CN4
1A
1B
2A
2B
18A
18B
17A
17B
16A
16B
TM1
TM2
MIL connector cover
Pressure clamp
terminal block
Field cable
I/O module
I/O module
with signal cable
interface adapter
Signal cable
Signal cable
Field cable
Terminal board
Terminal board

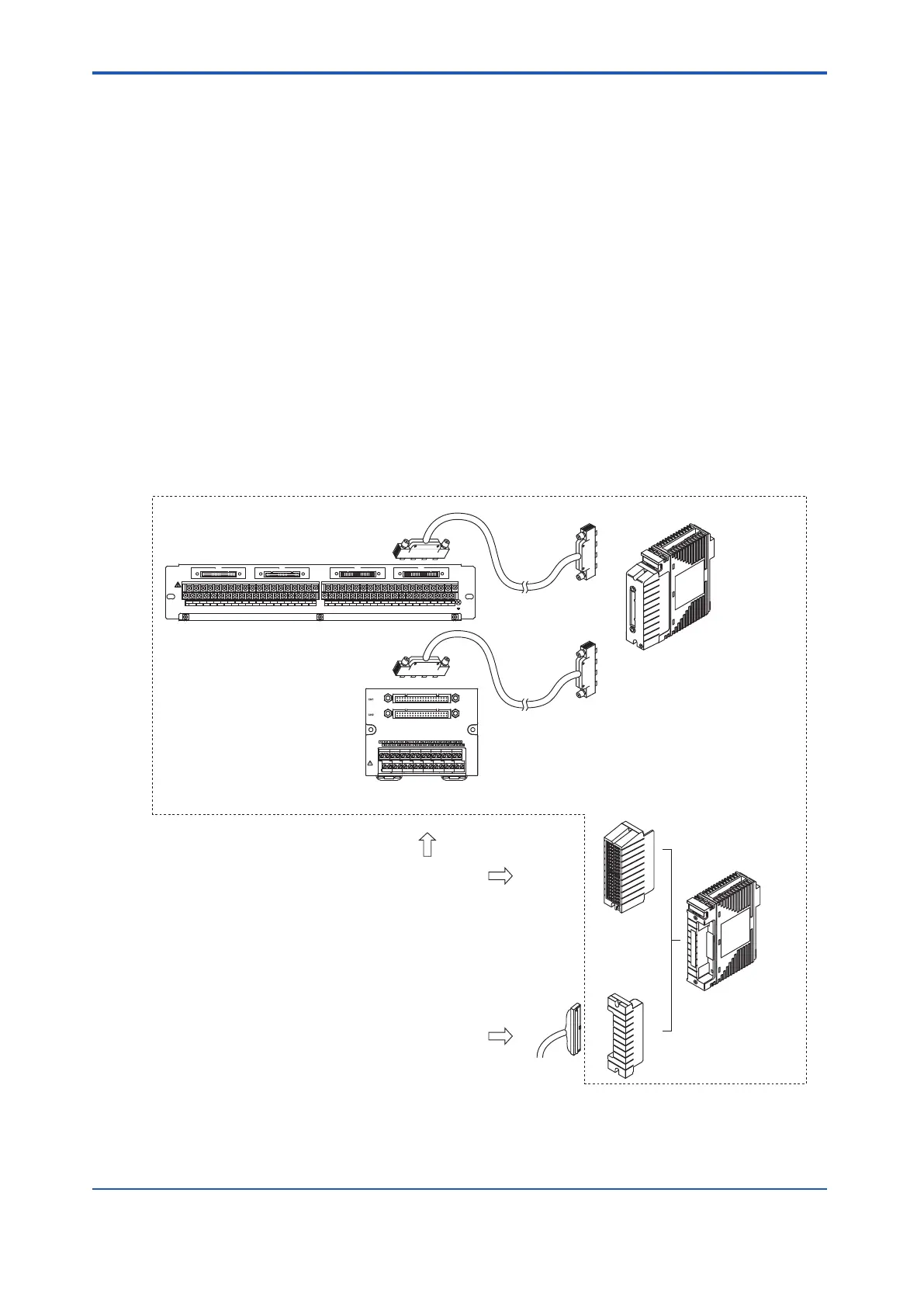

Figure 5.1-1 Signal Cable Connection Methods
<5.1 Configuration of Input/Output Module Connections > 5-2
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
