Digital Output Module : SDV53A
The following figure shows a connection to a 19-inch rack mountable terminal board.
OUTn
COMn
OUTn
48V DC
COMn
COM
48V DC
48V DC
COM
CBSE
CBSE
CBSE
CBSE
CBSE
Digital output module
Load
Signal cable
T
erminal board
n : channel number
Figure 5.6-1

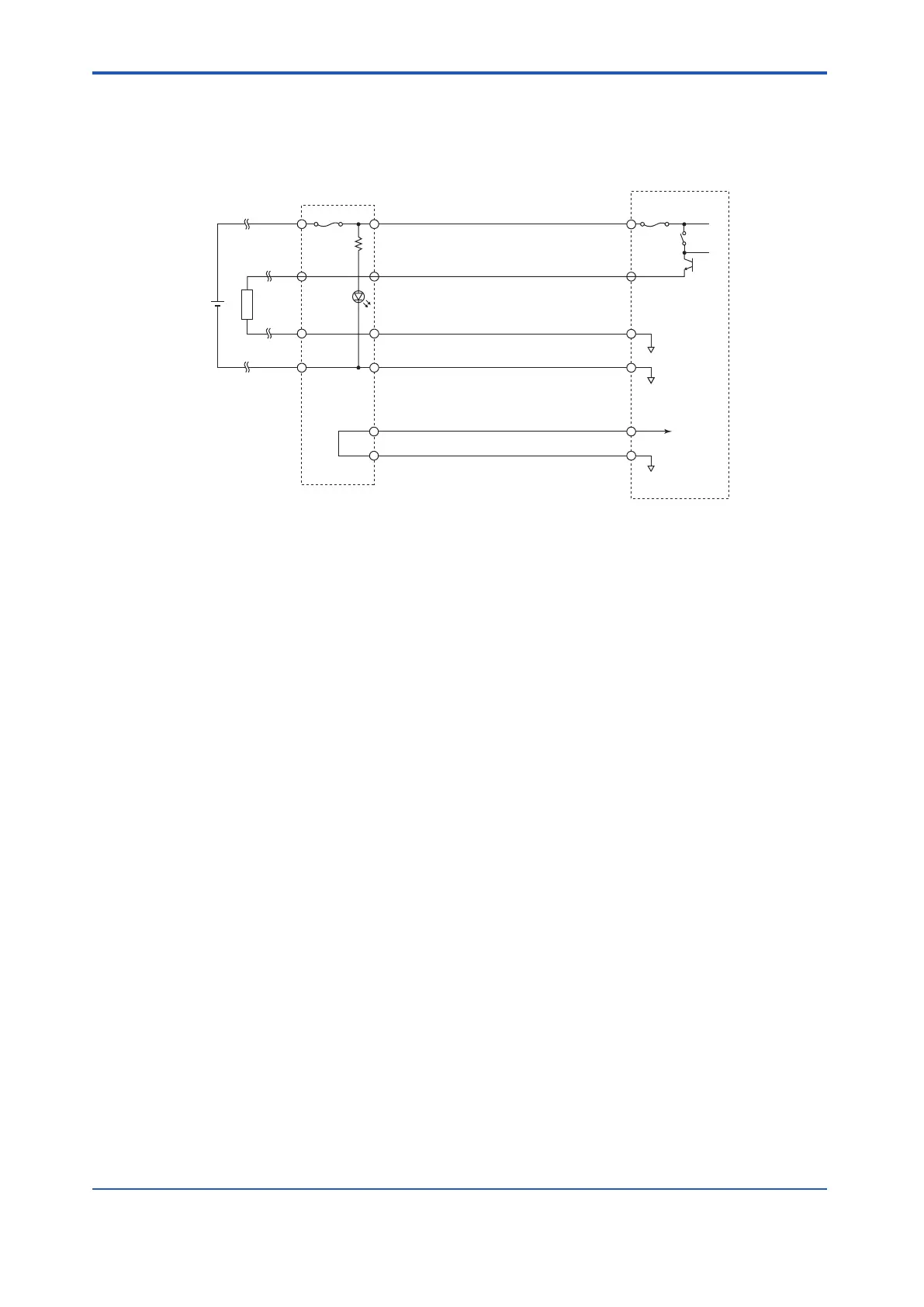

1 SDV53A Circuit Diagram
The following figure shows a connection to a DIN rail mountable terminal board.
<5.6 Circuit Diagrams of Input/Output Modules >
5-53
IM 32Q06C10-31E
4th Edition : Jan.30,2015-00
